The Spirit Fitness CSC900 StairClimber is a great way to get a challenging yet rewarding workout. A sturdy industrial drive system ensures years of reliable, trouble-free service. The drive method, from steps to brake, is chain connected to steps driving an electromagnetic induction brake by poly-v belt transmission. The 21.5" step width and 11" step depth provide one of the largest step surface areas of any machine, which increases safety while also easily accommodating training positions such as side crossover steps. The CSC900 has 11 pre-programmed workouts, 20 levels of resistance, and speeds up to 160 steps per minute to help you keep your fitness routines challenging. The multi-position handlebars include built-in hand pulse grips and resistance controls to help you stay in the zone.
Key Features:
- Multi-Window Display
- 20 Resistance Levels
- 8” Step Height
- Handlebar Controls
Key Feature Details:
- Large step surface area compared to other commercial machines
- 20 levels of resistance and up to 160 steps per minute
- Durable steel frame with ABS-lined steps
- Built-in 2-speed cooling fan and accessory holder
- Hand pulse grips, resistance controls, and handlebar controls

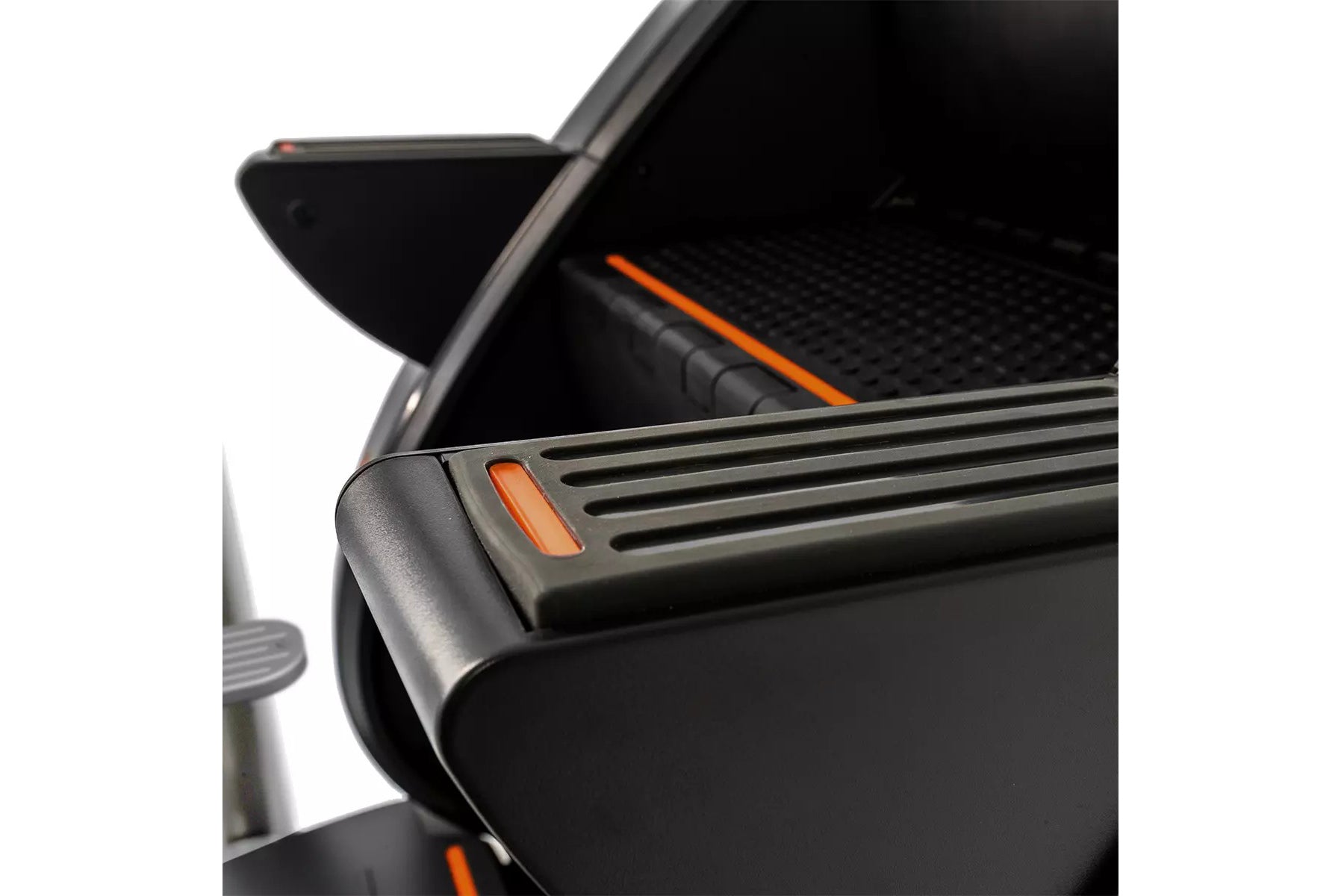

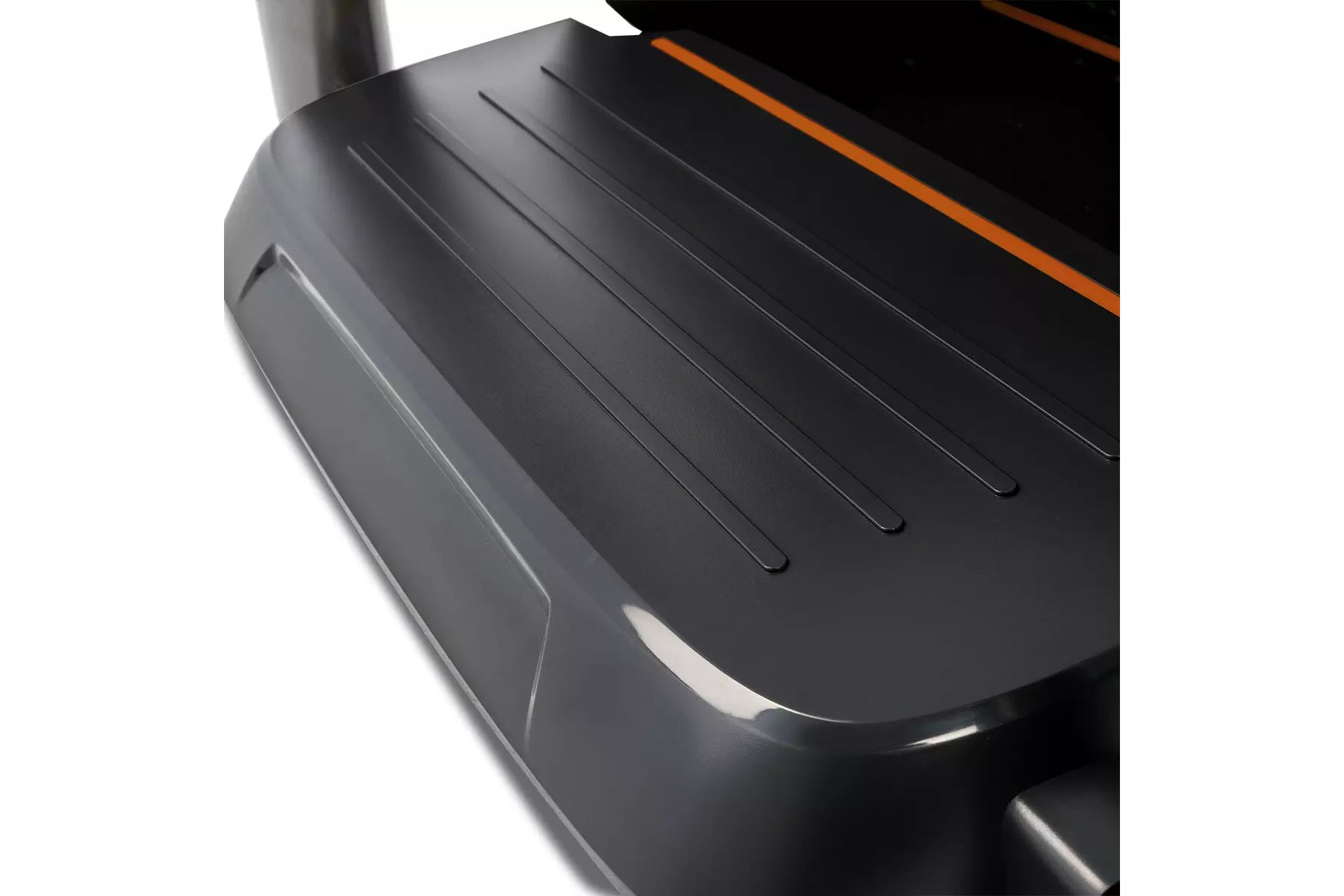

Large Step Size
The 236 square inch (21.5” x 11”) step surface is among the largest stepping surface areas of any commercial stair-stepping machine.

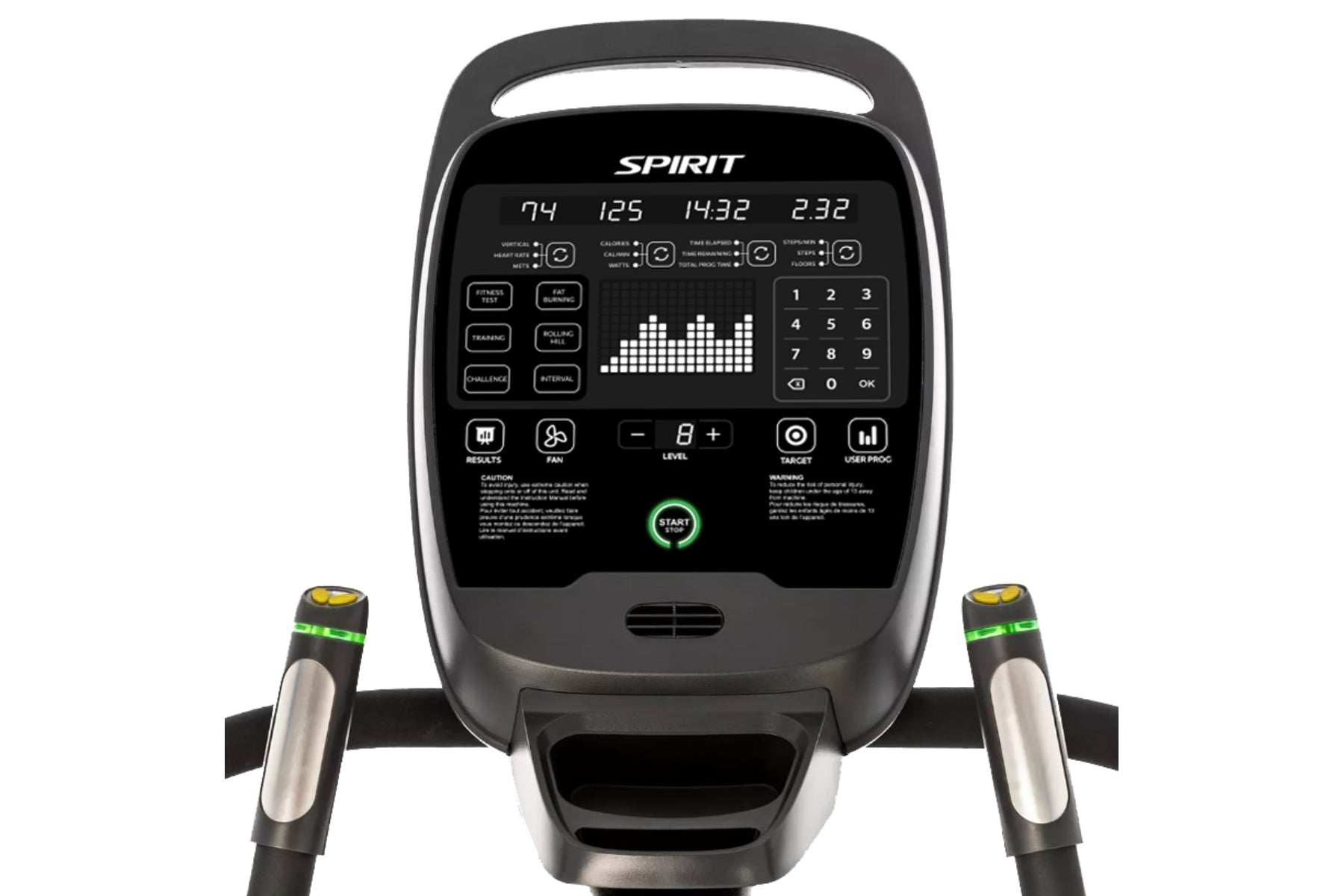

Efficient Console
Multi-window bright white LED display with built-in fan, integrated tablet rack, and space for accessories.
Handlebar Controls
Hand pulse grips, resistance controls, and start/stop/pause button on handlebars allow for quick adjustments on the fly.
Padded Handrails
Padded handrails surround the user for a secure and stable workout.

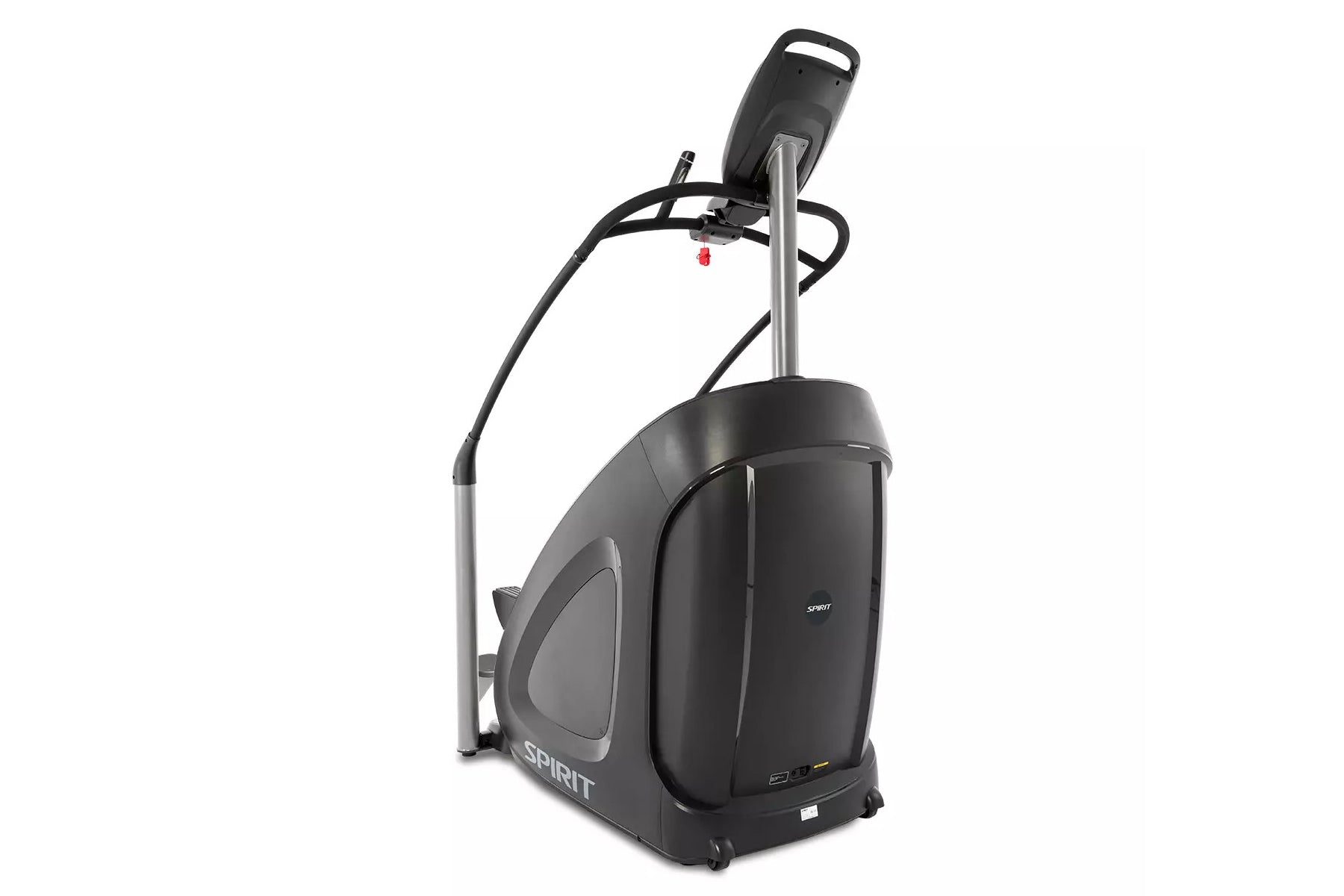

Durable Frame
Featuring a durable, commercial-grade steel frame, ABS shrouds, and maintenance access panels, the CSC900 is built to withstand the test of time.
Challenging Programs
11 pre-programmed workouts keep users engaged, while 20 levels of resistance and speeds up to 160 steps per minute help keep your fitness routines challenging.
CSC900 Stairclimber Console
- Display: 6 LED Windows
- Display Size: 3.75” diagonal
- Feedback: Program, Level, Vertical Distance, Heart Rate, METS, Calories, Calories per Minute, Watts, Time , Steps per Minute, Steps, Floors
- Programs: Warm Up, Fat Burning, Training, Rolling Hills, Challenge, Interval, Target (3 options), User Program (User Custom Designed Program)
Dimensions
Set-Up Dimension | 64" L x 38" W x 83" H |
Preassembled Width Without Handrails | 32.7" |
Box Dimension | 64" L x 56" W x 44" H |
Item Weight | 520 lb |
Box Weight | 720 lb |
Max User Weight Capacity | 400 lb |
Performance
| Motor | Alternator 12V/37A |
Power | 120V/15A Cord/Outlet |
Drive System | Chain and Poly-V Belt with Electromagnetic Induction Brake |
Speed Range | 25 – 160 Steps per Minute |
Resistance | 0 - 20 Levels of Magnetic Resistance |
Frame
Frame | Commercial-Grade Steel Frame with Plastic Coverings |
Stair System | 8 Total Steps with ABS Lining |
Step Area | 21.5" L x 11" W x 8" H |
| Ground to First Step Height | 12.2” |
| Platform to First Step Height | 9" |
| Between Step Height | 8” |
| Step Depth | 11” |
| Ceiling Requirement | 10 ft Minimum Ceiling Height Recommended |
| Handrails | Steel Handrails with Durable Grip Coating |
Convenience
Handlebar Controls | Yes |
Hand Pulse Sensors | Yes |
| Bluetooth Heart Rate Receiver (Chest Strap Sold Separately) | Yes |
| Emergency Stop | Yes |
| Reading/Accessory Rack | Yes |
| Cooling Fan | Yes |
| Transportation Wheels and Levelers | Yes |
US Commercial Warranty
|
Frame
|
10 Years
|
|
Brake
|
5 Years
|
|
Parts
|
3 Years
|
|
Labor
|
3 Years
|
|
Wear Items
|
6 Months
|
*Prisons and correctional facilities are excluded from warranty coverage.
