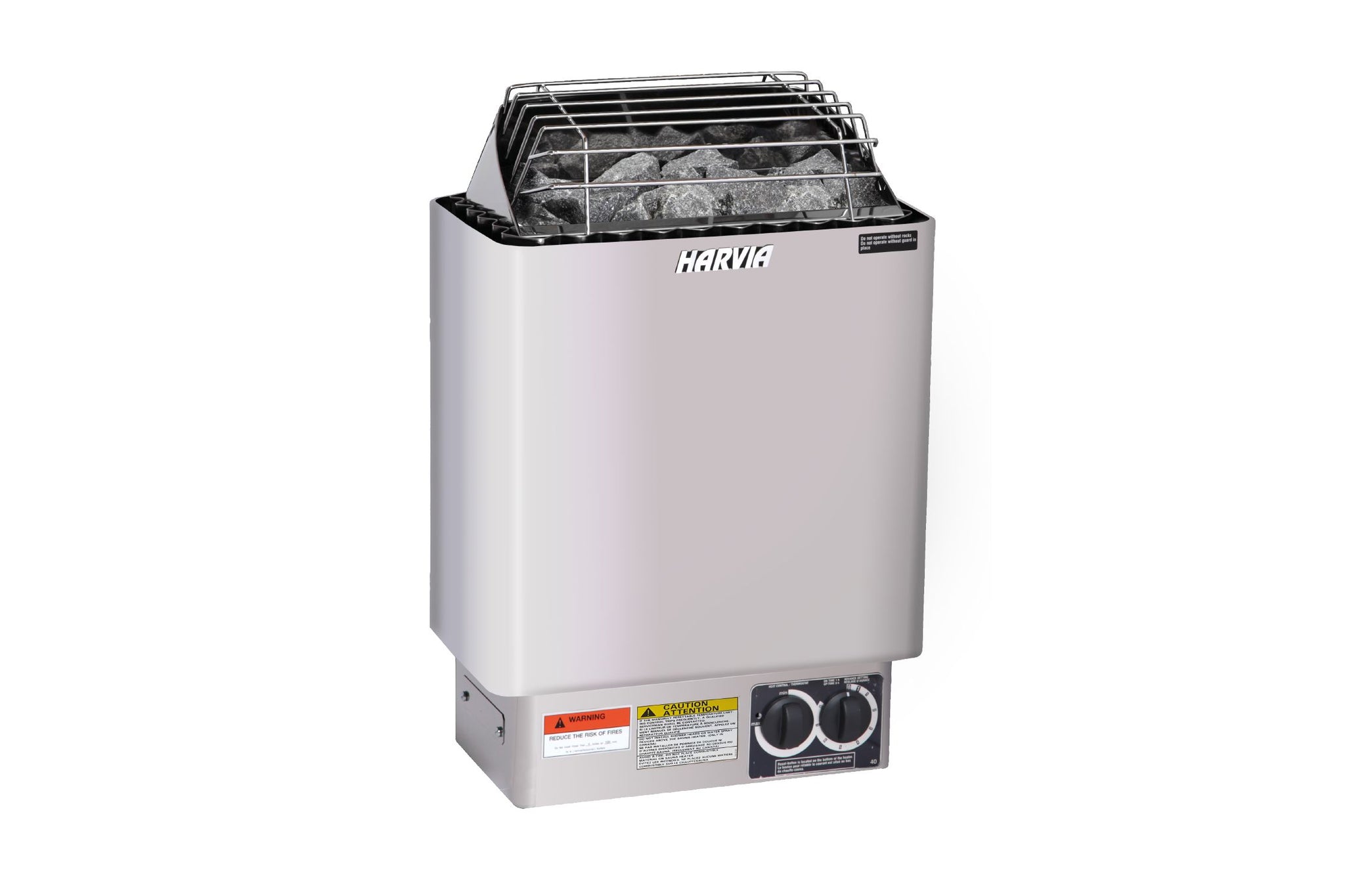

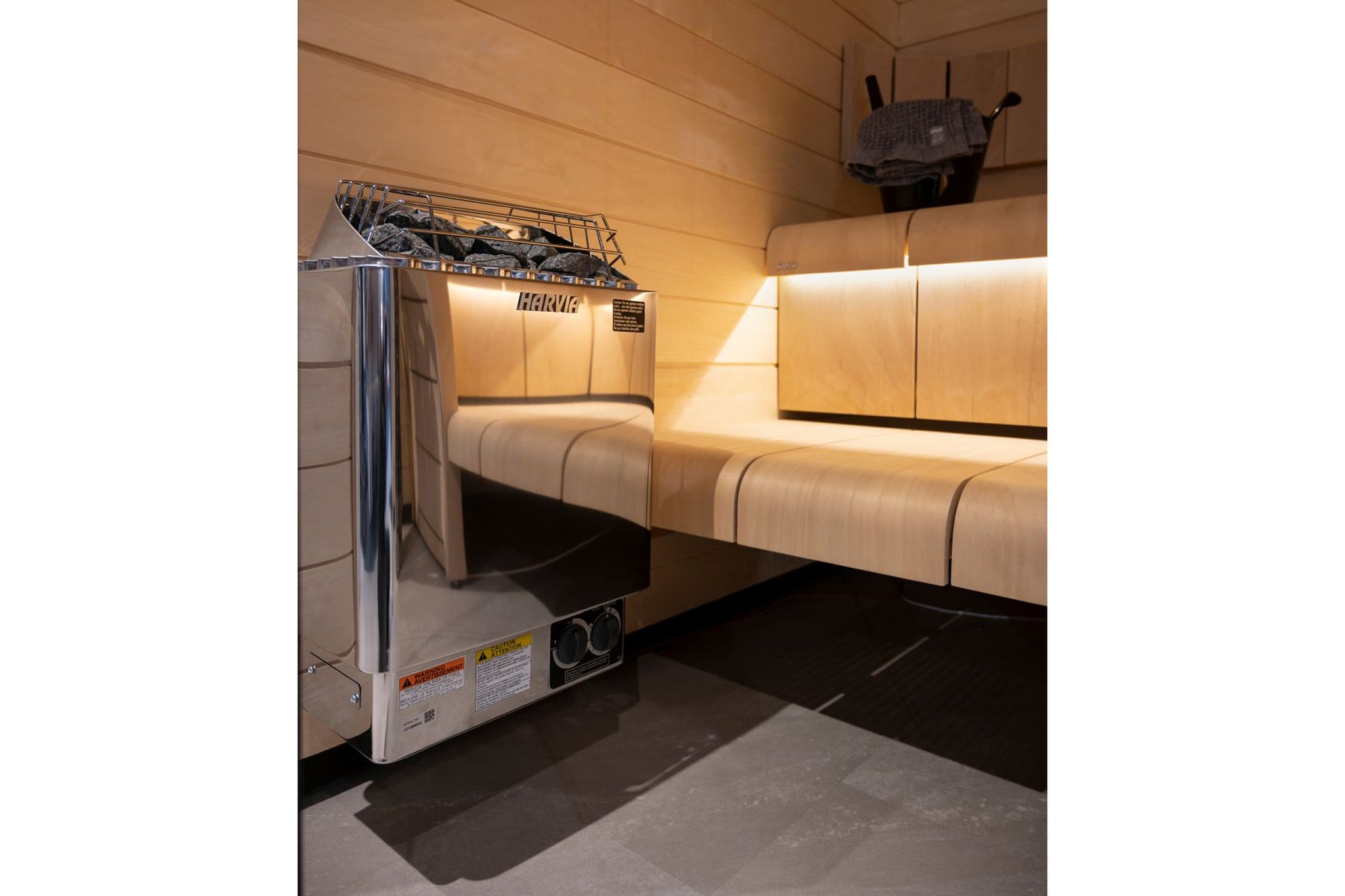

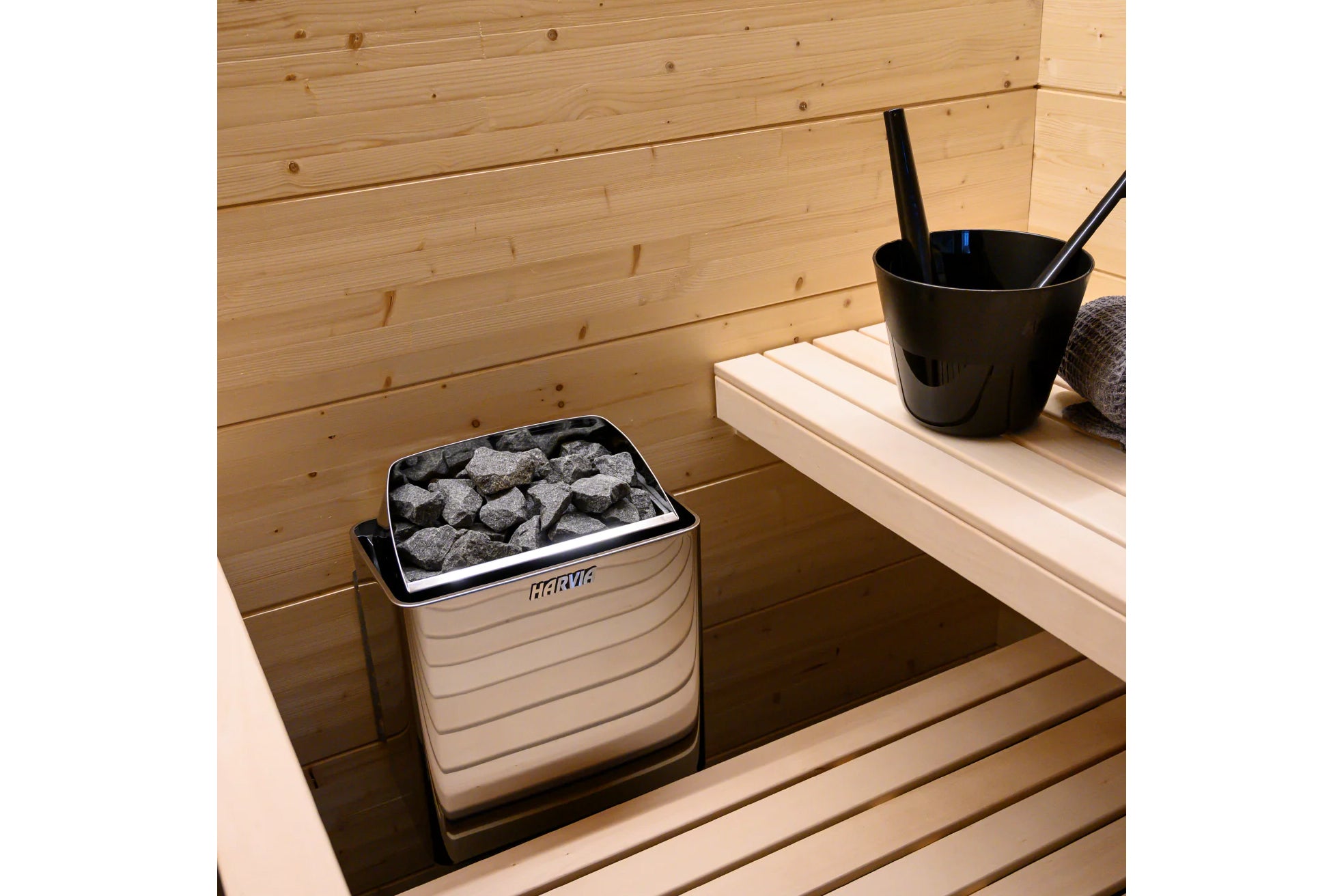

The Harvia KIP heater is a traditional wall-mounted sauna heater with built-in controls. The heater is constructed with stainless steel and includes a protective stone guard. The heater has a large stone cavity for maximum heat release, and the dual wall construction allows the exterior to remain cool to the touch. The left dial controls the temperature and the right dial is the on/off control along with a delay timer. You can set the heater to turn on up to 8 hours after it is set, and the heater will automatically shut off after 60 minutes of operation.
Key Features:
- Wall-mounted design
- Stainless Steel construction
- Built-in time and temperature dial controls
- 1-hour timer
- Up to 8hr delay timer function
Best Kilowatt Heater for Sauna Size
- 3kW: Up to 130 cu. ft.
- 4.5kW: Up to 250 cu. ft.
- 6kW: Up to 300 cu. ft.
- 8kW: Up to 430 cubic feet
*Sauna Heaters are not sold separately - a sauna must be purchased in conjunction with the purpose of any sauna heater or sauna heater package.
Features:
- Optimally heats sauna spaces from 170 to 300 cu. ft., making it ideal for home and small commercial use.
- 6kW output ensures fast and thorough heating performance.
- Space-efficient wall-mounted design with integrated control panel for temperature and timer settings.

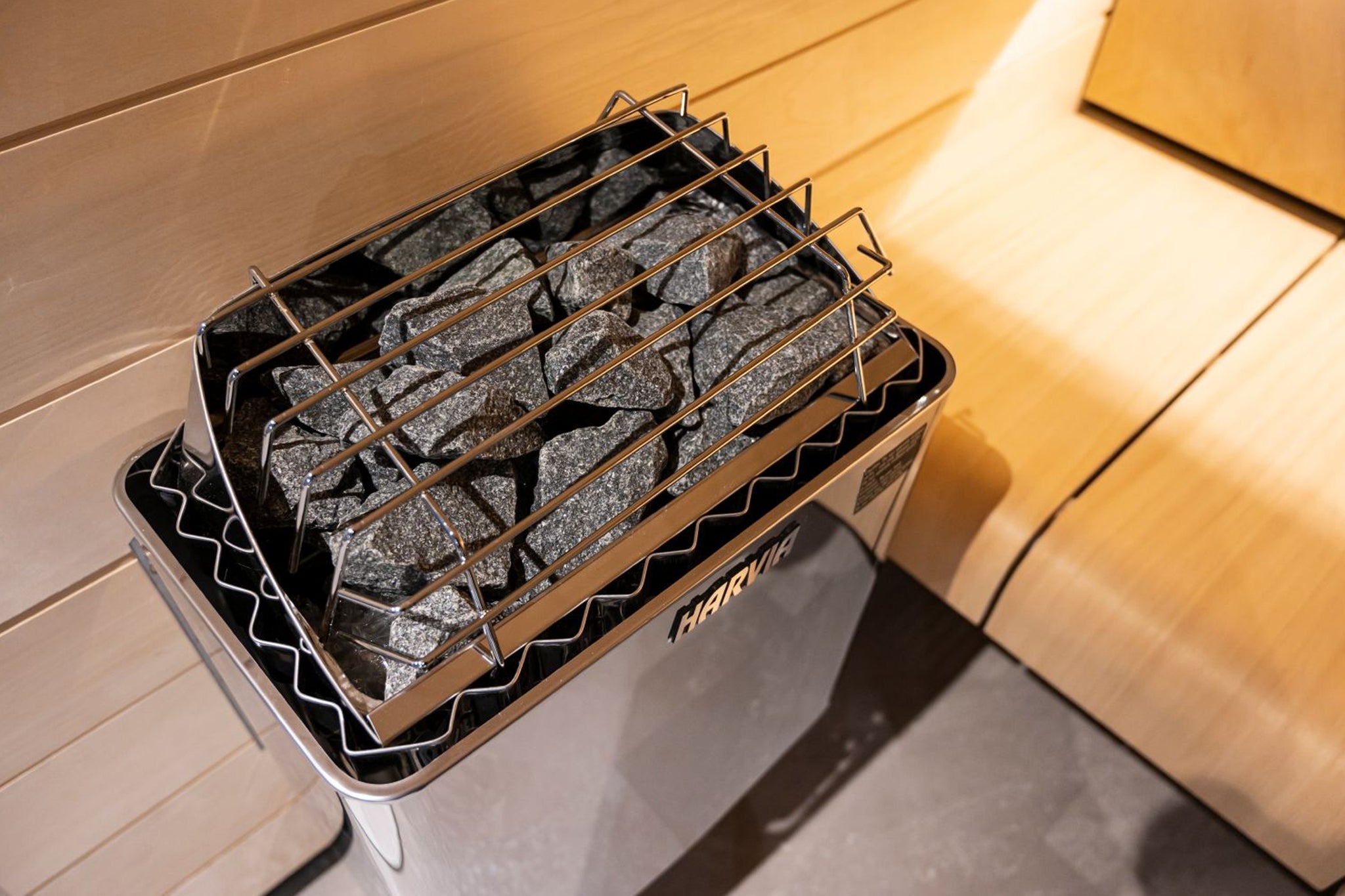

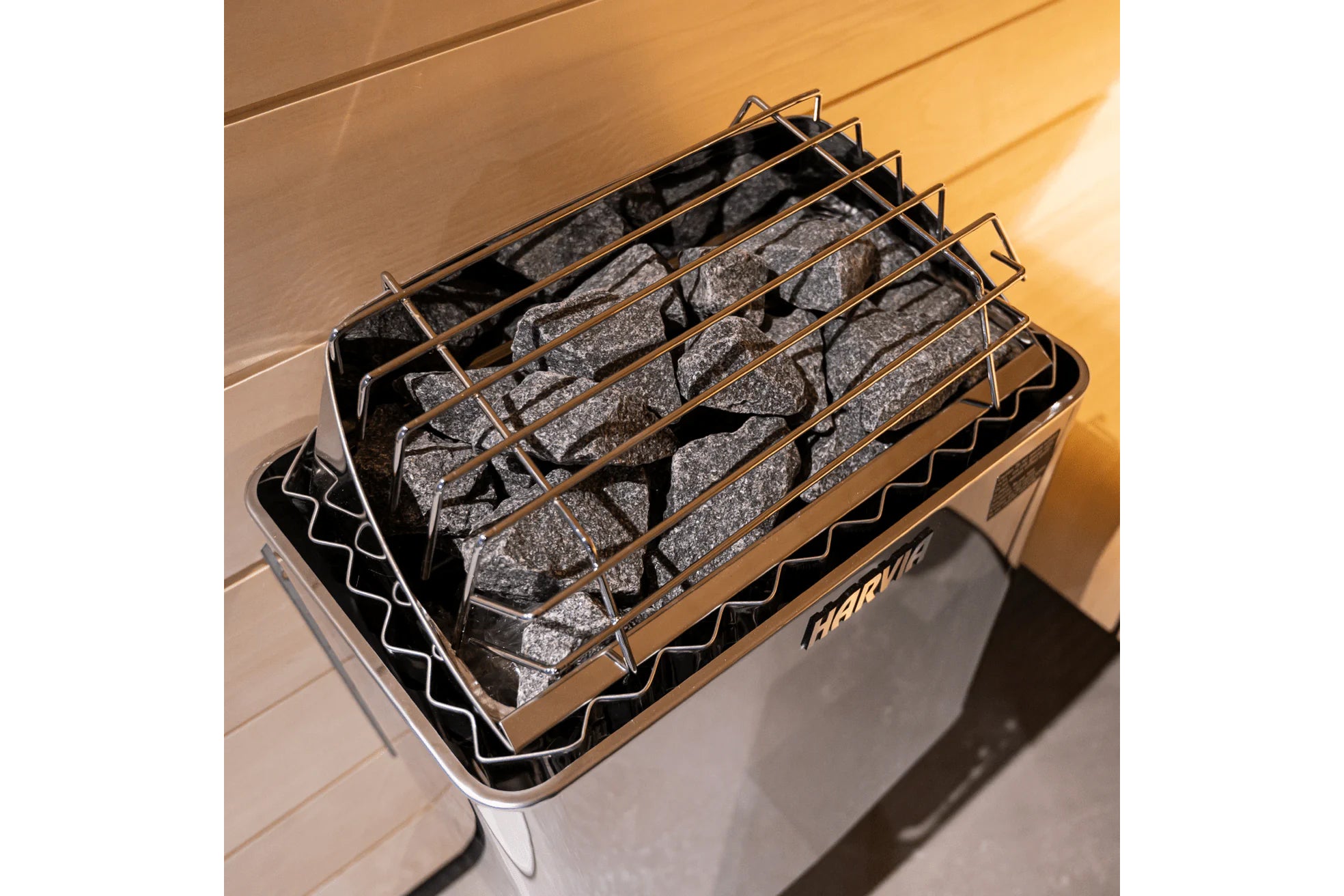

- Accommodates up to 50 lbs of sauna stones (Box AC3000 recommended; sold separately).
- Direct rock-to-element contact supports robust, radiant heat and high-quality steam output.
- Stainless steel housing provides corrosion resistance and a modern look while helping reduce surface heat.
- Built using industrial-grade, serviceable components for long-term reliability.
- UL Listed and compliant with safety standards for peace of mind.
- Designed, engineered, and manufactured in Finland.
Sauna Control
The Harvia KIPB features integrated controls that make operating your sauna heater a breeze. The built-in control panel is conveniently located at the base of the unit, allowing for easy access and adjustment.
With simple dials, you can effortlessly set the temperature and timer, ensuring the perfect sauna experience every time. The KIP also offers a preset startup delay of up to 8 hours, so you can have your sauna ready when you are.
Design
The Harvia KIP is a wall-mounted electric sauna heater designed for efficiency and ease of use. Crafted from durable stainless steel, it features a sleek design that seamlessly integrates into any sauna environment.
Sauna Sizing
The Harvia KIP60B requires specific electrical connections to operate efficiently. For the 240V/1PH configuration, you will need a 30 Amp circuit breaker and 10 AWG wire. If you opt for the 208V/3PH setup, a 20 Amp circuit breaker and 12 AWG wire are necessary.
Delivery
The Harvia KIP is shipped as a package via UPS. Once your order is on its way, you will receive a tracking number to monitor its progress.
All shipments are fully insured for your peace of mind. Shipping is free to all continental U.S. addresses, and the compact design allows for convenient door-to-door delivery. If you require express shipping options, please don’t hesitate to contact us for more information. If you're located in Canada, we can provide a separate shipping quote as well.

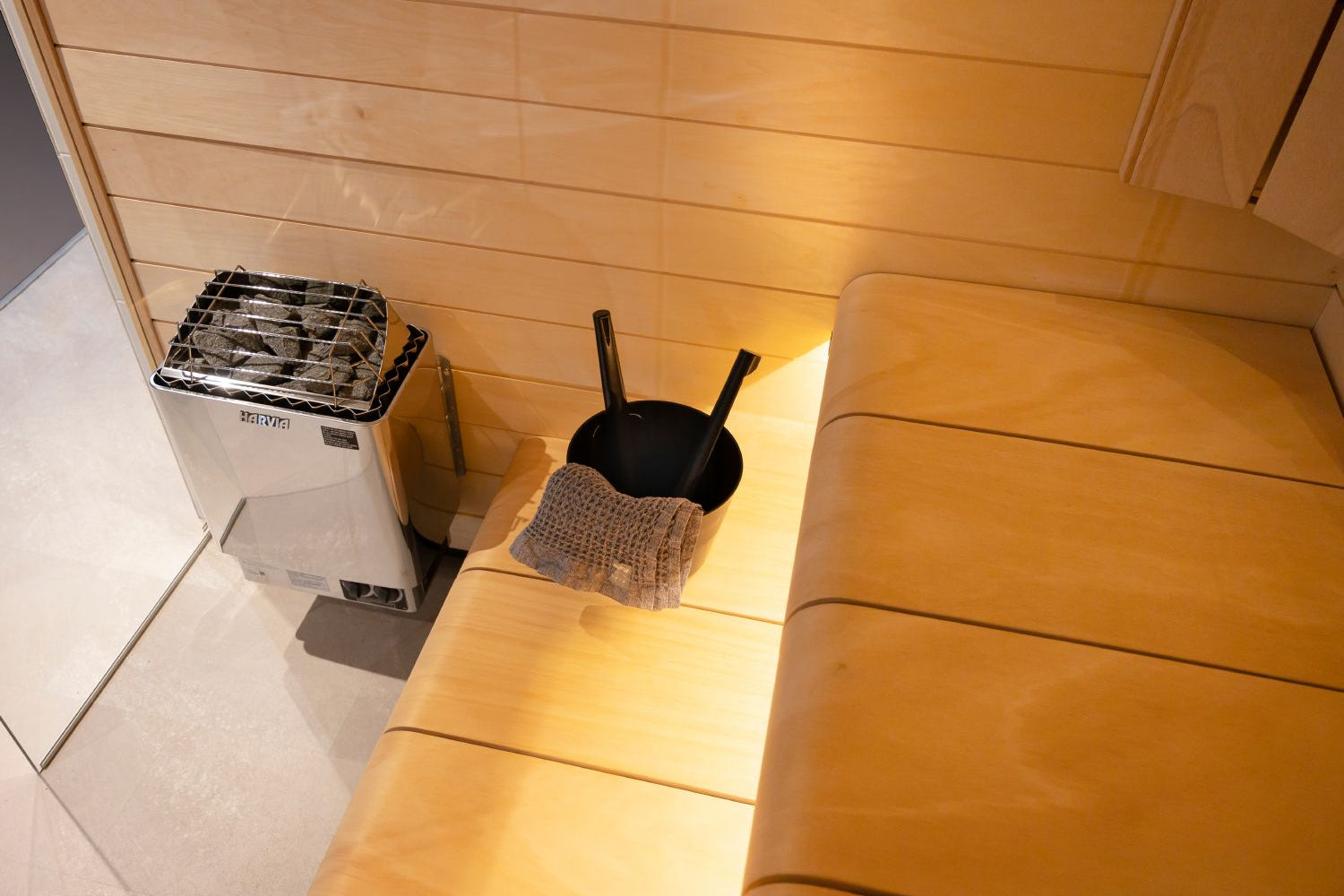

Heater Placement

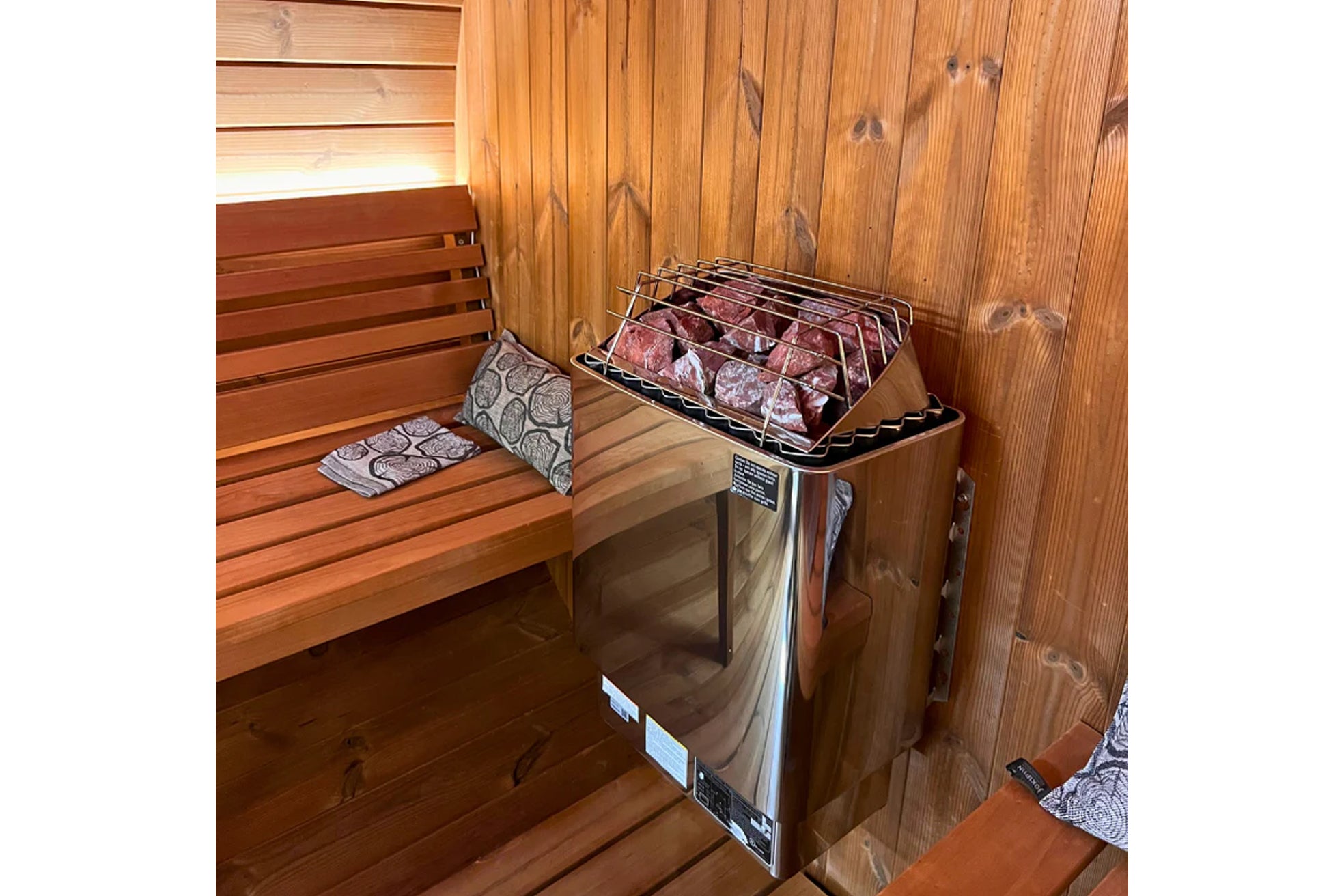

This heater offers flexible installation options, allowing you to mount it on the wall in your sauna for optimal space utilization. Its compact design lets you position it conveniently, whether you prefer it near the door for easy access or tucked away to maximize room space.
Electrical Requirements
The Harvia KIP60B requires specific electrical connections to operate efficiently. For the 240V/1PH configuration, you will need a 30 Amp circuit breaker and 10 AWG wire. If you opt for the 208V/3PH setup, a 20 Amp circuit breaker and 12 AWG wire are necessary.
Technical
Features
User group | Households |
Power output | 6 kW |
Control type | Controlled by manual switches |
Installation location | Wall |
Installation orientation | Vertically |
Technical documentation languages | EN FR |
Color | Stainless Steel |
Main material | Steel |
Operating time adjustment range, family sauna, min. | - |
Operating time adjustment range, family sauna, max. | - |
Storage temperature min | 0 ˚C |
Storage temperature max | 50 ˚C |
Use environment | Interior - wet area |
Remote use options | No |
Prime energy/fuel | - |

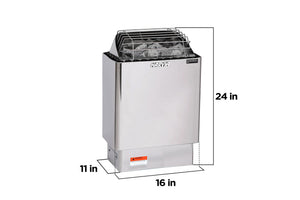

Measurements

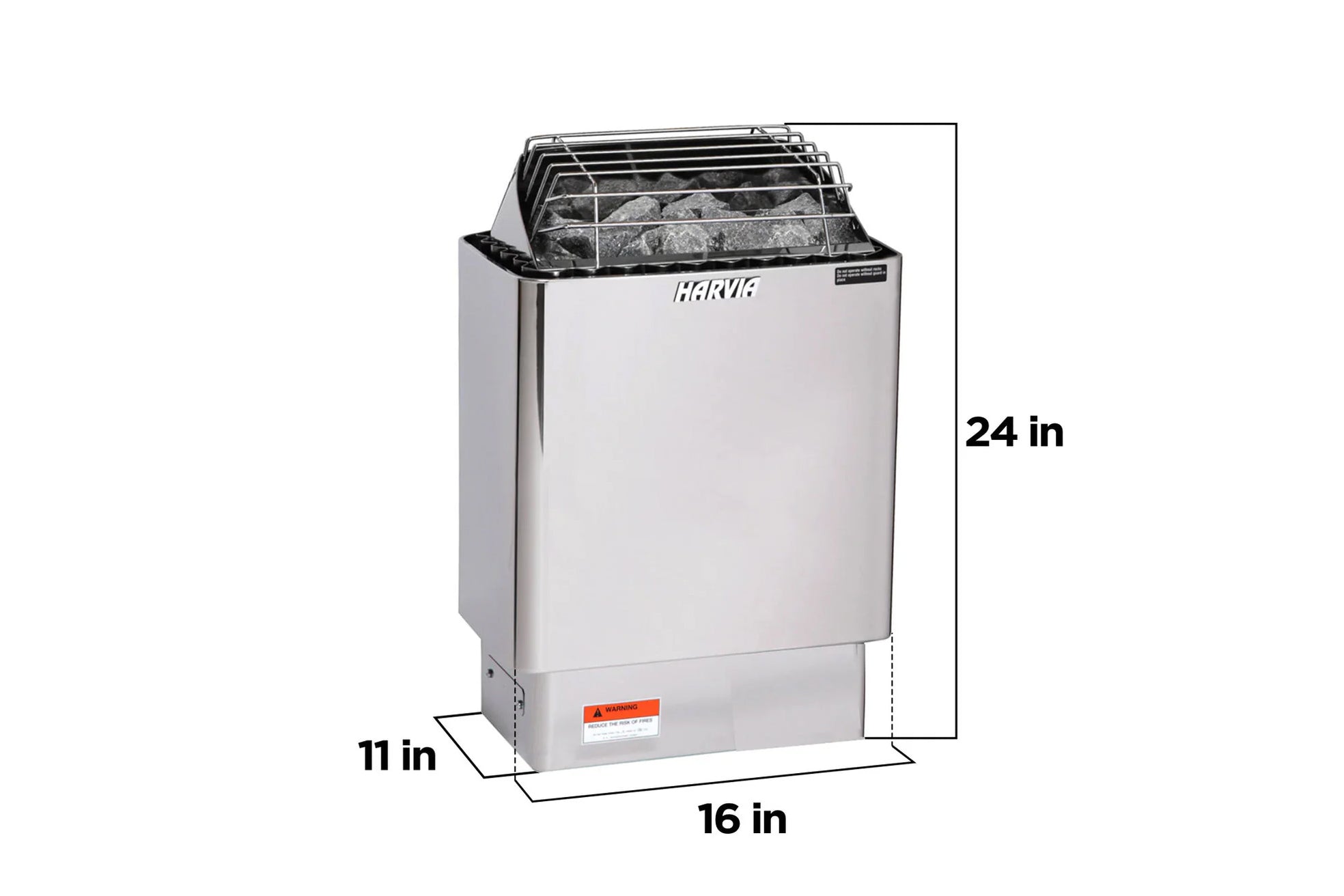

Product height | 600 mm |
Product width | 410 mm |
Product depth (mm) | 280 mm |
Stone sizes | Ø5–10 cm |
Weights
Net weight (kg) | 14 kg |
Stone amount (kg) | 20 kg |
Distances
Safety distance front (non-combustible materials) | 100 mm |
Safety distance front (combustible materials) | - |
Safety distance side (non-combustible materials) | 100 mm |
safety distance to the side wall (combustible materials) | - |
Safety distance behind (non-combustible materials) | 0 mm |
Safety distance behind (combustible materials) | - |
Safety distance right side (combustible materials) | - |
Safety distance right side non-combustible materials | - |
Safety distance left side (combustible materials) | - |
Safety distance left side non-combustible materials | - |
Safety distance (Ceiling) | - |
Safety distance (Floor 3ph) (depends on connections and therefore from output, star/delta) | 178 mm |
Safety distance (Floor 1ph) (depends on connections and therefore from output, star/delta) | 178 mm |
min. height for assembly | - |
Installation opening height | - |
Installation opening width | - |
Installation opening depth | - |
Room min. recommended volume | 4.8 m³ |
Room max. recommended volume | 8.5 m³ |
Room min. height(depends on connections and therefore from output, star/delta) | 1980 mm |
Electrical
Power table | [["6","","",""]] |
IP Class (like: IPX4) | IPX4 |
Electrical Frequency | 60 Hz |
Fuses (400V3N~) pcs x ampers | - |
Fuse (230V1N~) ampers | - |
Fuses (230V 3~) pcs x ampers | - |
Fuse (240VAC, 1 ph, 60Hz) pcs x ampers | min. 25A / 2 group: min. 16,7A |
Supply cable (400V 3N~) mm2 | - |
Supply cable (230V 1N~) mm2 | - |
Supply cable (230V 3~) pcs x mm2 | - |
Supply cable (240VAC, 1ph, 60Hz) pcs x ampers | 10AWG |
Electrical group options | 240VAC, 1ph, 60Hz |
Logistics
Package height | 500 mm |
Package width | 700 mm |
Package depth | 370 mm |
Gross weight | 17 kg |
