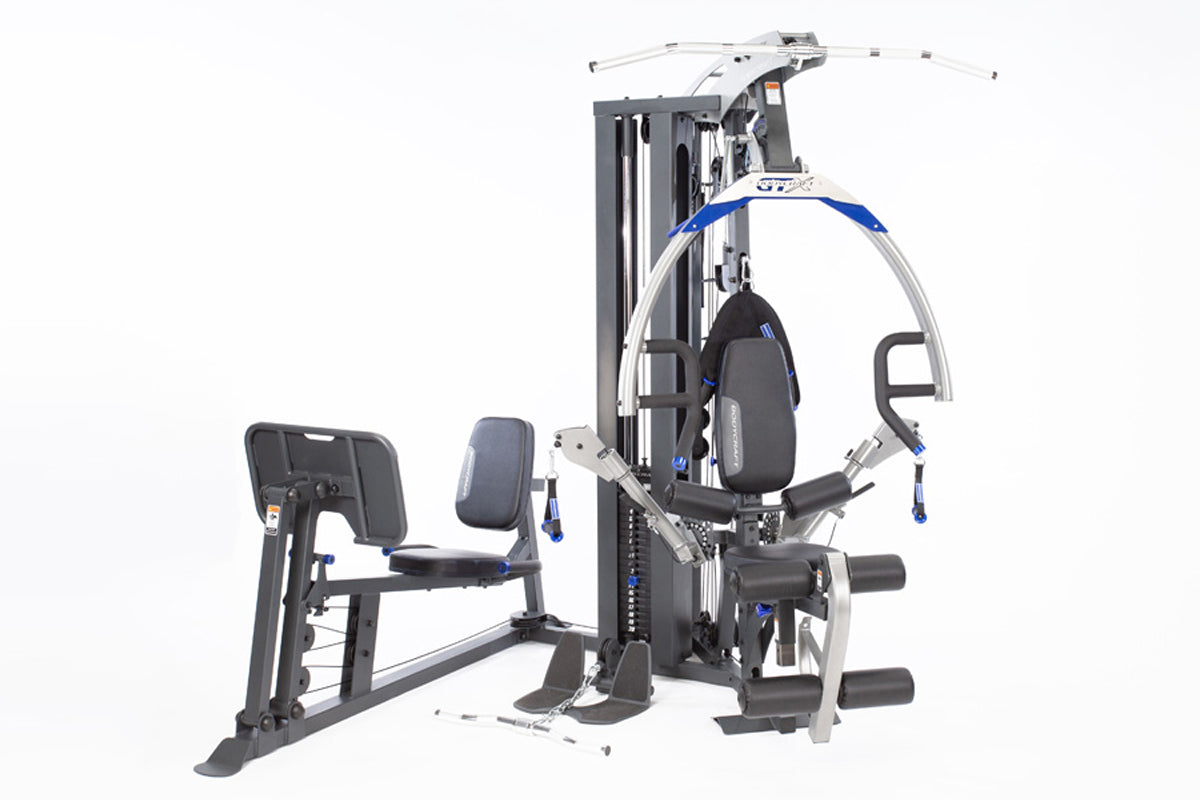

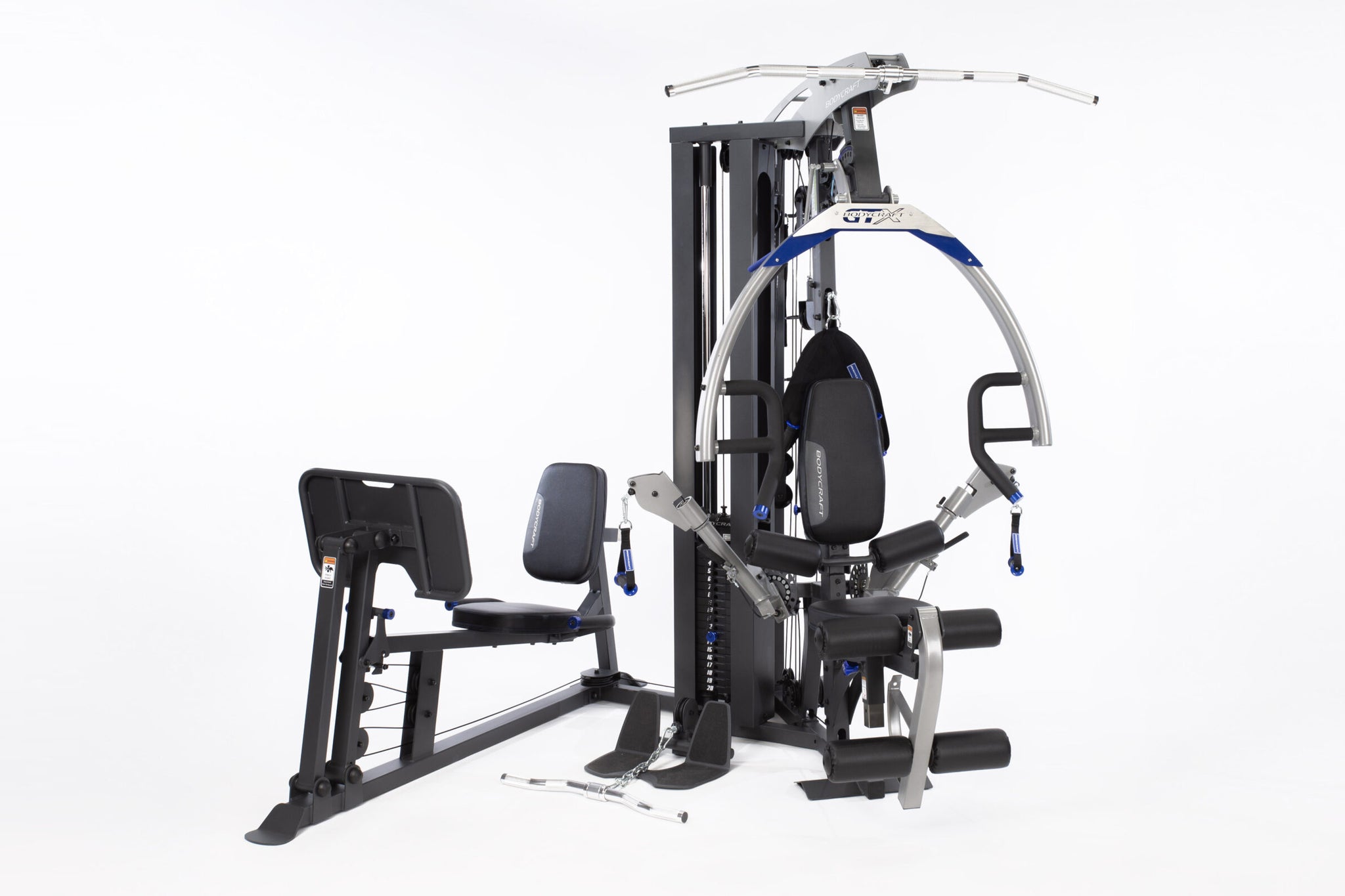

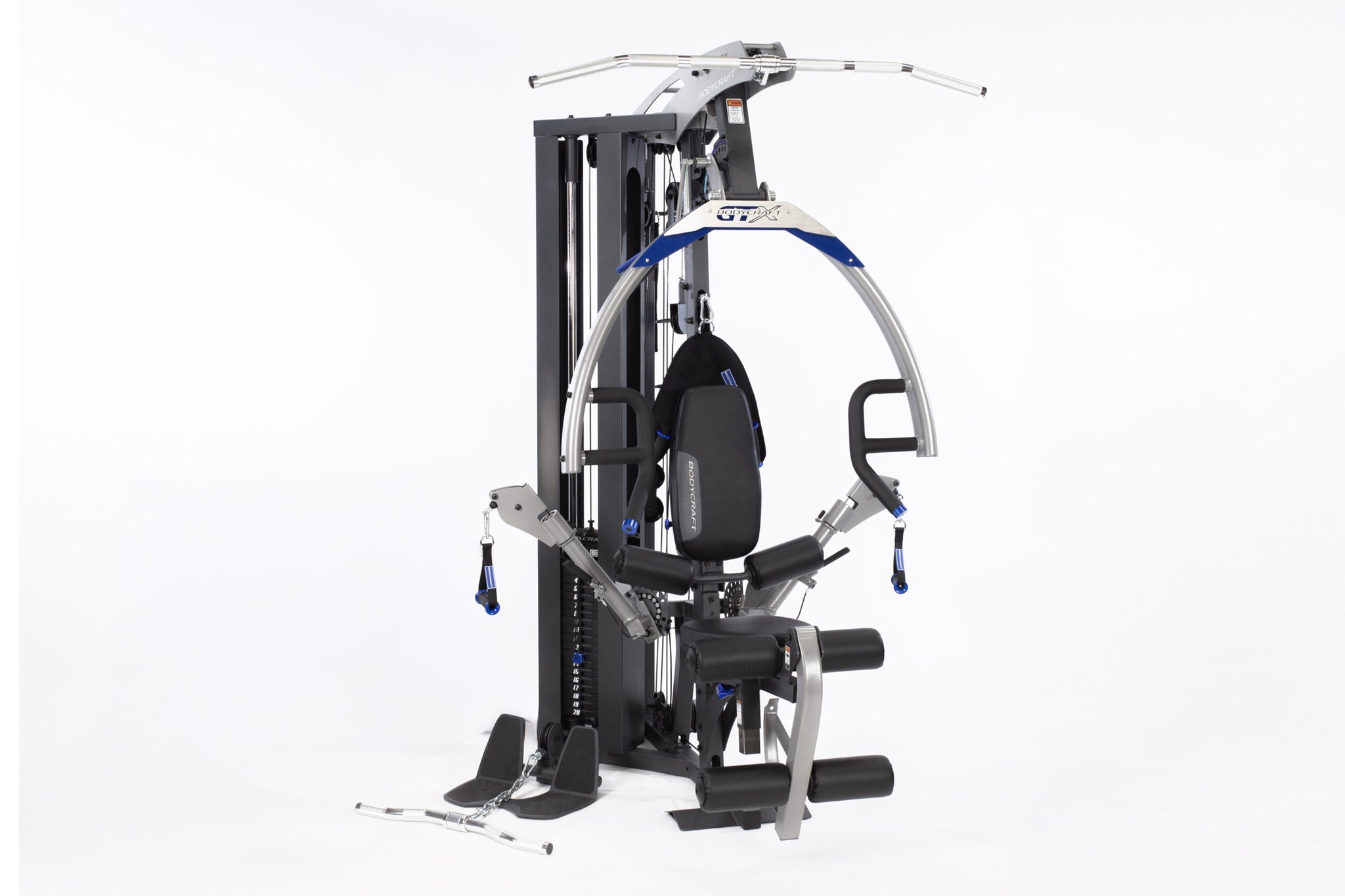

The BODYCRAFT GTX Multi-Gym seamlessly combines modern aesthetics with advanced functionality, offering a sleek and compact design that fits effortlessly into any workout space. The fully adjustable seat and ergonomically designed back pad provide exceptional comfort, with the back pad cradling the user and reducing spinal stress for optimal support. The innovative leg curl and leg extension station features well-placed pads and handles, ensuring precise positioning for effective targeting of both hamstrings and quadriceps. The versatile functional cable arms enable a wide array of movements, including dumbbell-style exercises and various press and fly motions, enhancing overall strength and flexibility. Additionally, the Adjustable Press & Row Arm, with 10 micro-adjustable positions, supports a diverse range of exercises, including Seated Row, Bench Press, Incline Press, and Shoulder Press, enabling tailored muscle training and helping you achieve your fitness goals with precision.
Key Features
- Includes Functional Cable Arms: Adds dozens of exercises.
- Adjustable Press & Row Arm: Features 10 positions for various exercises.
- Comprehensive: Over 60 available exercises.
- Components: Bearing pivot points, nylon pulleys, & 2,000 lb rated cables.
- Hybrid Design: Provides functional and conventional exercises.
Accessories
Included:
- 48″ Aluminum Lat Bar w/Swivel
- Aluminum EZ Curl/ Row Bar w/Swivel
- Ab Strap – Padded w/Contoured Handles

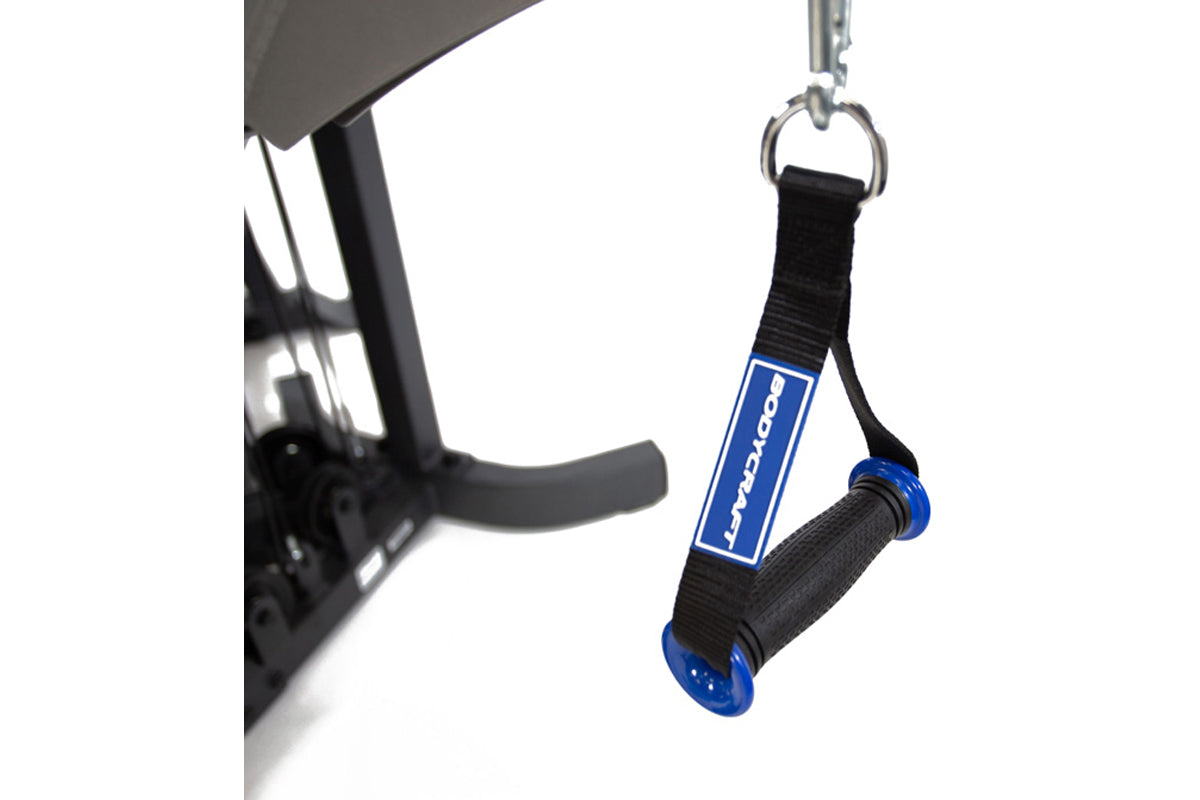

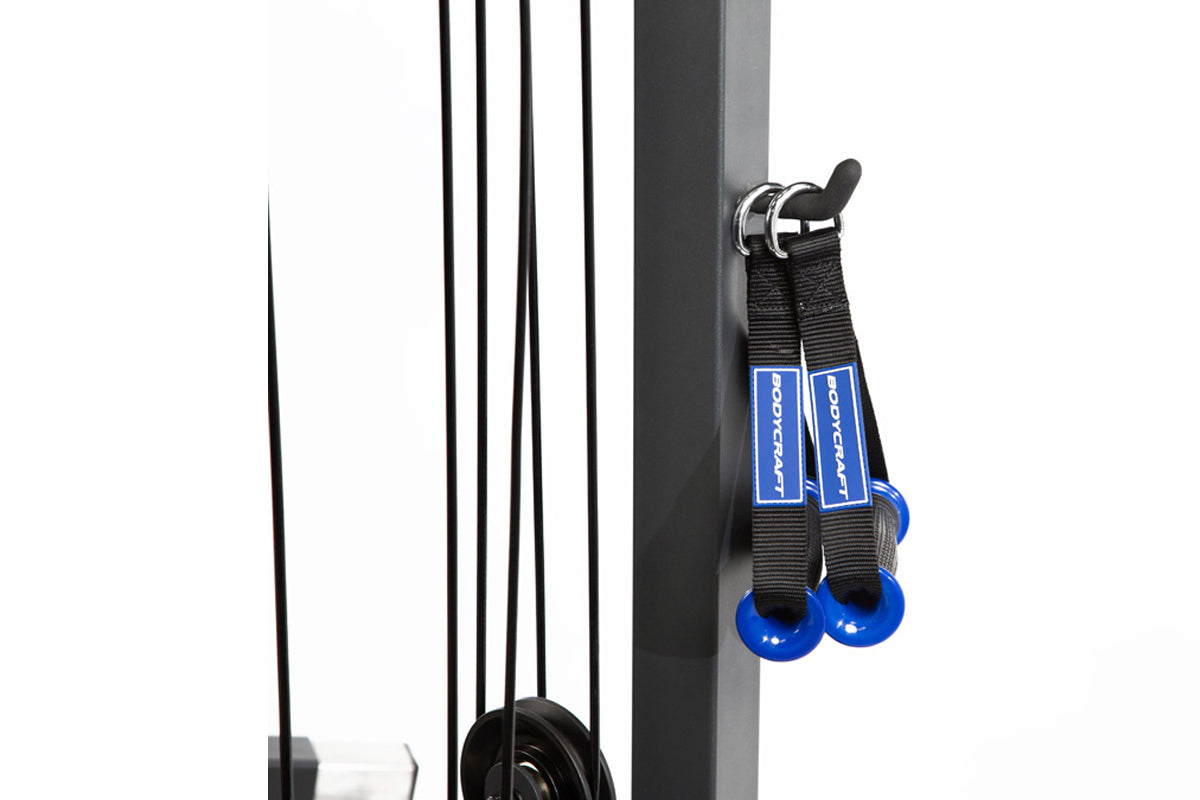

- Contoured Single Handles
- Padded Velcro Ankle Strap
- 24 Link Chain
- Workout Posters
Optional:

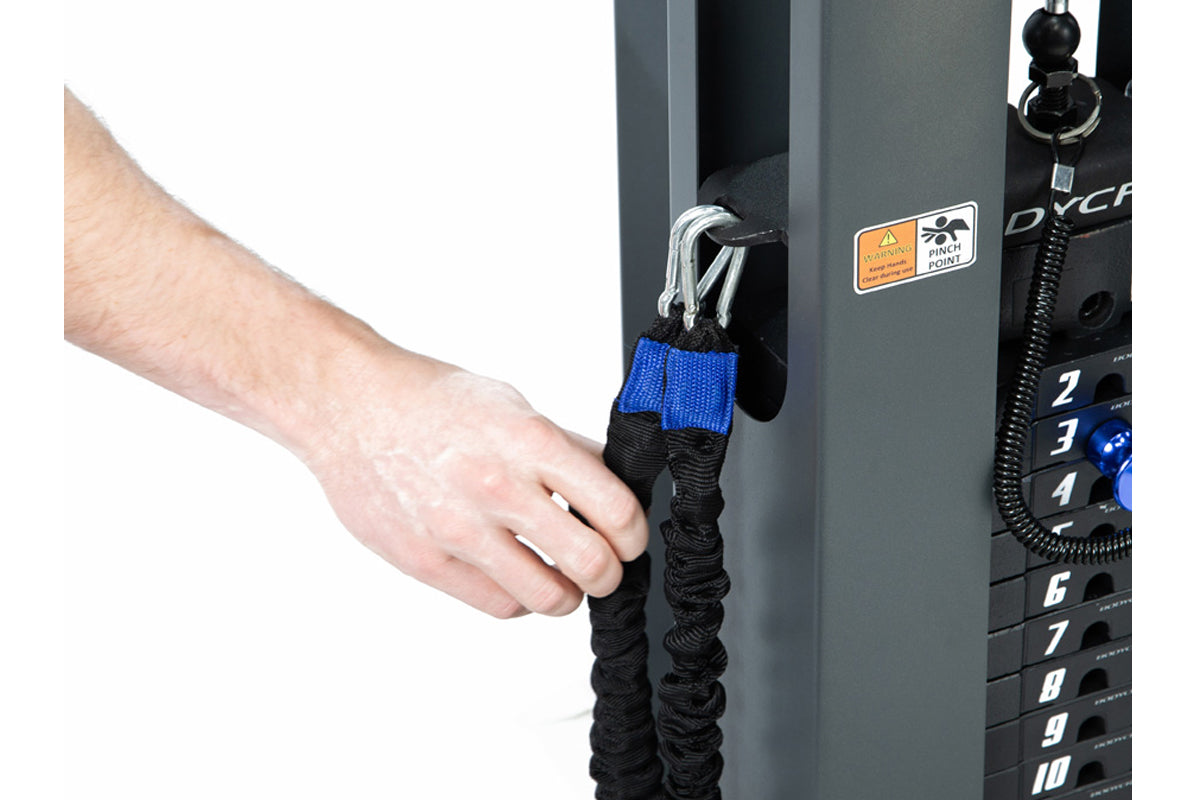

- Speed Trainer

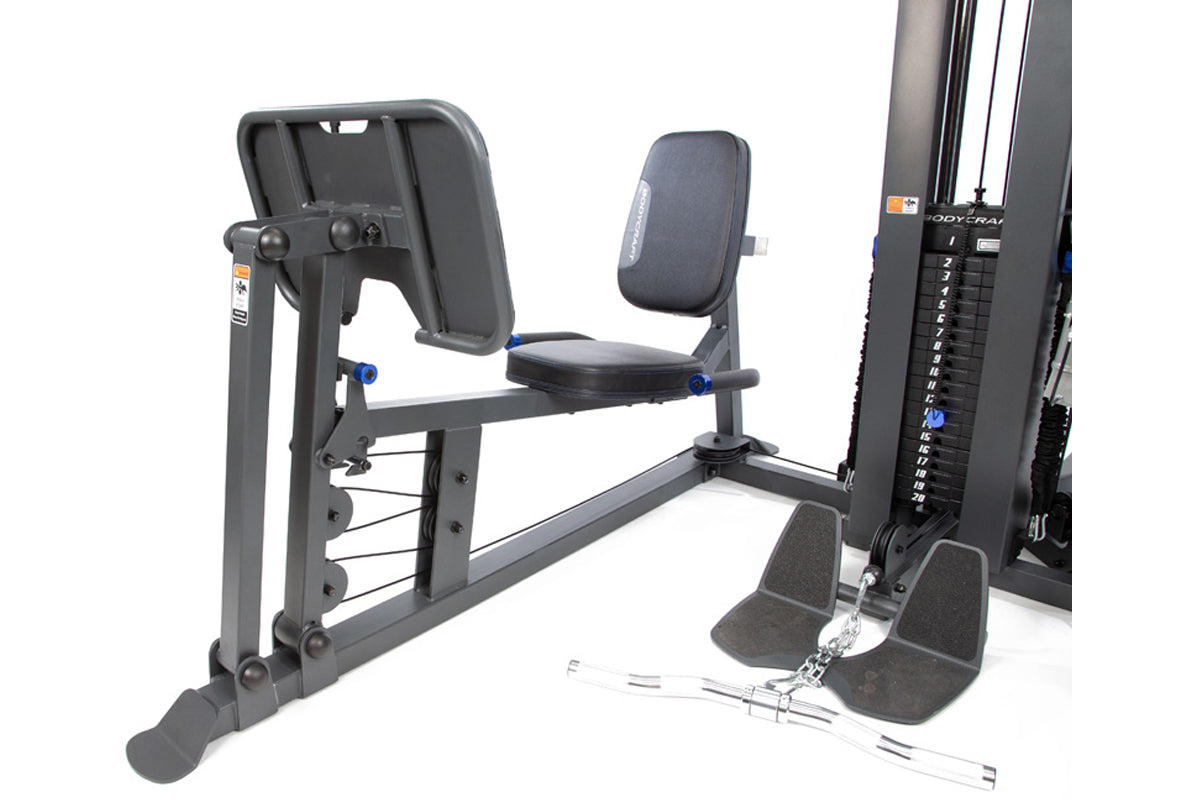

- Leg Press

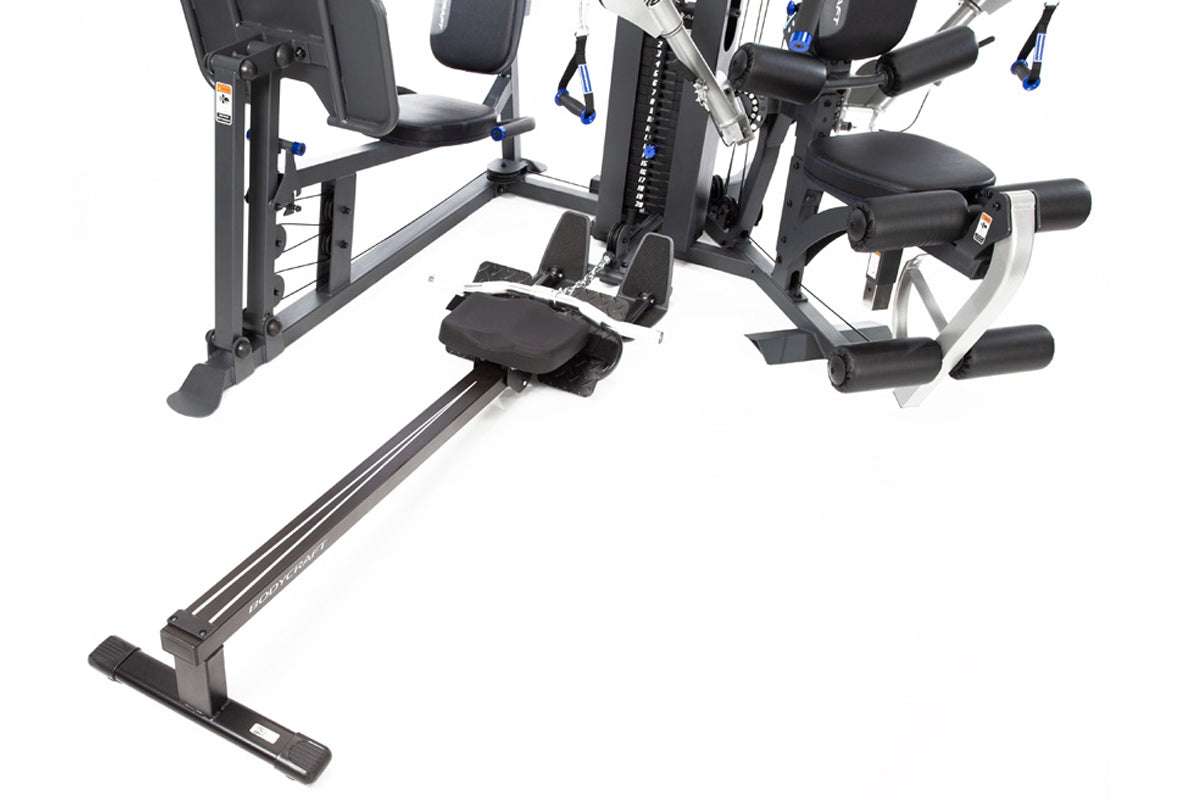

- Power Row
- Triceps Rope
- 50lb Weight Stack Upgrade
- 5 lb Add-on

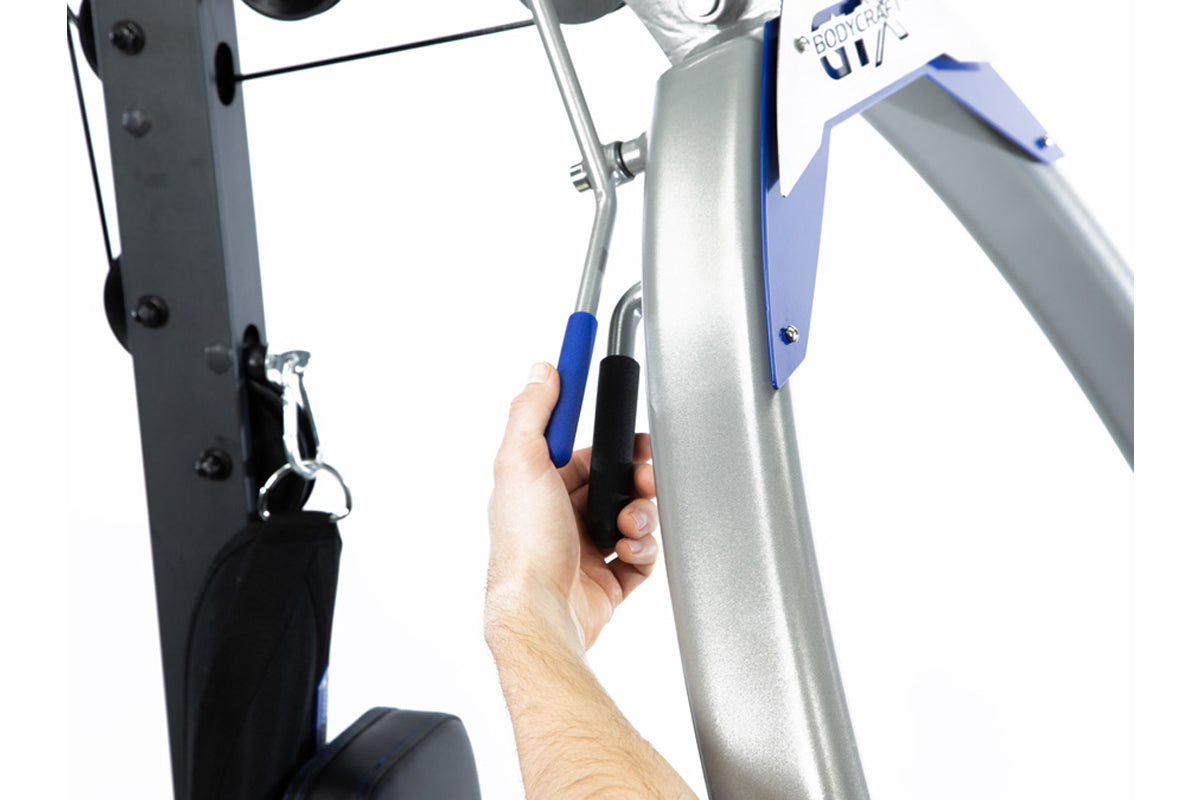

Press & Row Arm
Easily adjustable from a seated or standing position. The Press & Row Arm has 10 micro-adjustable positions, including exercises such as Seated Row, Incline Press, and Shoulder Press. This allows for fine-tuning to fit every user.
Accessories
Included
- 48″ Aluminum Lat Bar w/Swivel
- Aluminum EZ Curl/ Row Bar w/Swivel
- Ab Strap – Padded w/Contoured Handles
- Contoured Single Handles
- Padded Velcro Ankle Strap
- 24 Link Chain
- Workout Posters
Not Included
- Speed Trainer
- Leg Press
- Power Row
- Triceps Rope
- 50lb Weight Stack Upgrade
- 5 lb Add-on

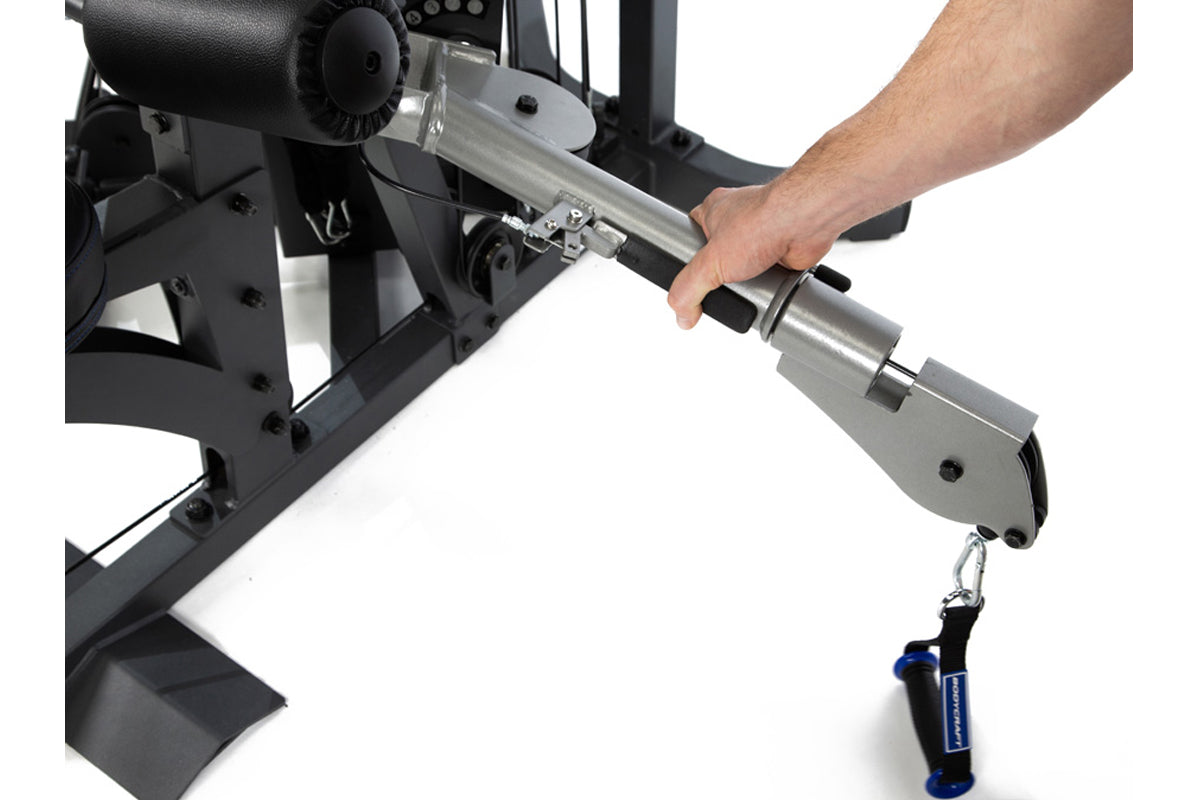

Functional Training
The functional cable arms offer an unrestricted range of motion, seamlessly transitioning from fluid, dumbbell-style movements to high-performance press and fly patterns, building athletic stability. Advanced engineering provides a 2:1 ratio for smooth, extended unilateral travel at half-resistance, or a 1:1 ratio for heavy bilateral strength training using the full weight stack.

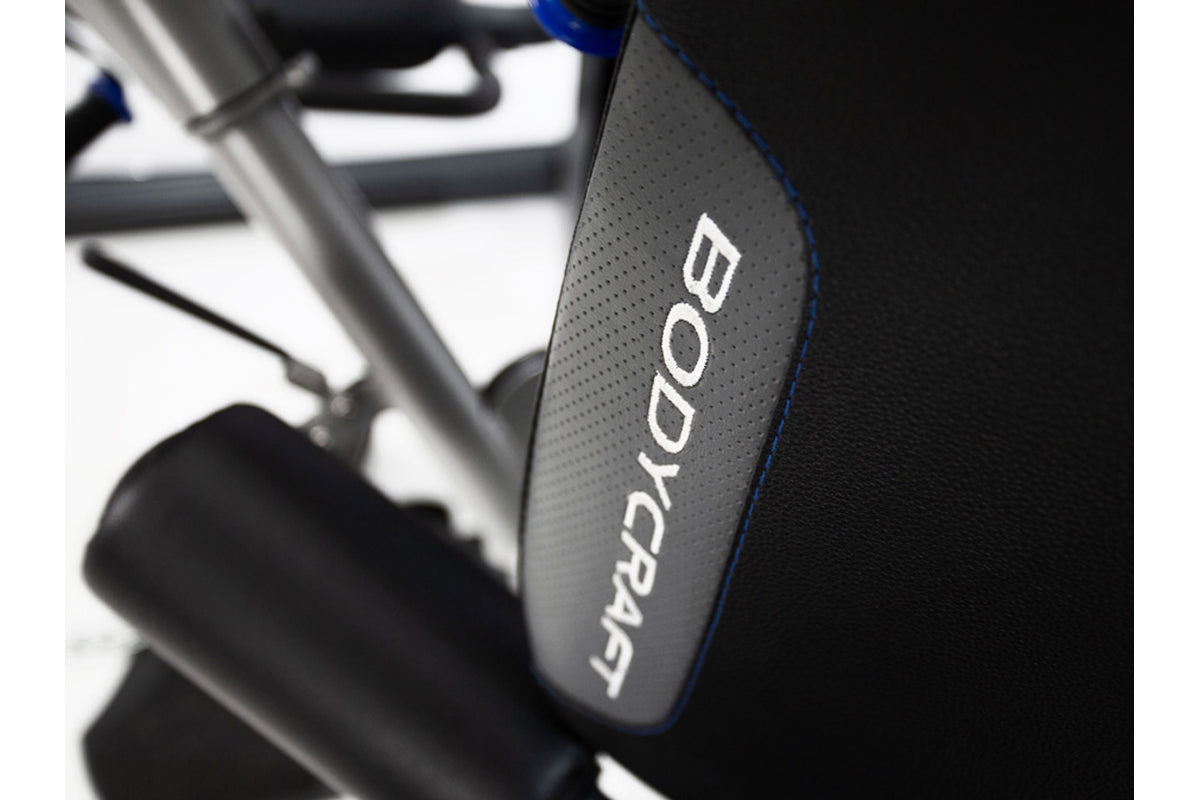

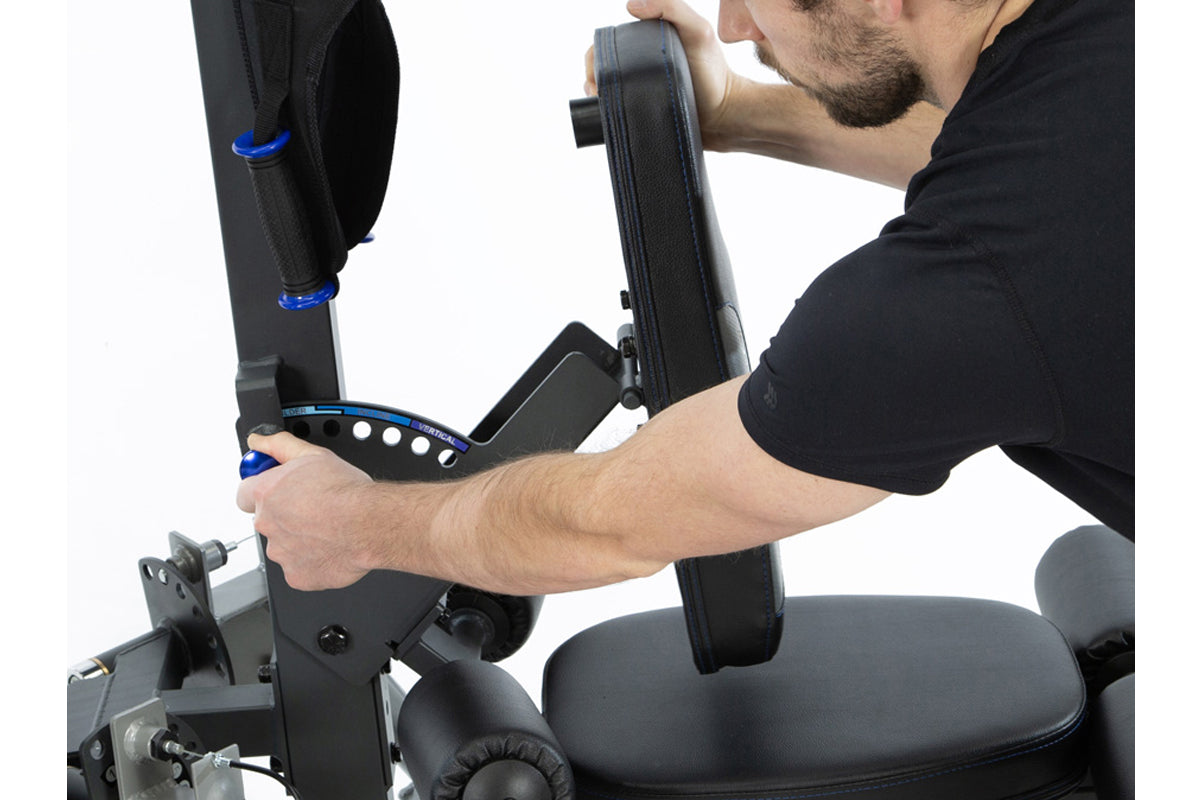

Customizable Fit

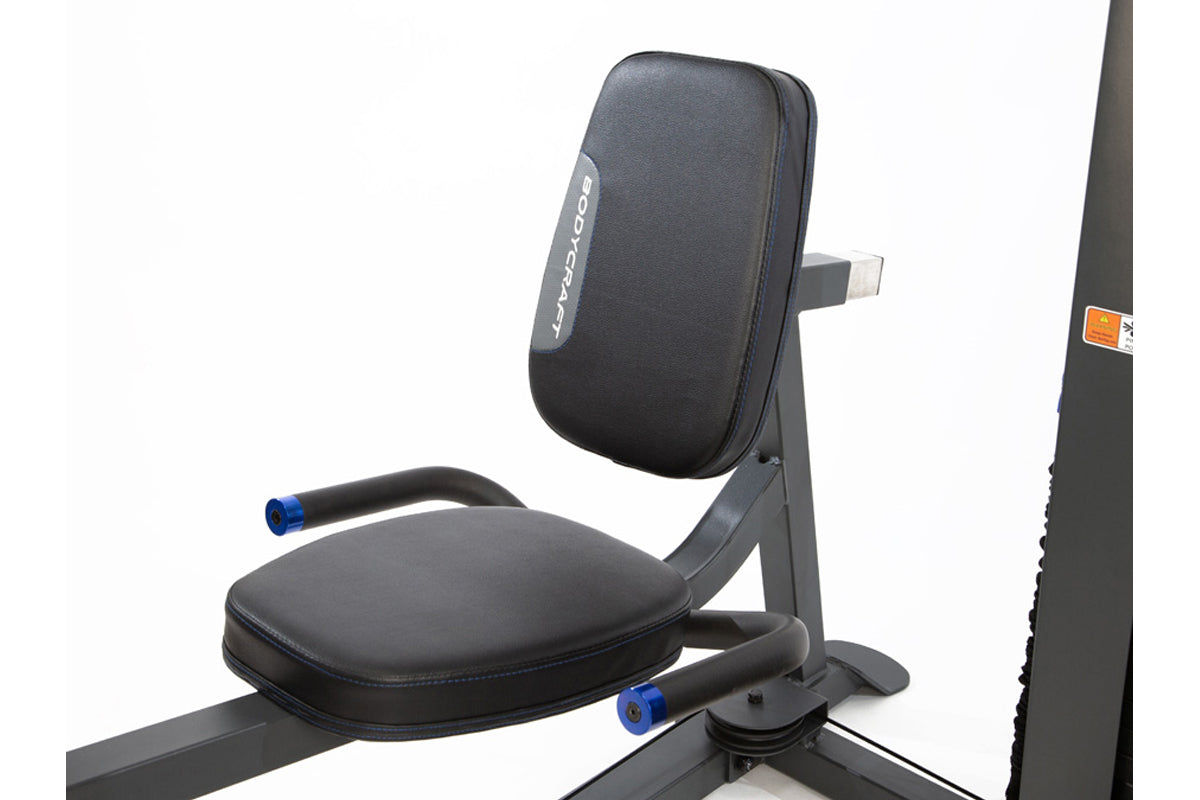

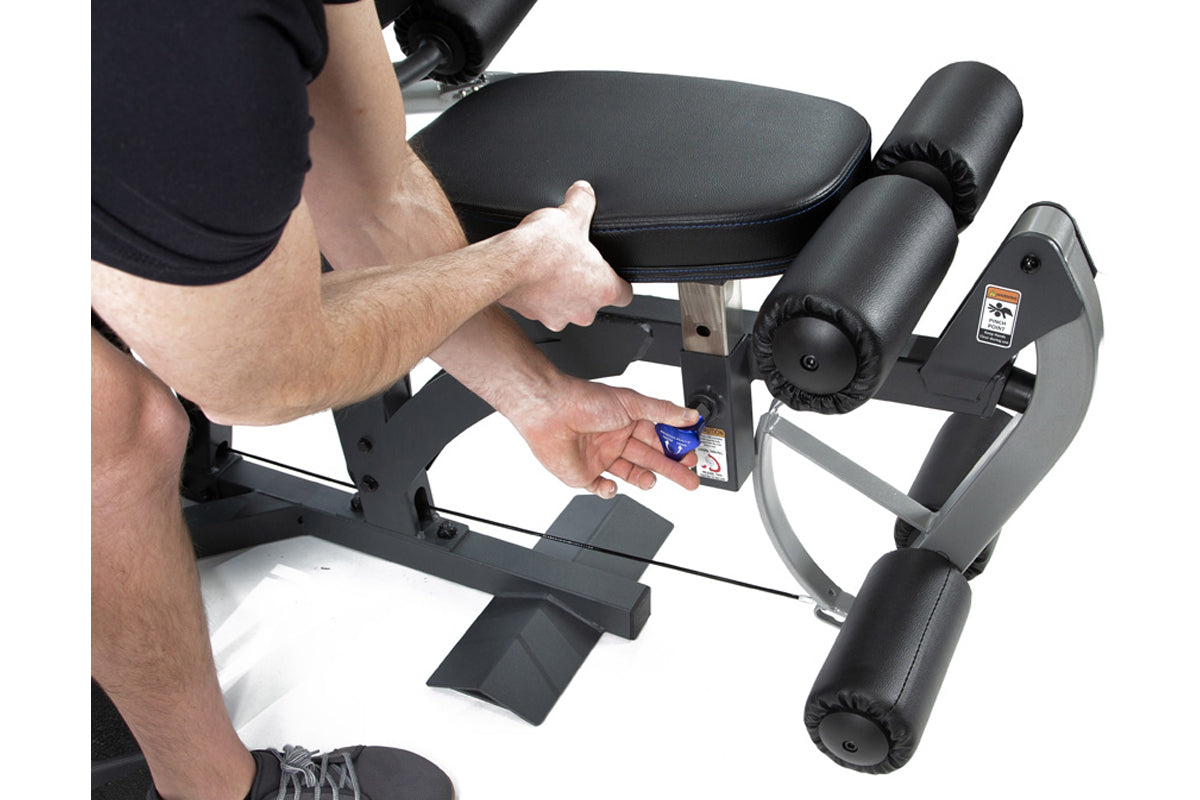

With an ergonomically designed back pad that adjusts front-to-back and a multi-grip press arm, the GTX ensures optimal comfort. The dual-layered orthopedic back pad provides excellent lumbar support and reduces spine stress, while the seat can be easily adjusted while seated to accommodate users of all sizes.
Performance
Bench Press/Seated Row Station |
Allows for users of different sizes and a variety of exercises, including Bench Press, Incline Press, Shoulder Press, and Mid Row. 1:1 Weight Ratio |
Seat/Seat Back |
Back pad tilts to ensure full support when performing incline and shoulder presses. |
Ab Crunch Station |
For abdominal training and overhead Triceps, etc. 1:1 Weight Ratio |
Low Pulley Station |

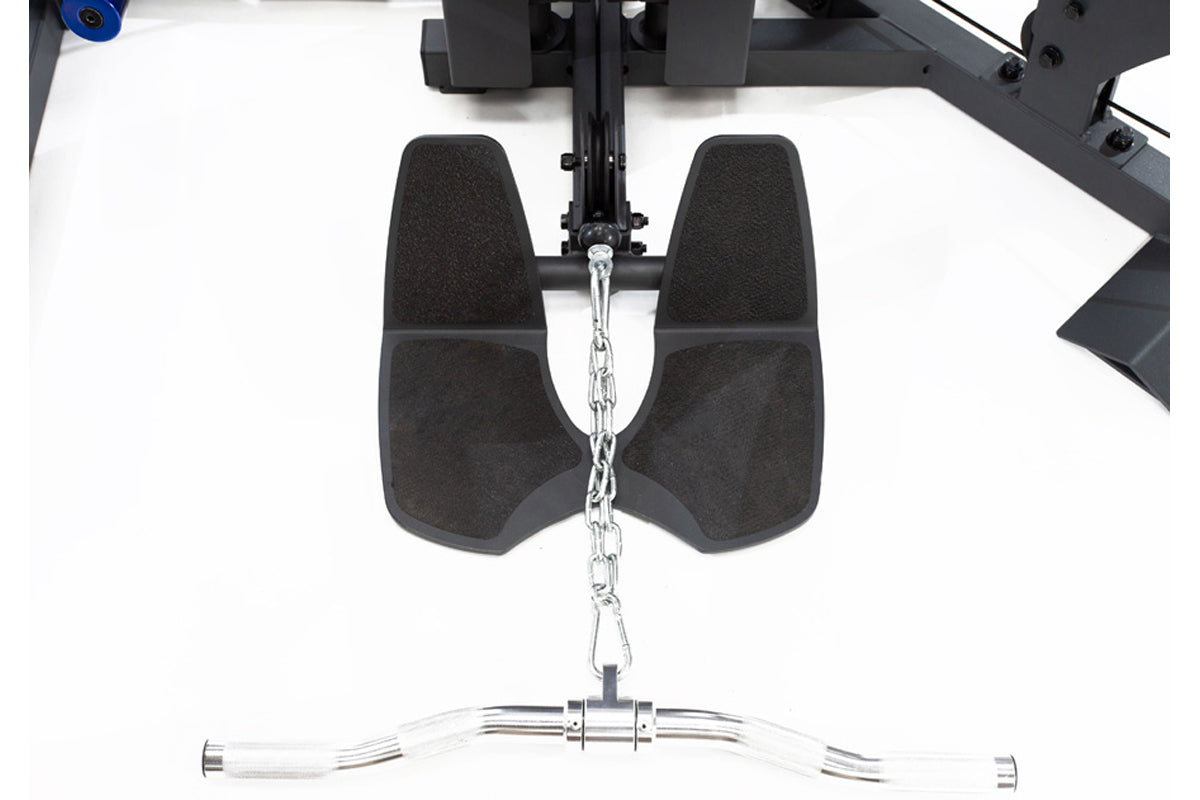

With foot plate for Seated and Upright Rows, Abductor, Adductor and Rear Leg Kicks, Bicep Curls, etc. 1:1 Weight Ratio |
High Pulley Station |
For Lat pull-downs and Triceps Push Downs, etc. 1:1 Weight Ratio |

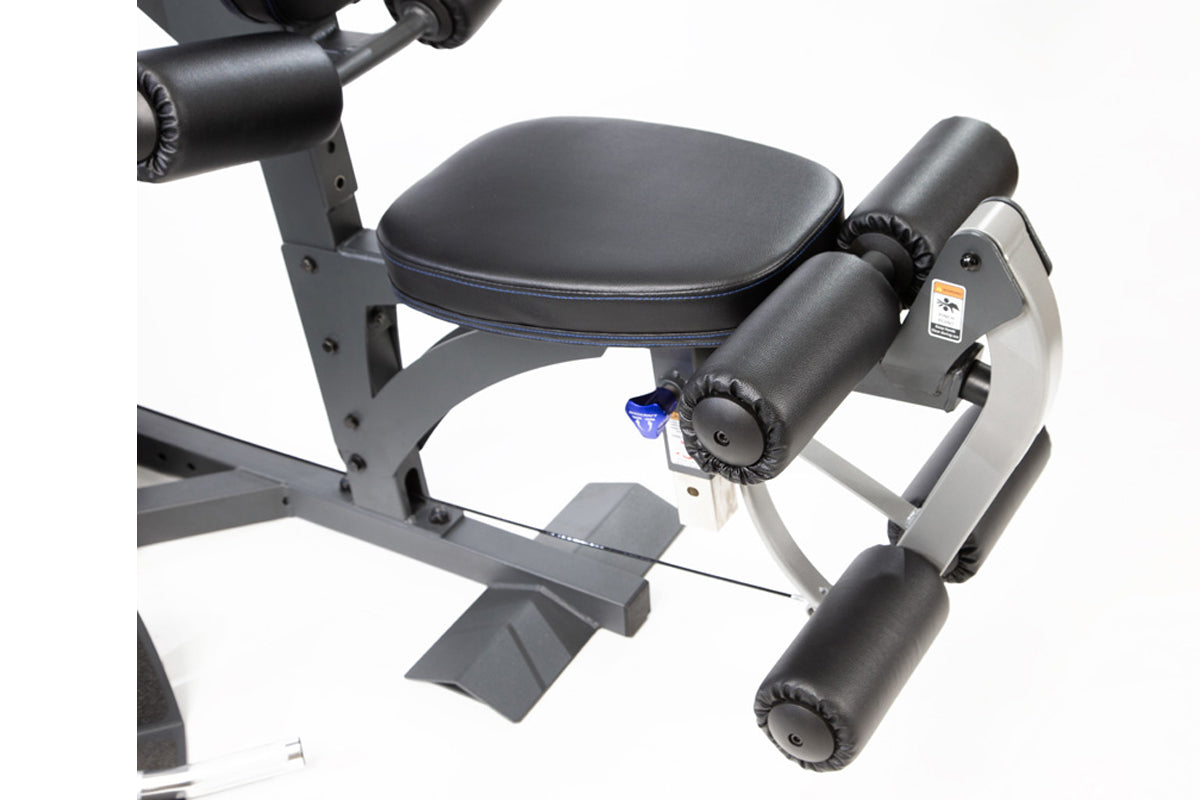

Leg Extension/Leg Curl Station |
Provides seated leg extension and Standing Leg Curl. 1:1 Weight Ratio |

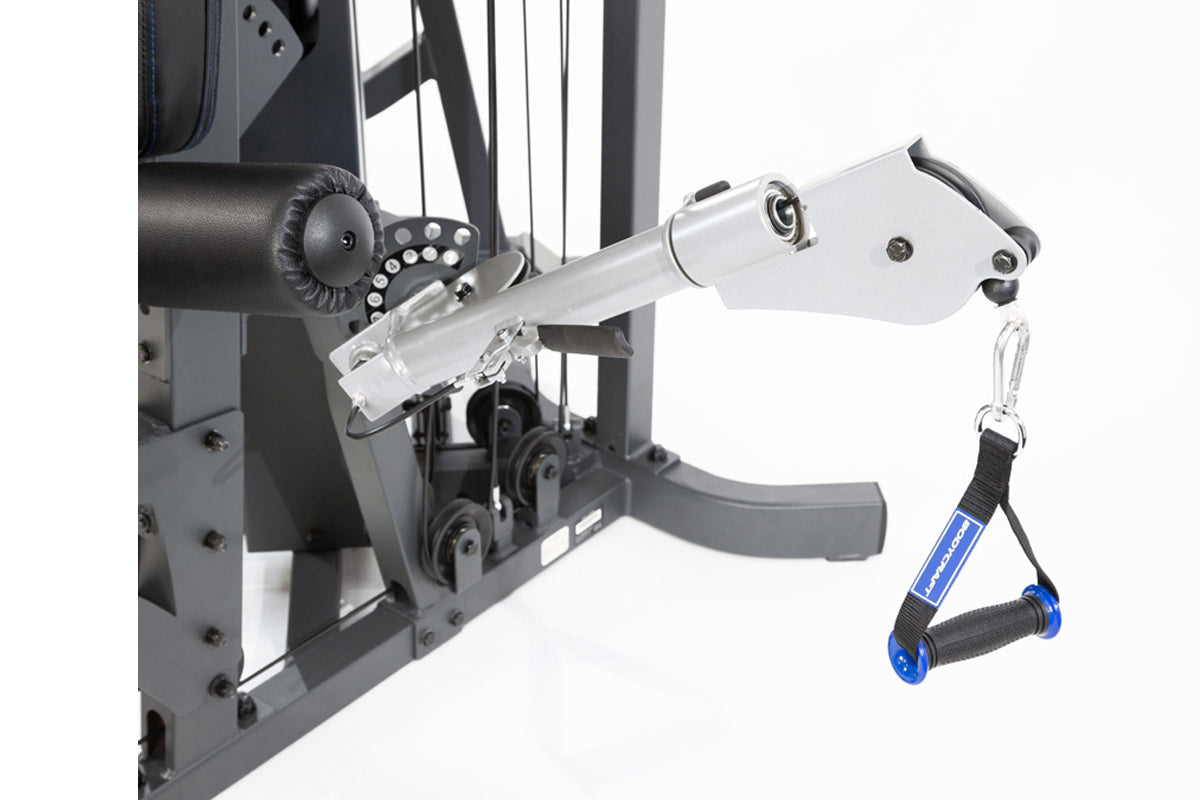

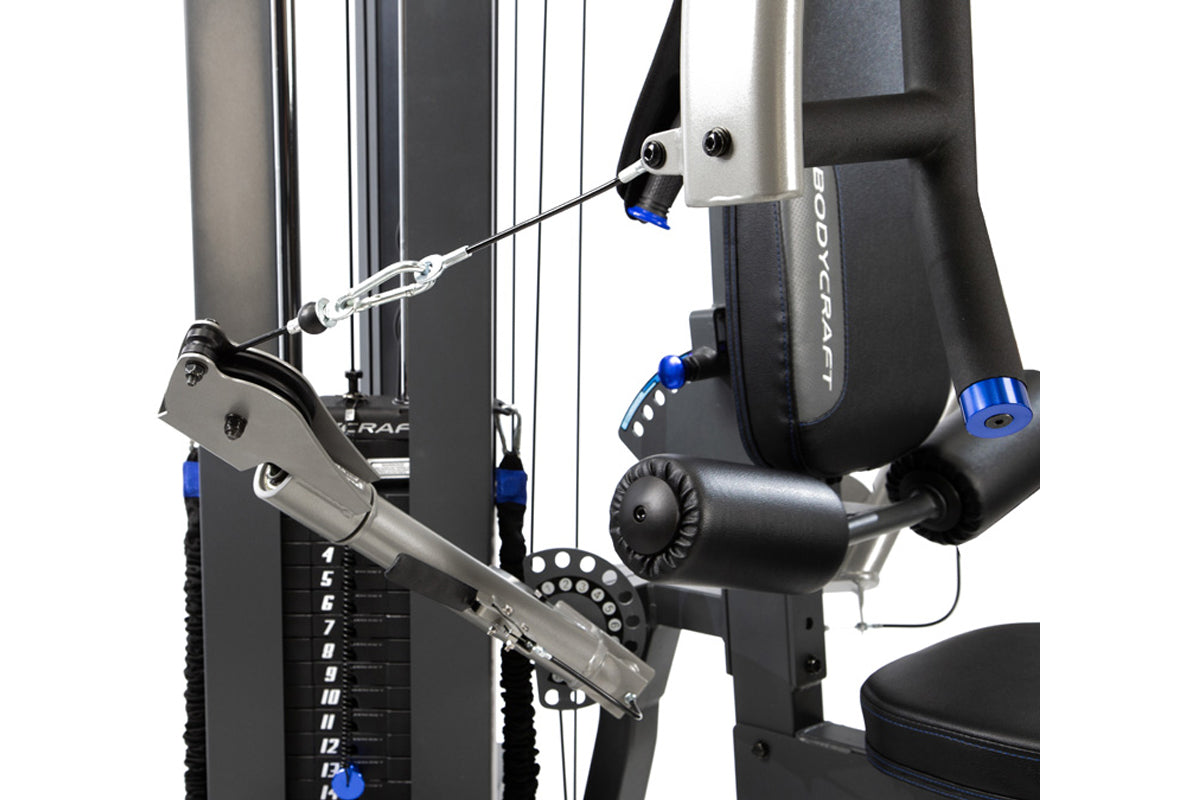

Functional Cable Arms |
Expand your training with dumbbell-style movements and sport-specific exercises along straight or converging planes. This dual-ratio system changes with your movement: a single handle provides a 2:1 ratio for extended, smooth travel, while using both handles simultaneously delivers a true 1:1 ratio for maximum strength |
Dims/Weight
Dimensions |
58″L x 56″W x 82.4″H (Corner) 89″W w/Leg Press 62.2″L x 53.9″W x 82.4″H (Wall) 97.4″W w/Leg Press |
Weight |
479 LBS (150 LB stack) |
Build

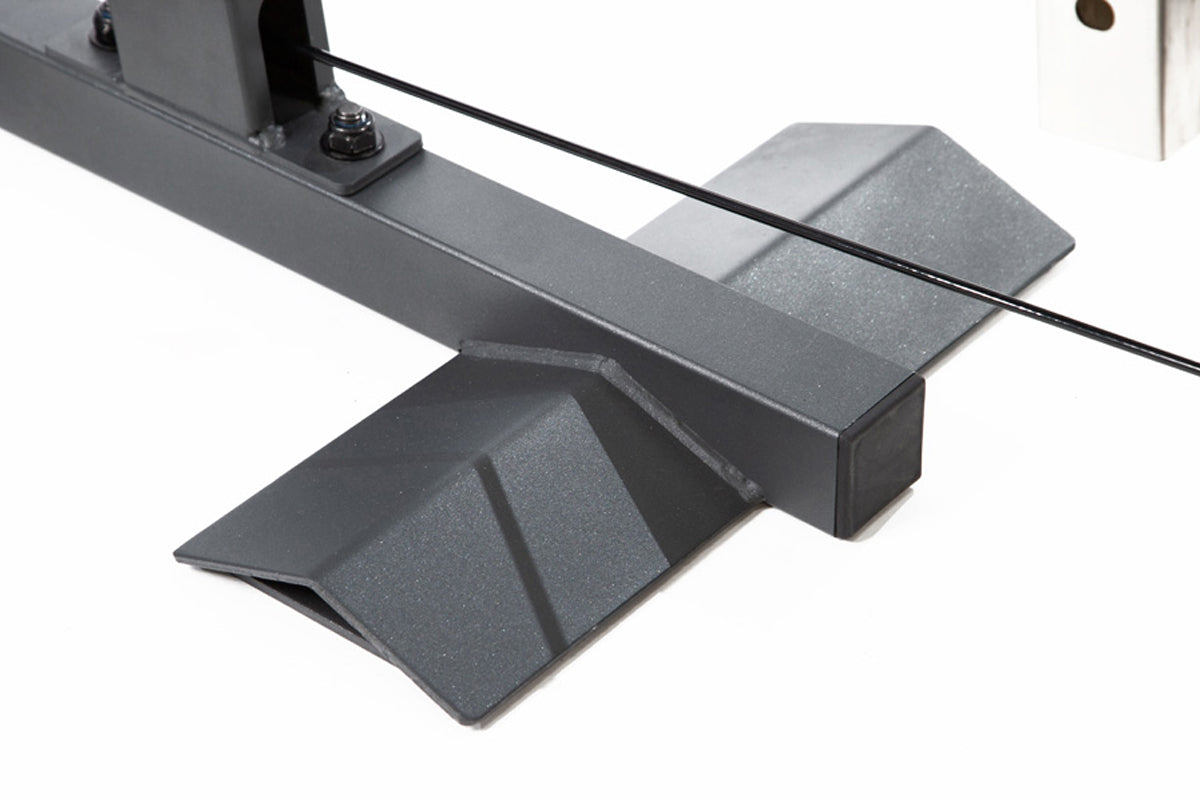

| Frame | Heavy Gauge 2″ x 3″ Plate Steel |
| Pulleys | 3-1/2″ Heavy Duty Pulleys with Lubricated Precision Sealed Ball-Bearings |
| Cables | Internally Lubricated, 7 x 19 Strand Construction Rated at 2,000 lb tensile strength |
| Guide Rods | Chrome-plated 1″ tubular steel for extreme durability and smooth action |

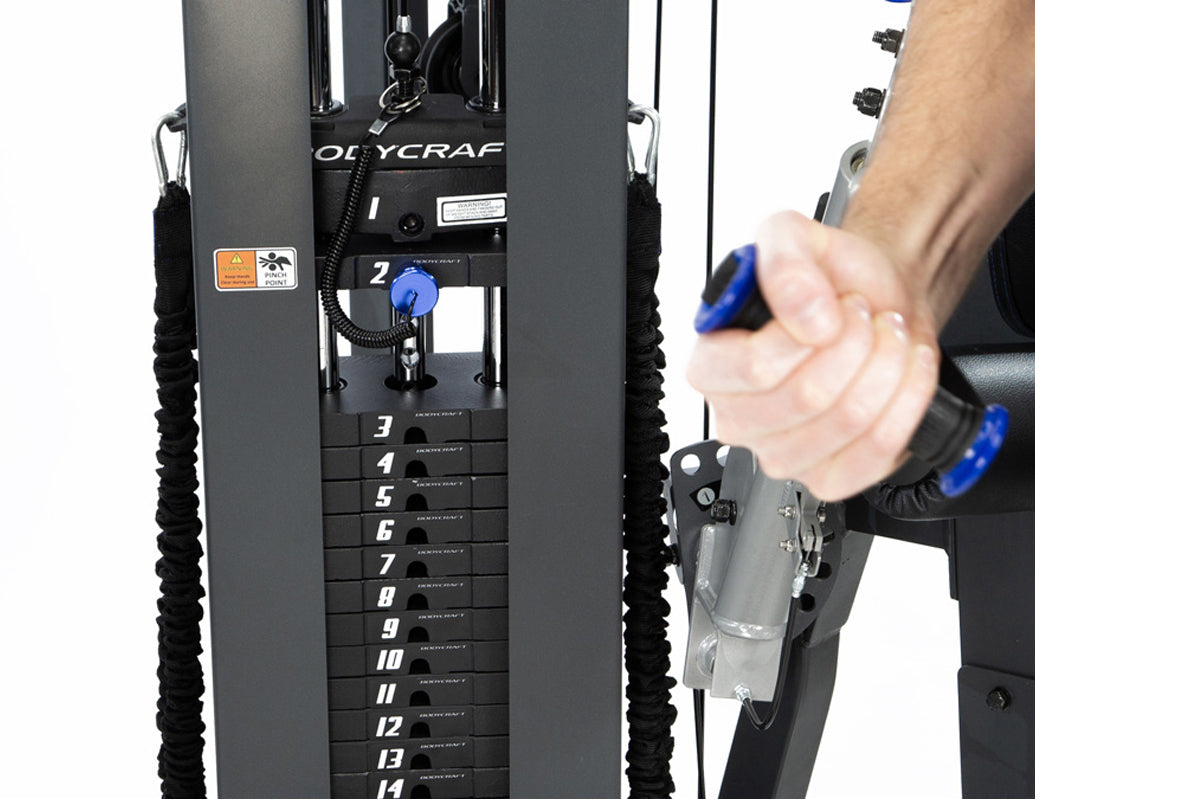

| Weight Plates | Precision-milled cast steel plates with Nylon Bushings for smooth action. 150 LBS, upgradable to 200 LBS. |
| Paint Finish | Multi-stage electrostatic powder-coat paint |

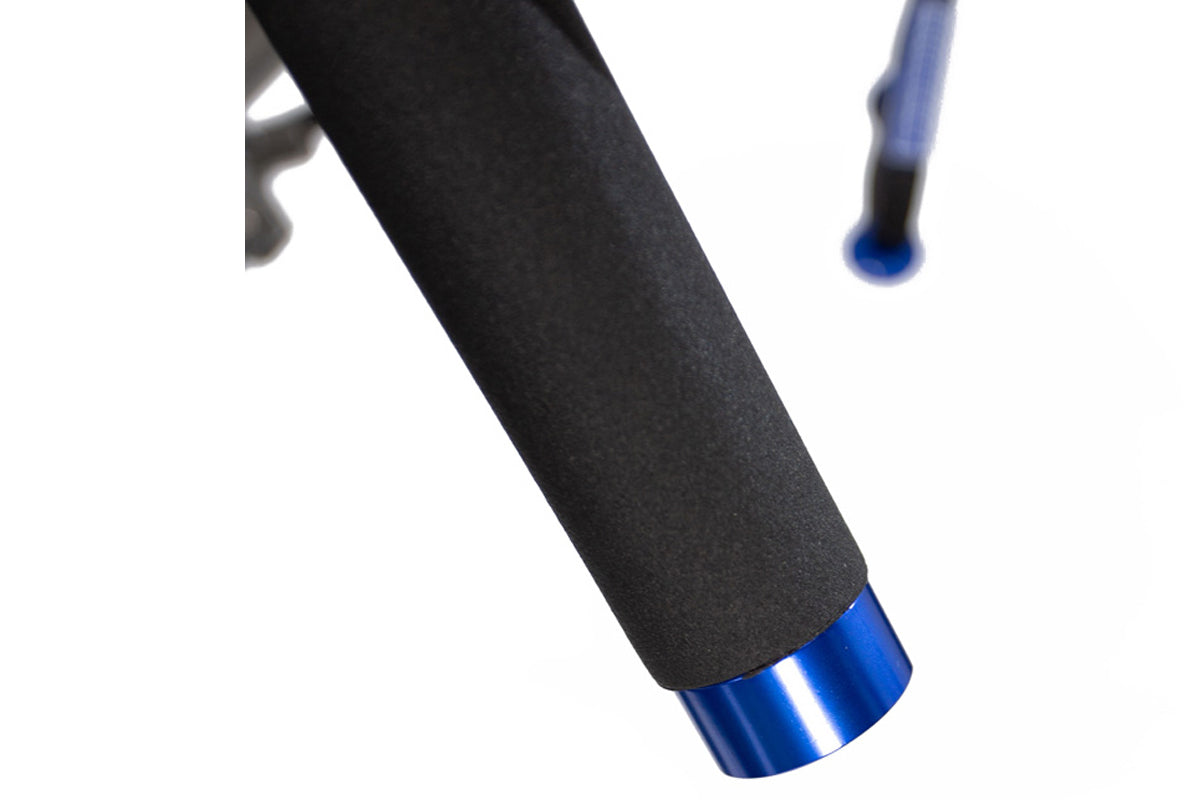

| Upholstery | Double-stitched vinyl covering 2″ thick, high-density foam with accents |

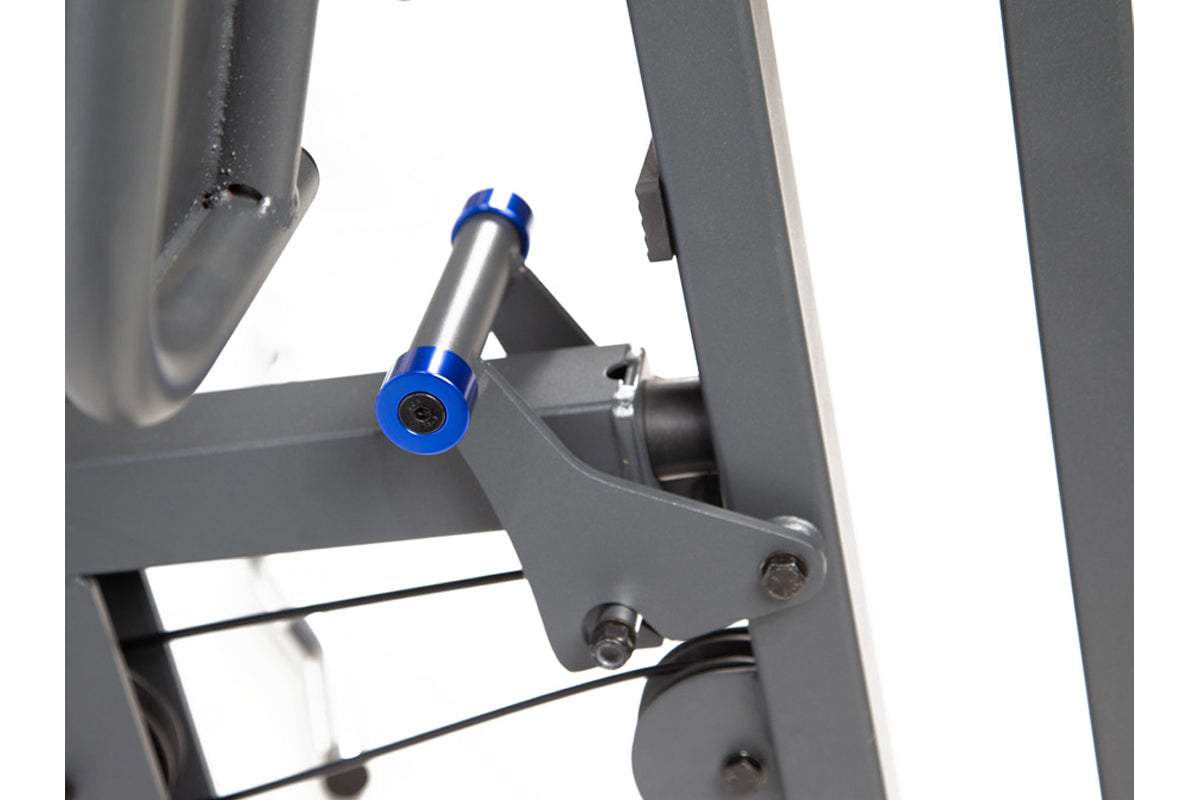

| Bearings | Precision Sealed Bearings and Oil-lite bushings used at all Pivot Points |
| Aesthetics | Blue Anodized Aluminum Selector Pin, Pop-Pins and Accent Caps. Blue Accents Throughout, Laser-Cut Plates, Weight Stack Guards, All Black Hardware |
Shipping
| Shipping | Truck (Curbside Delivery) |
| GTX with 150 LB Stack | GTX Frame Box 1/2: 186 LBS. GTX Frame Box 2/2: 145 LBS. GTX FCA Box: 56 LBS. 2 Boxes of 70 LB Weight Plates: 140 LBS. Total 5 Boxes with a total weight of 529 LBS.* |
| GTX with 200 LB Stack ADDS | 1 Box of 50 LB weight Plates: 50 LBS. Total 6 Boxes with a total weight of 579 LBS.* |
* The totals do not include pallet weight of 80 LBS.
Residential
| Lifetime Warranty
|
Since it is built to last a lifetime, every part of the BODYCRAFT GTX is guaranteed for as long as you own it. We will replace or repair any manufacturer's defect. Warranty applies only to the original owner and for in-home use. Does not cover normal wear and tear.
|
