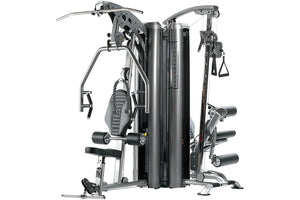

TUFFSTUFF APOLLO 7300 3-STATION MULTI GYM FEATURES
- Modular versatility allows custom station positioning

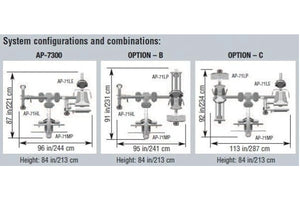

- Three weight stack configurations and combinations
- Over 50 different exercise options available
- Compact footprint helps to conserve space

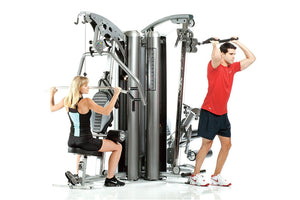

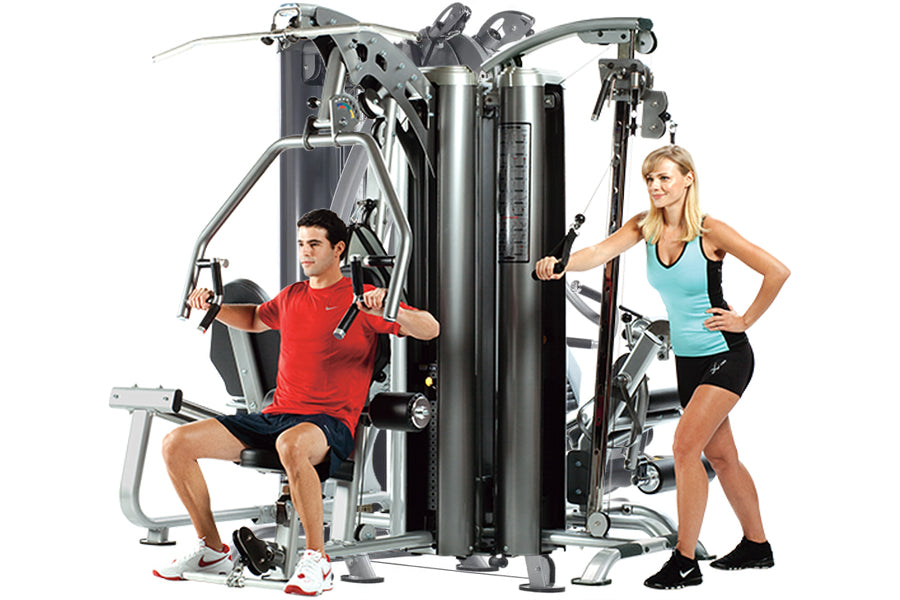

- Allows multiple simultaneous users
- Three independent 200 lbs. steel weight stacks
- Home Lifetime Warranty* and Light Commercial Warranty
87 × 96 × 84 in
Main frame – 2×3” 11-gauge oval tubular steel with a combination of 2×2” round tubing. All welded construction by inert-gas MIG welding conforming with all Structural Welding Code-Steel Standards and Specifications.
Eight-step electrostatically applied powder coat finish. Main frame: Platinum Sparkle Accent: Cathedral Gray
Premium grade naugahyde formulated to resist bacteria, stains, mildew and oil. Meets most flammability test requirements. Standard two-tone (Black/Cadet) and double-stitched with “hidden” borders. Custom colors (one-tone) are available – inquire with your sales representative.
High density 2” thick rebond urethane foam glued to 1” industrial plywood backing, trimmed and formed to exact fit.
2,200 lbs. test 3/16” military-spec nylon coated cable.
(3) Weight Stacks: each with black painted solid steel weight plates (200 lbs.) with self aligning low friction sleeves.
ADJUSTMENT PINS: 1/2” push-pull spring loaded solid steel adjustment pins with ultimate load of 9040 lbs. and 46042 psi sheer strength. BEARINGS: 1” solid steel pivot axles with non-friction 2” sealed bearings (load rating of 2400 lbs.) internally encased on primary pivots, and oil-impregnated bronze bushings on all secondary pivots. GUIDE RODS: 3/4” solid steel 1045 (tgp) highly polished chrome-plated finish. PULLEYS: 4-1/2” and 3-1/2” fiberglass-impregnated nylon pulleys with double sealed roller bearings. SELECTOR WEIGHT PINS: Solid steel, magnetic with ball-end to ensure a tight connection and secure fit. Coiled lanyard helps prevent pin removal and loss. FASTENERS: All frame bolts and nuts are 3/8” and 1/2” zinc plated. Meets ANSI specifications.
Lifetime on everything to the original purchaser when used only in a HOME environment, applies to defects from manufacturer only
LIGHT COMMERCIAL WARRANTY
10 YEARS: Structural main frames, welds, cams and weight plates. 5 YEARS: Pivot bearings, pulleys, bushings, guide rods and gas shocks. 1 YEAR: Cables, linear bearings and pull-pin components. 6 MONTHS: Upholstery, finish and rubber grips. ALL OTHER PARTS not mentioned, one year from the date of purchase to the original purchaser.
