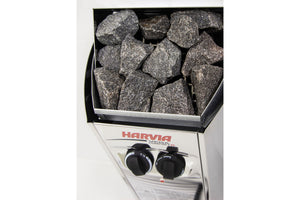

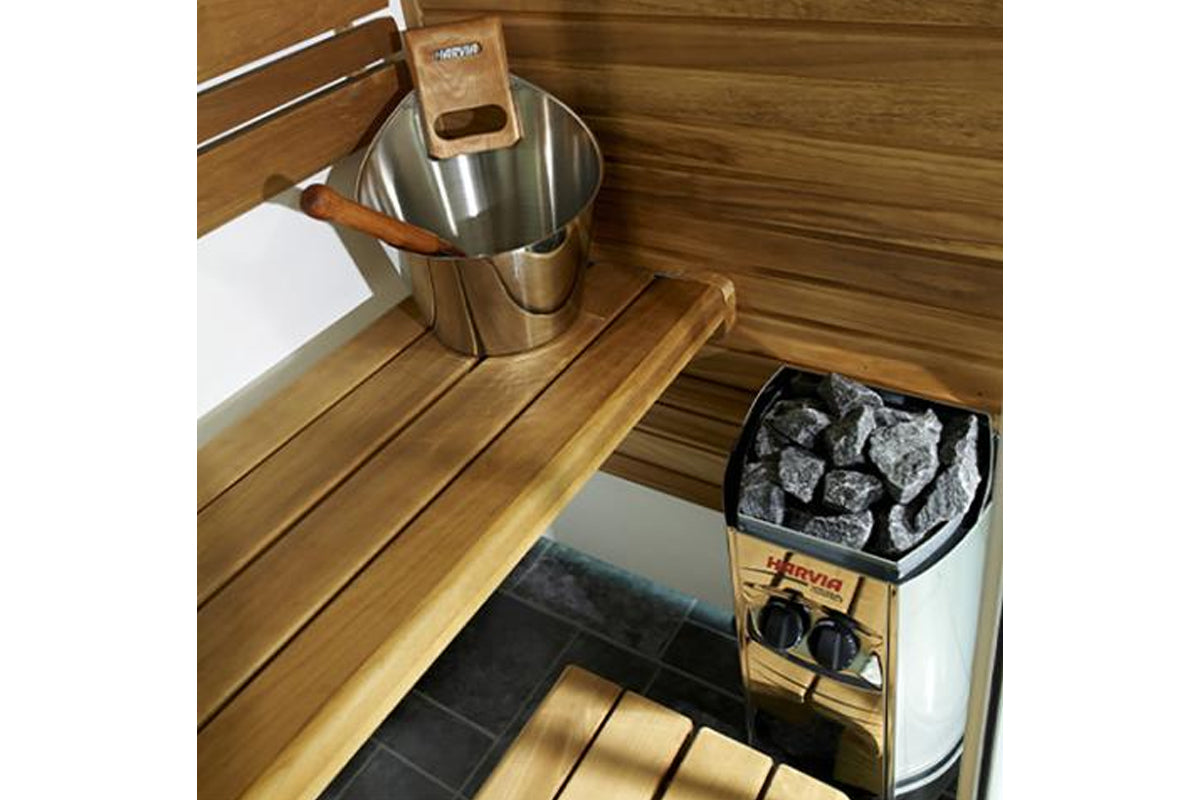

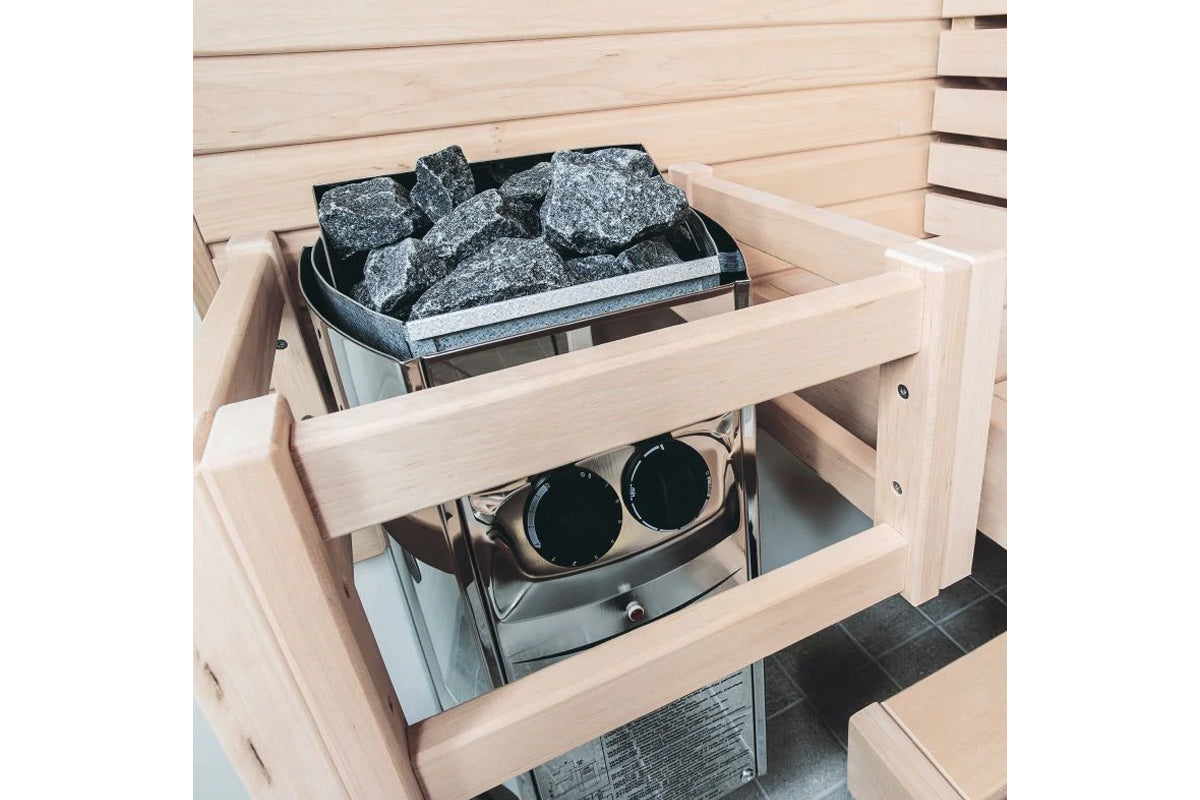

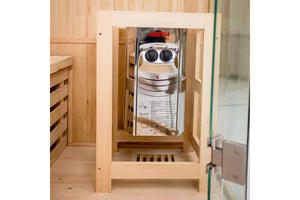

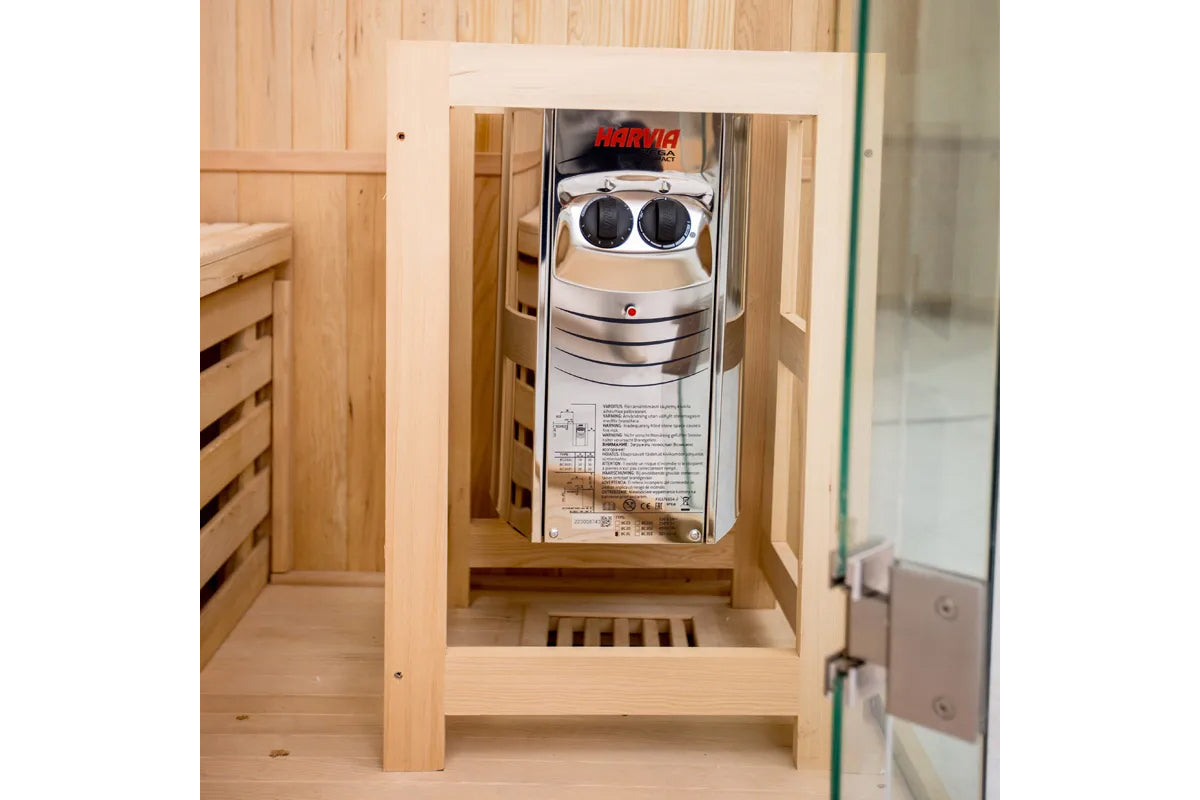

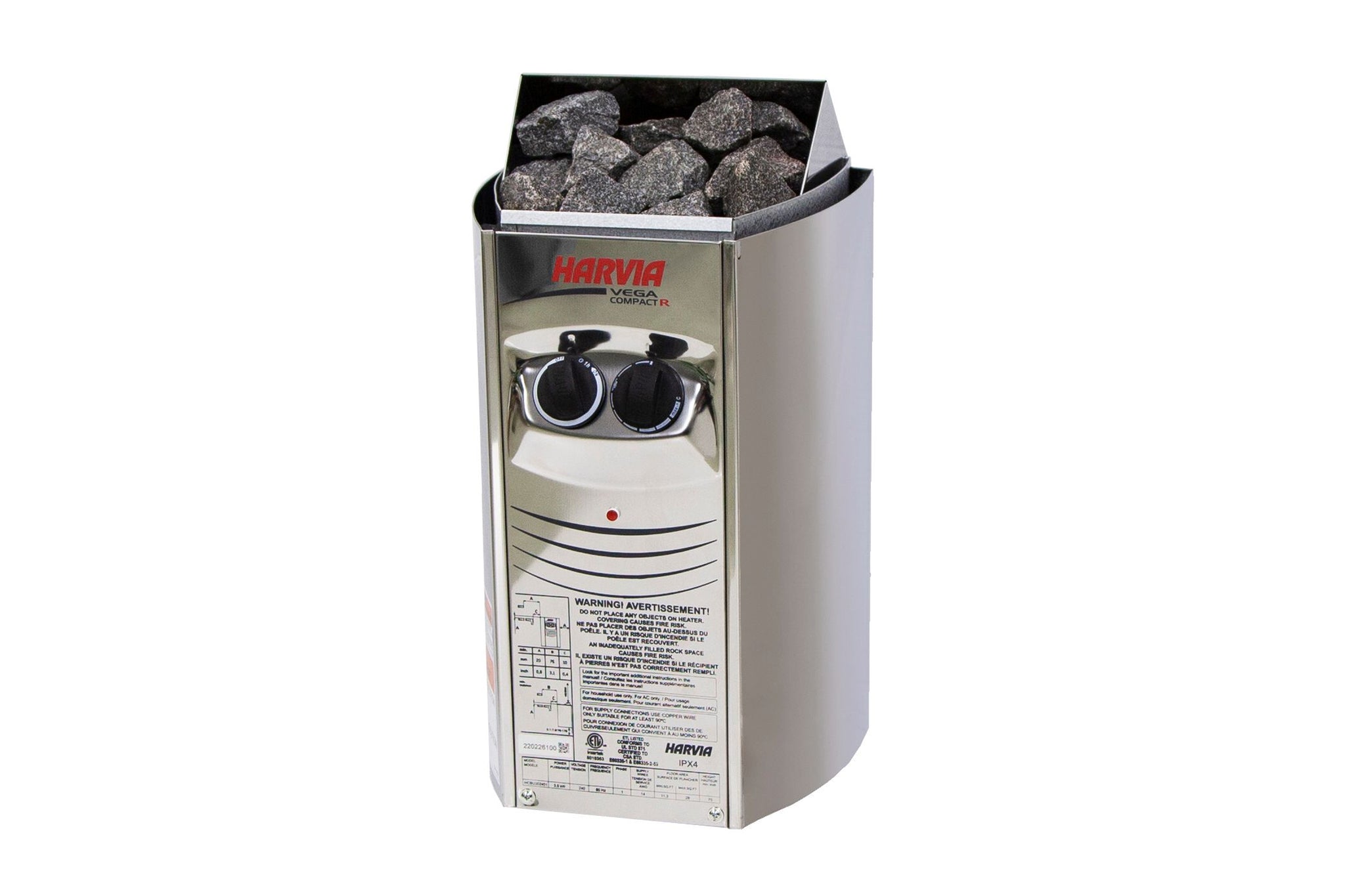

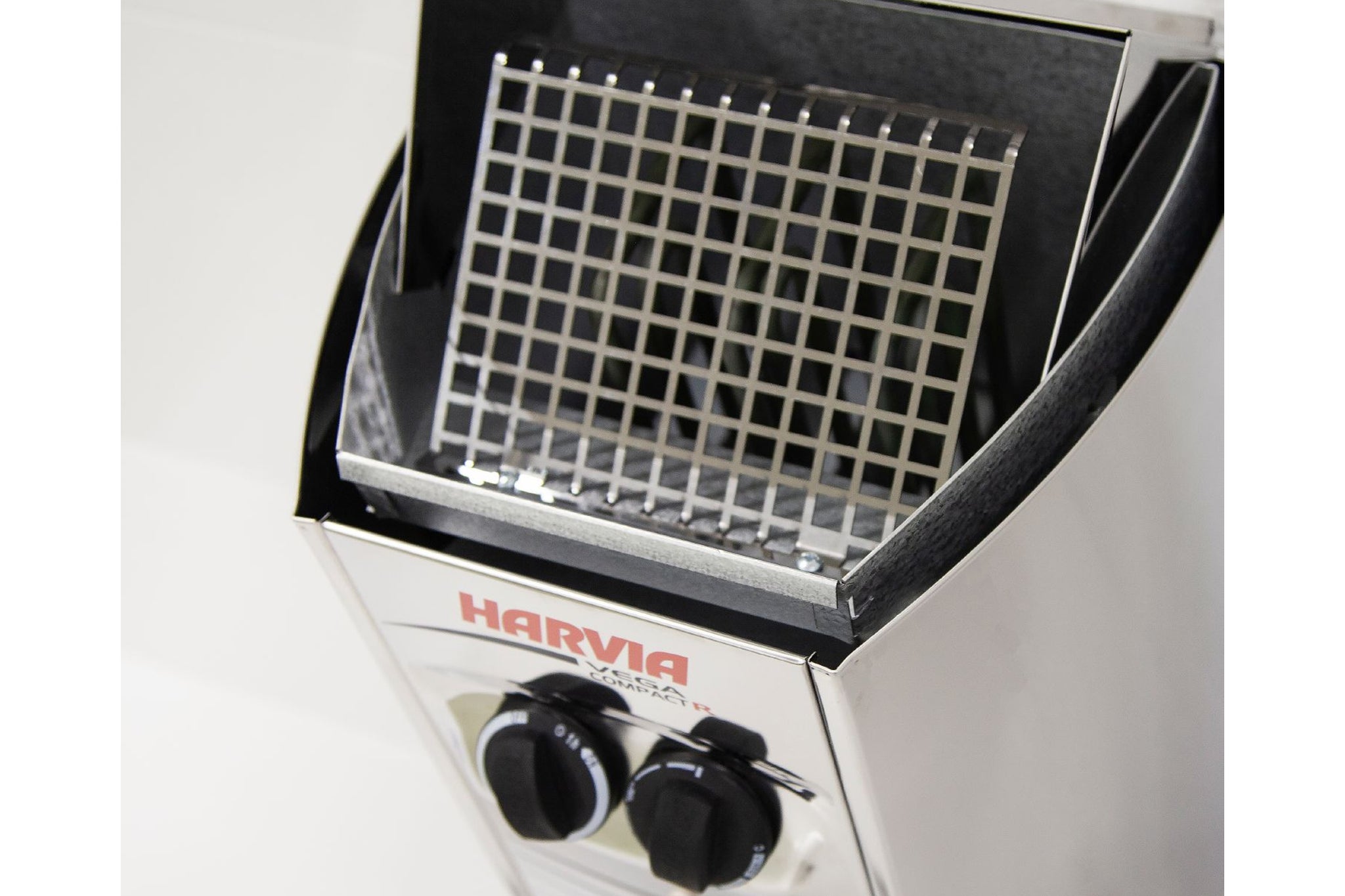

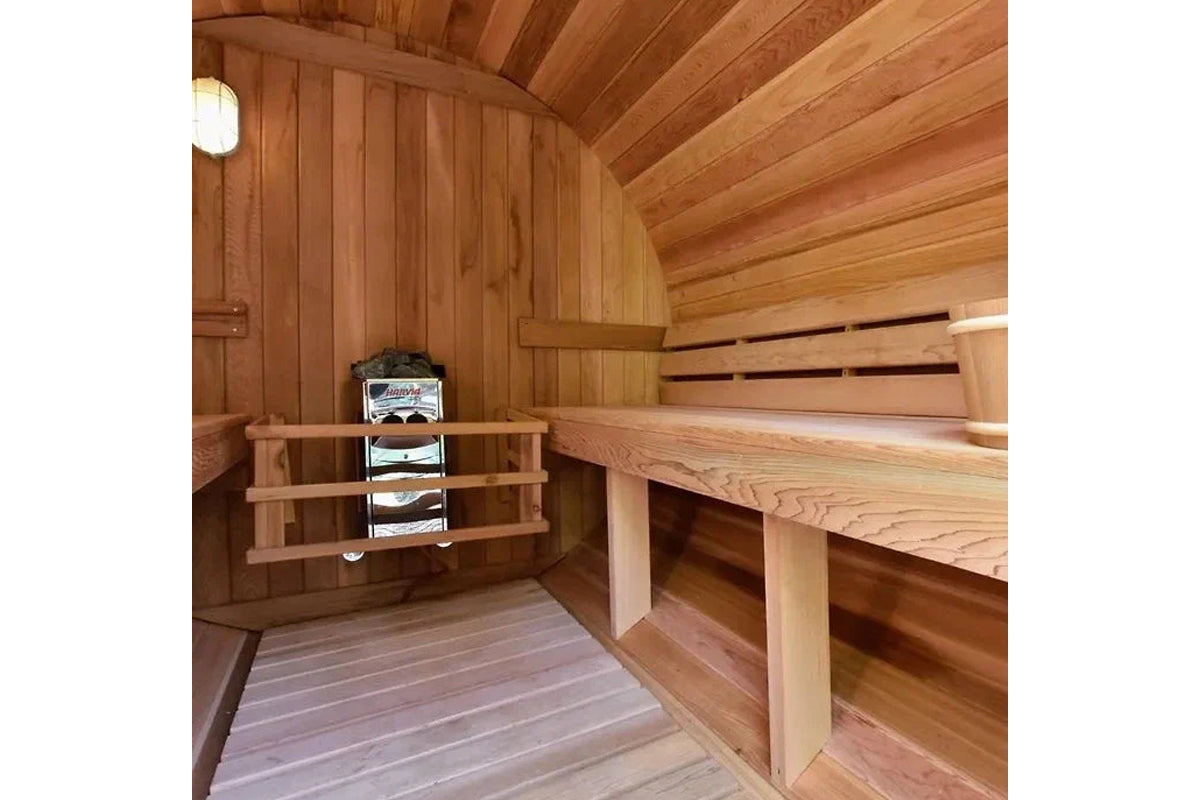

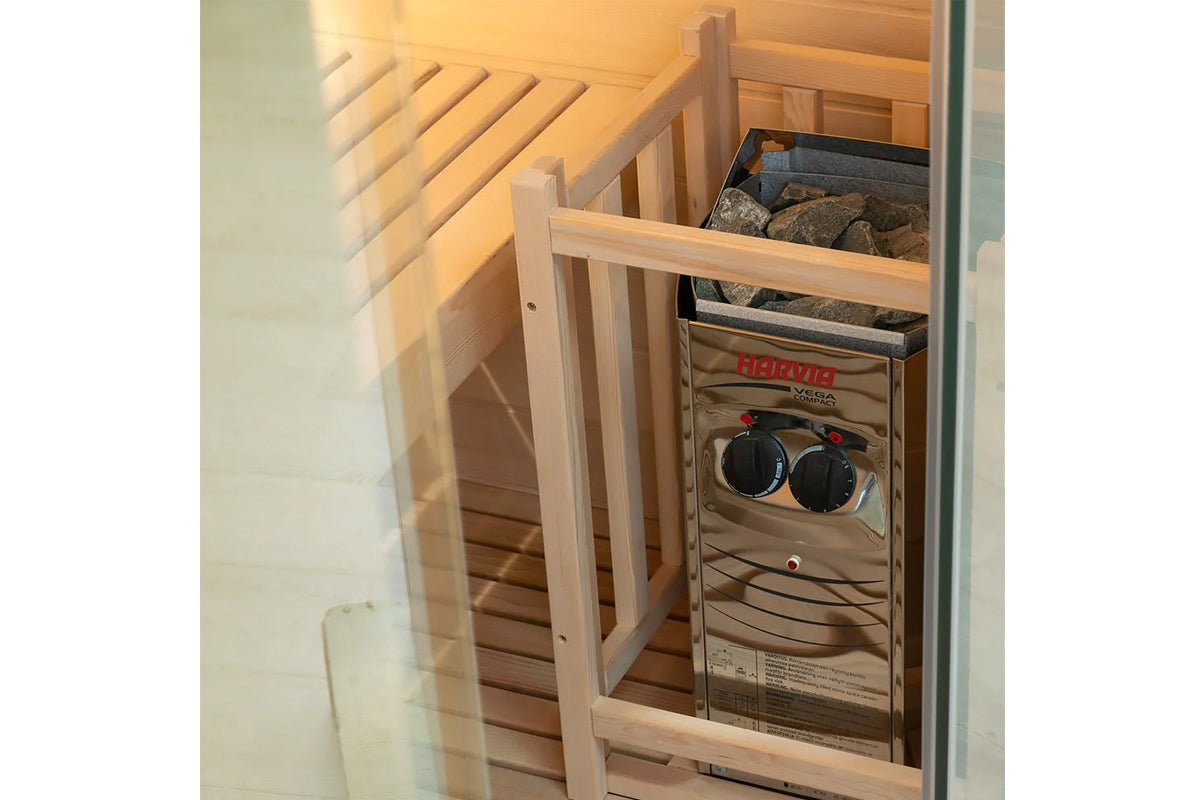

The Harvia Vega Compact R Electric Heater is a true powerhouse heater for small saunas. The Vega sauna heater’s operating switches are located near the top of the heater, making the Vega Compact R heater easy and ergonomic to use. The Vega Compact R sauna heater can be installed particularly low on the sauna wall. This allows the heat to spread evenly throughout the sauna, ensuring that the lower benches also enjoy plenty of heat.
The Vega Compact R is easy to install. Just install the wall rack, lift the heater onto it and secure it in place with one screw. The heater is made of stainless steel. The Vega Compact R models are equipped with a built-in control unit.
Key Features:
- For sauna rooms from 70 to 175 cu. ft.
- Temperature Range: 104F - 194F
- Wall-mounted design
- Stainless Steel construction
- Built-in Dial Controls
- Stone capacity of 29lbs (sold separately)
- Designed, engineered, and made in Finland
*Sauna Heaters are not sold separately - a sauna must be purchased in conjunction with the purpose of any sauna heater or sauna heater package.
Features:
- For sauna rooms from 70 to 175 cu. ft.
- Temperature Range: 104F - 194F
- Wall-mounted design
- Stainless Steel construction
- Built-in Dial Controls
- Stone capacity of 29 lbs (sold separately)
- Designed, engineered, and made in Finland
Technical
Features
User group | Households |
Power output | 1.7 kW |
Control type | Controlled by manual switches |
Installation location | Wall |
Installation orientation | Vertically |
Technical documentation languages | EN FR |
Color | Stainless Steel |
Main material | Steel |
Operating time adjustment range, family sauna, min. | - |
Operating time adjustment range, family sauna, max. | - |
Storage temperature min | 0 ˚C |
Storage temperature max | 50 ˚C |
Use environment | Interior - wet area |
Remote use options | No |
Prime energy/fuel | Electric |
Measurements
Product height | - |
Product width | - |
Product depth (mm) | - |
Stone sizes | Ø5–10 cm |
Weights
Net weight (kg) | 6.3 kg |
Stone amount (kg) | 12 kg |
Distances
Safety distance front (combustible materials) | 0.07874 |
Safety distance to the side wall (combustible materials) | 0.02032 |
Safety distance behind (non-combustible materials) | - |
Safety distance behind (combustible materials) | 0 |
Safety distance right side (combustible materials) | 0.02032 |
Safety distance left side (combustible materials) | 0.02032 |
Safety distance (Ceiling) | 1.1684 |
Safety distance (Floor 3ph) (depends on connections and therefore from output, star/delta) | - |
Safety distance (Floor 1ph) (depends on connections and therefore from output, star/delta) | - |
min. height for assembly | - |
Installation opening height | - |
Installation opening width | - |
Installation opening depth | - |
Room min. recommended volume | 1.996337693051 |
Room max. recommended volume | 3.001585751255 |
Room min. height(depends on connections and therefore from output, star/delta) | 2 |
Electrical
Power table | - |
IP Class (like: IPX4) | IPX4 |
Electrical Frequency | 60 Hz |
Fuses (400V3N~) pcs x ampers | - |
Fuses (400V2N~) pcs x ampers | - |
Fuse (230V1N~) ampers | - |
Supply cable (400V 3N~) mm2 | - |
Supply cable (400V 2N~) mm2 | - |
Supply cable (230V 1N~) mm2 | - |
Electrical group options | 120V 1ph~ 240VAC, 1ph, 60Hz |
Logistics
Package height | - |
Package width | 300 mm |
Package depth | 300 mm |
Gross weight | 7.3 kg |
