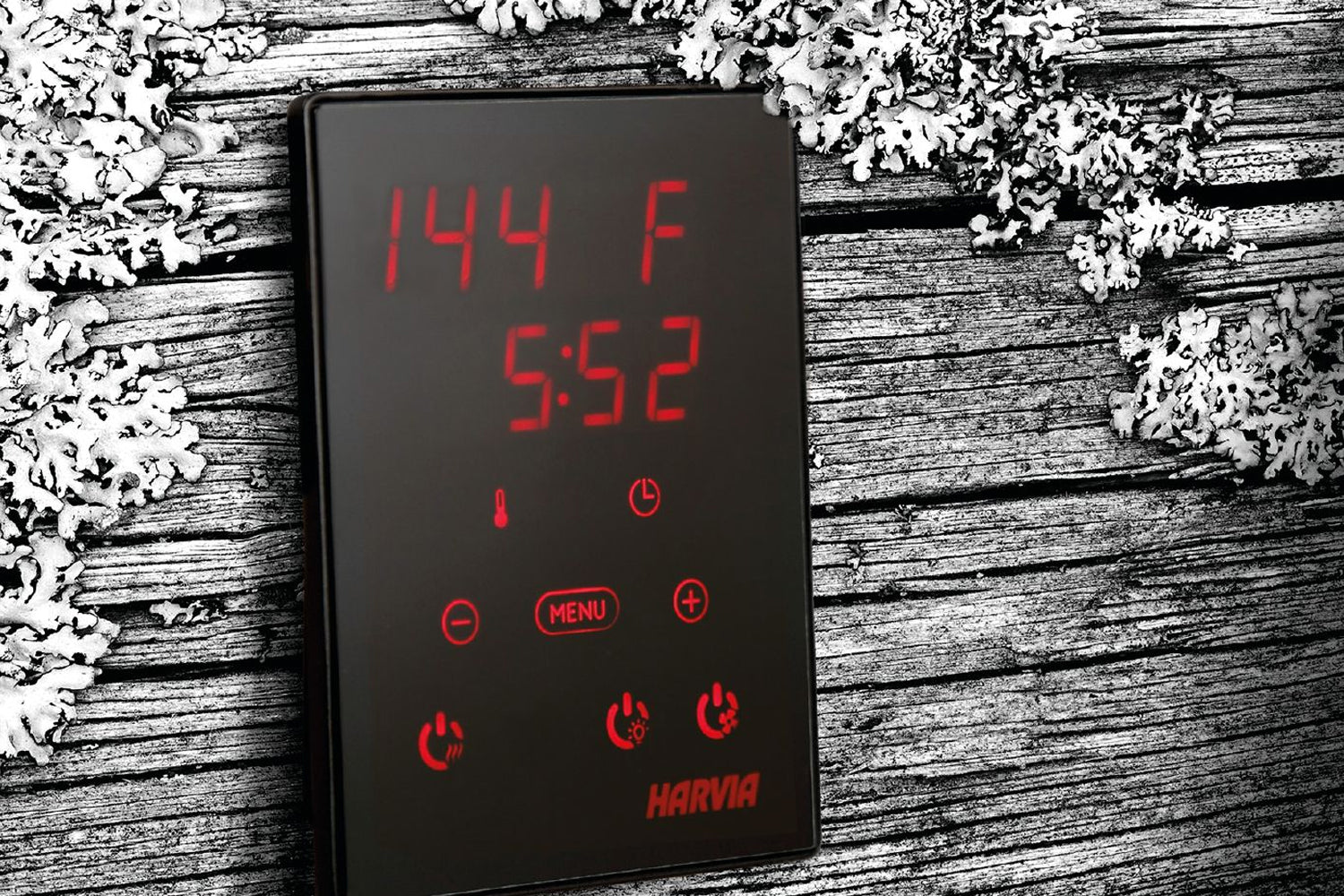

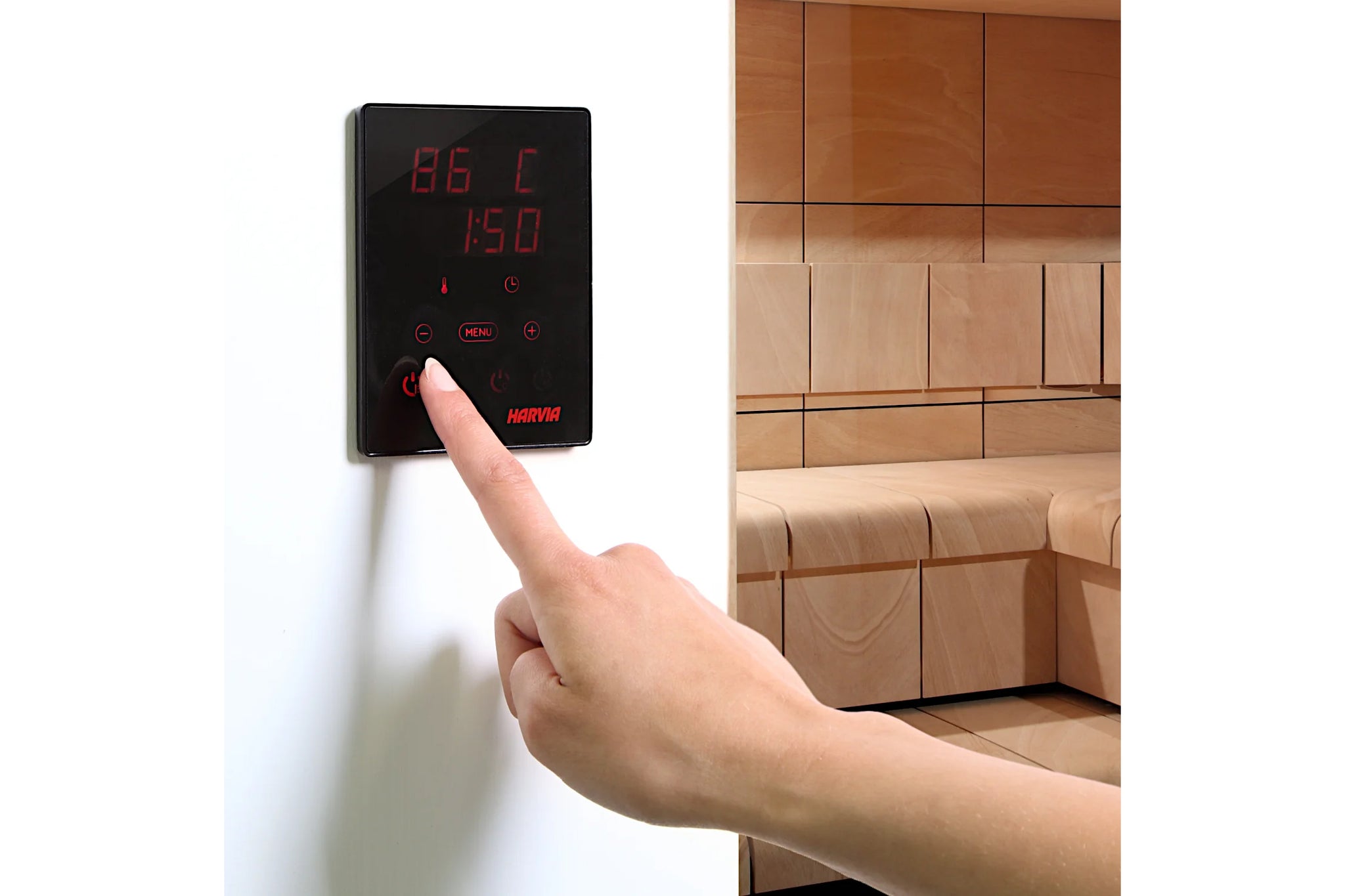

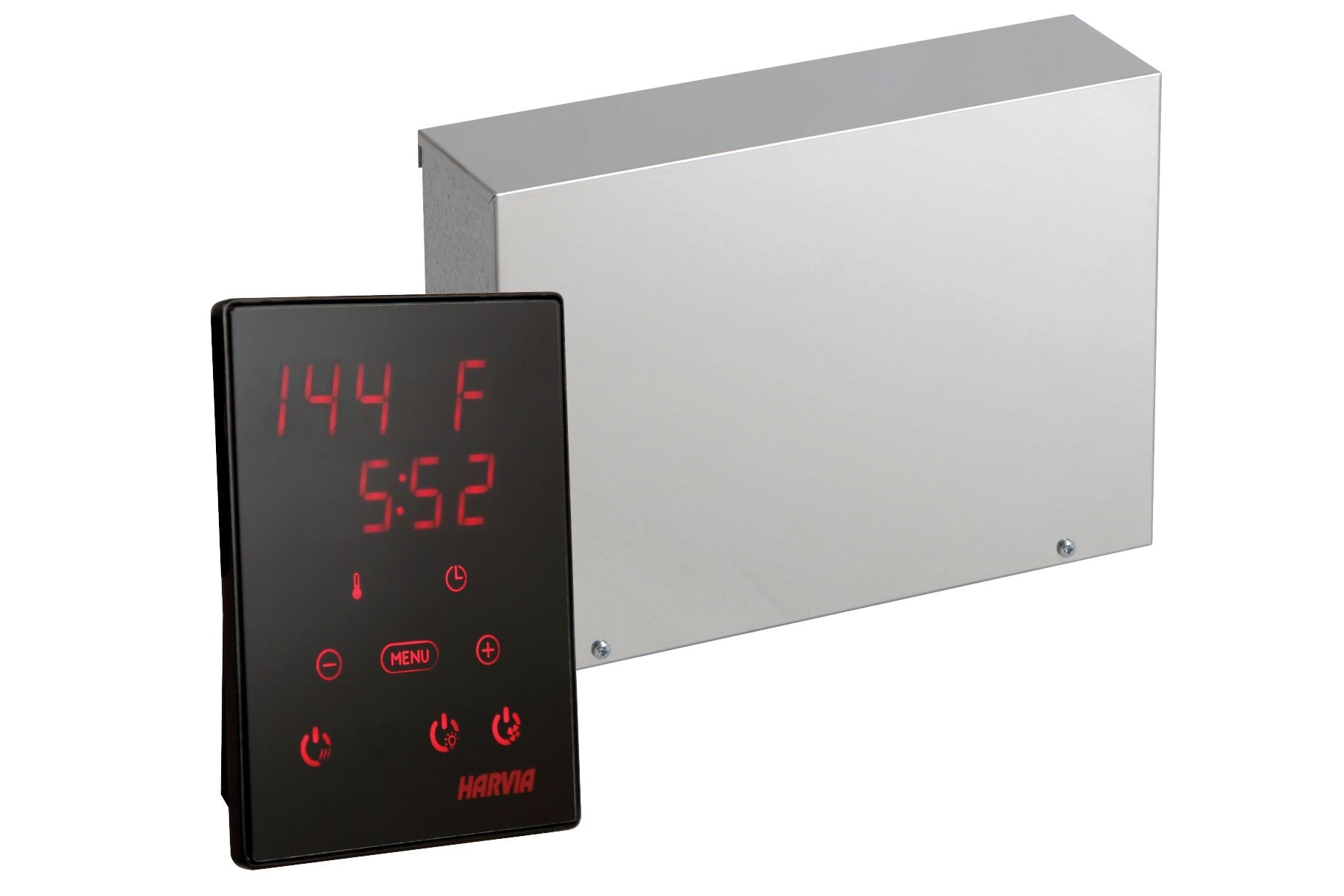

Harvia Xenio is a control unit with a touch control panel. Xenio provides a modern and subtly stylish user interface for controlling the heart of the sauna, the heater. The stylishly small yet clear touch control panel is easy to install where you want it: in the sauna, the shower room, the dressing room, or even the living room. The control panel enables you to see with just one look when your sauna is at the right temperature for you.
Control Your Electric Heater With a Touch
- Temperature adjustment range 104–194 ºF (40–90 °C).
- Timer delay adjustment range 0–12 h.
- Lighting and fan control
Max. load:
- CX30-U1: 11 kW/240V 1 Ph
- CX45-U1: 17 kW /240V 1 Ph
- CX30-U3: 10.5 kW/208V 3 Ph
- CX45-U3: 15 kW/208V 3 Ph
Features:
- Compatibility: Works with Harvia Cilindro, Club, and Virta series heaters (not compatible with Combi).
- Maximum Output: Supports heaters up to 11 kW for efficient heating.
- Power Supply: Available in both 240V 1-phase and 208V 3-phase configurations to suit various setups.
- Temperature Control: Adjustable temperature range from 104–194 °F (40–90 °C) for a personalized sauna experience.
- Timer Settings: Operates for 1–6 hours for family saunas and 1–12 hours for commercial saunas. Pre-set the timer for up to 12 hours for added flexibility.
- Comprehensive Controls: Adjust temperature, operating time, lighting, and fan settings with ease.
- Modern Touchscreen Interface: Sleek, user-friendly touchscreen design for intuitive control and a modern aesthetic.
Technical
Features
User group | Professionals |
Control type | Controlled by a stand-alone digital control panel |
Installation location | Wall |
Installation orientation | Vertically |
Technical documentation languages | - |
Color | Black |
Main material | Steel |
Temperature adjustment range ˚C, min. | - |
Temperature adjustment range ˚C, max. | - |
Ambient temperature min | -10 ˚C |
Ambient temperature max | 40 ˚C |
Control panel type | Xenio |
Use environment | Interior - dry area |
Remote use options | Yes |
Prime energy/fuel | - |
Measurements
Product height | 110 mm |
Product width | 85 mm |
Product depth (mm) | 24 mm |
Control panel width | 85 mm |
Control panel depth | 24 mm |
Control panel height | 110 mm |
Weights
Net weight (kg) | 3.5 kg |
Electrical
IP Class (like: IPX4) | - |
Electrical Frequency | 60 Hz |
Supply cable (400V 3N~) mm2 | - |
Electrical group options | 208VAC, 3ph, 60Hz 240VAC, 1ph, 60Hz |
Logistics
Package height | 80 mm |
Package width | 220 mm |
Package depth | 400 mm |
Gross weight | 3.7 kg |
