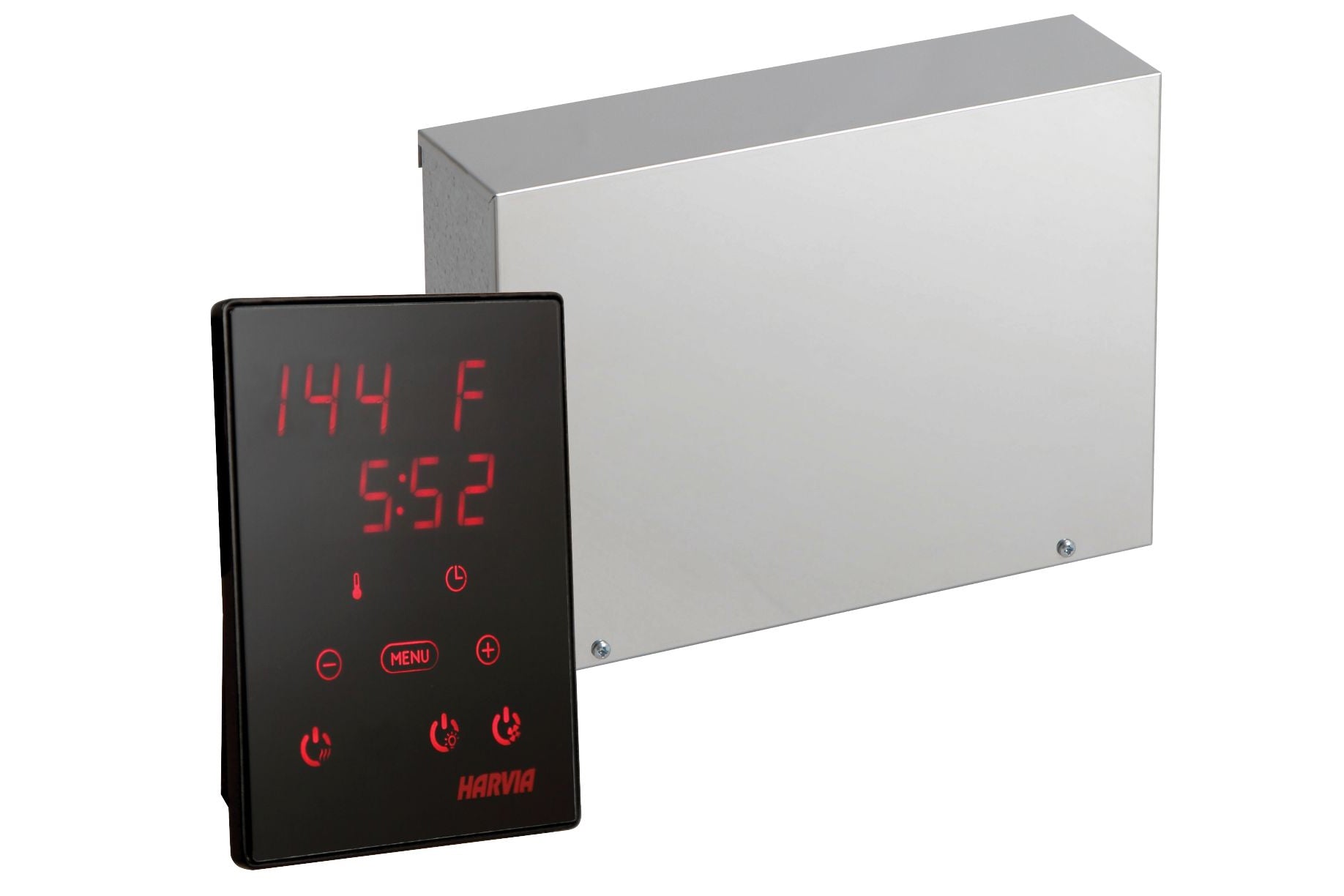

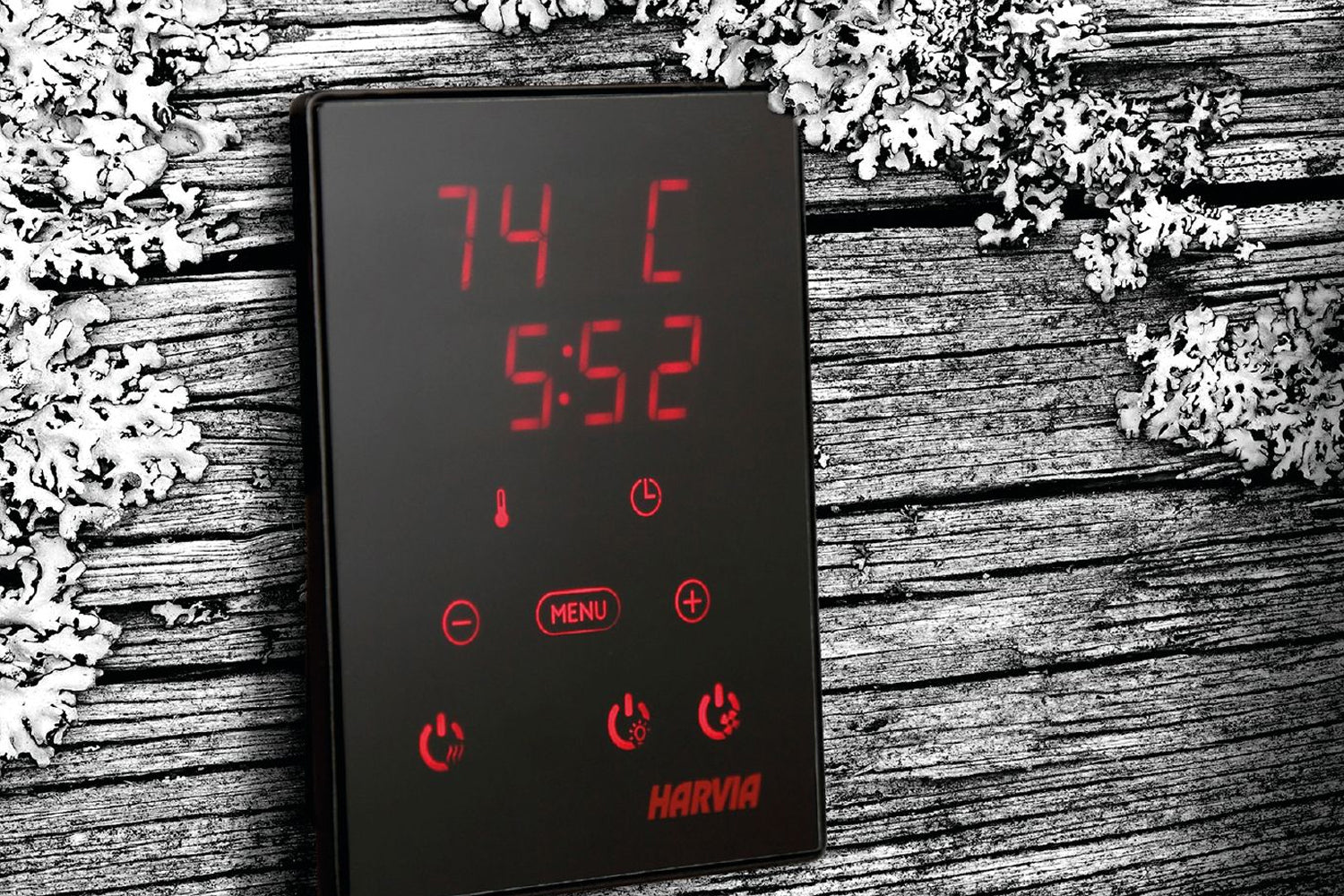

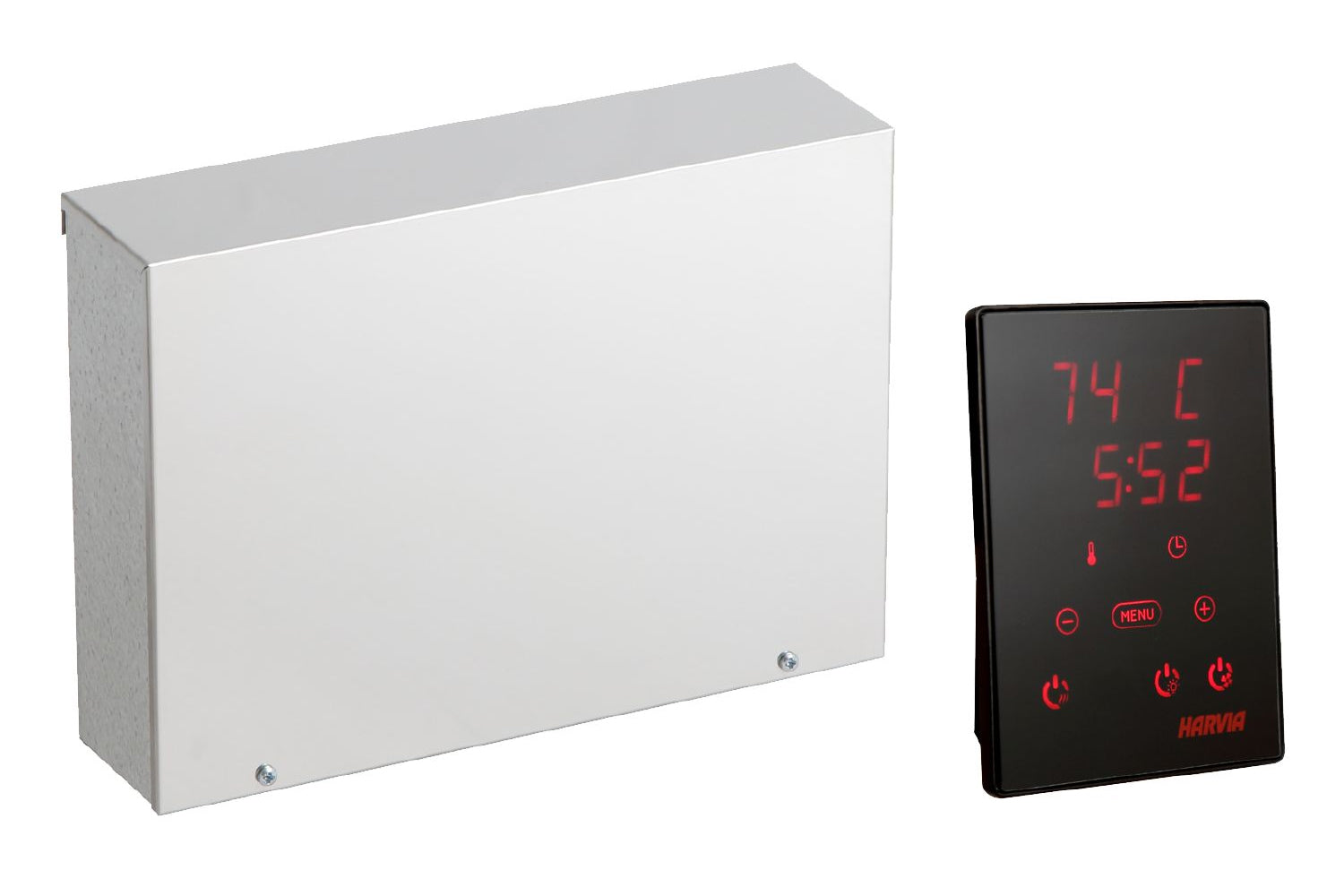

Harvia Xenio CX170 Sauna Heater Control Unit is a sauna heater control unit with a touch control panel. Xenio provides a modern and subtly stylish user interface for controlling the heart of the sauna, the heater. The stylishly small yet clear touch control panel is easy to install where you want it: in the sauna, the shower room, the dressing room, or even the living room. The multi-functional control panel enables you to see with just one look when your sauna is at the right temperature for you.

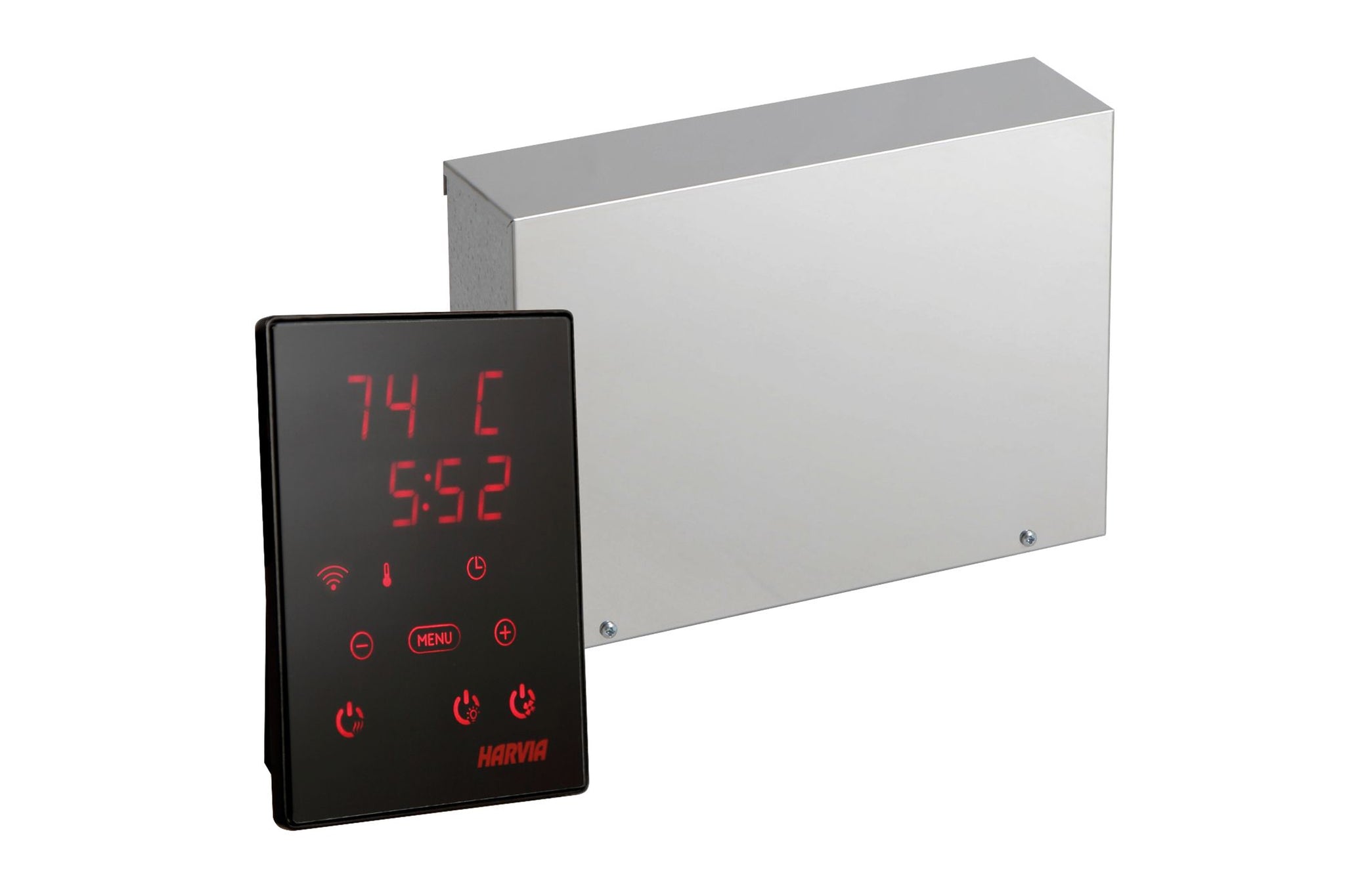

The Harvia Xenio CX170 WIFI is a sauna control unit equipped with a touch-screen control panel and remote control. Use the Xenio CX170 control unit to control your electric-heater sauna in a modern and easy way. Use the MyHarvia mobile application to control your sauna functions wirelessly.
Harvia Xenio CX170 WIFI control unit is compatible with the sauna door sensor or heater safety equipment, enabling safe remote control. With the Xenio control panel and mobile device you can control your sauna and see at a glance when it will be just the right temperature for you. The small but clear touch-screen control panel is easy to install in the sauna, bathroom or in the living room. The multi-function Harvia Xenio CX170 WIFI control unit is also suitable for professional use.
For controlling electric heater
- Temperature adjustment range 40–110 ˚C
- Operating time adjustment range: family sauna 1–6 h, commercial sauna 1–12 hours
- Pre-setting time adjustment range 0–12 hours
- Lighting and fan control
- Maximum output 17 kW (can be extended to 34 kW with LTY17 power extension unit)
- Power unit supply voltage 400 V 3N~

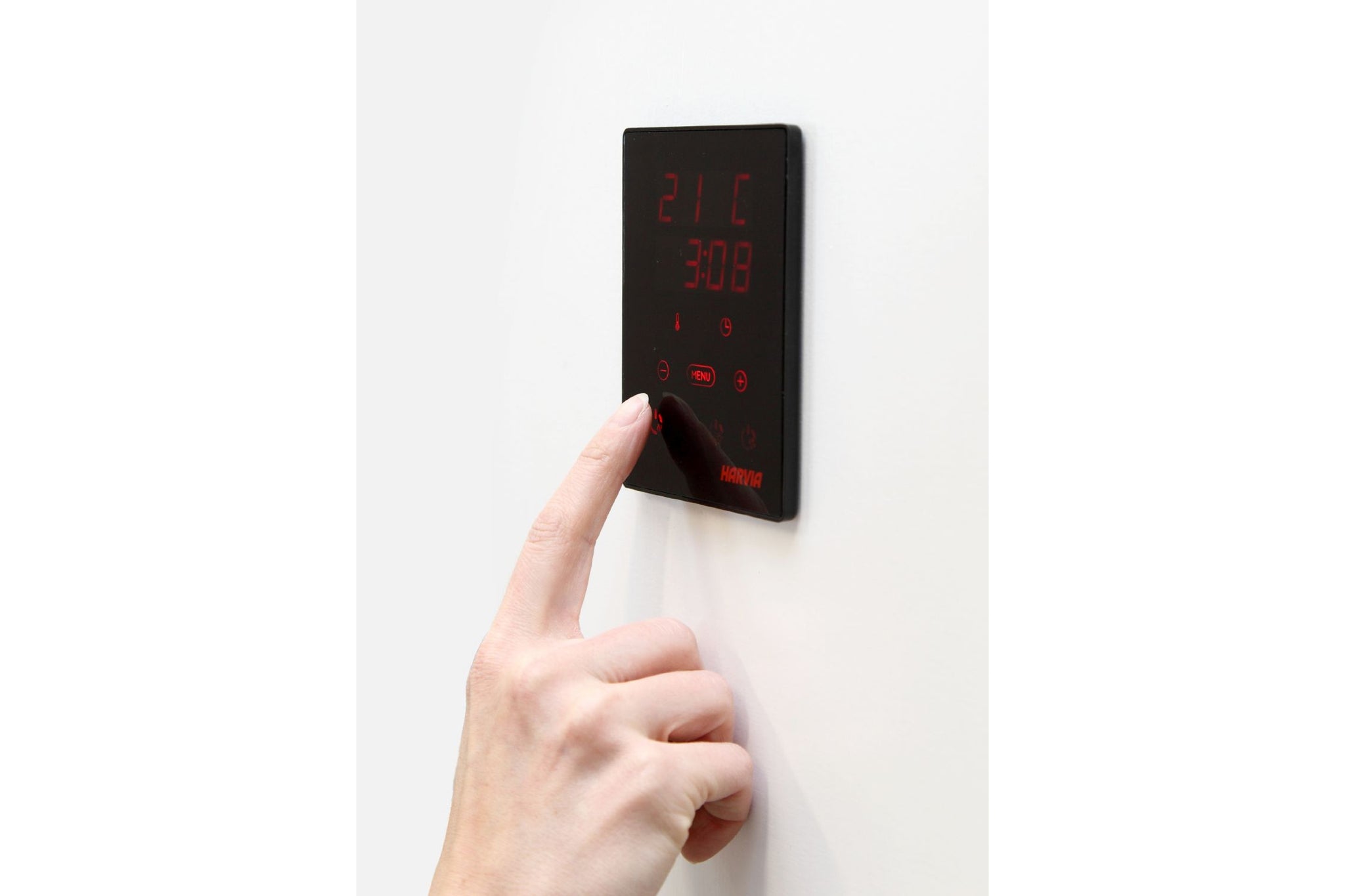

Control With Touch
- Durable and reliable remote control unit for sauna
- Control your sauna – the temperature, lighting and air ventilation – remotely with the MyHarvia mobile application.
- Read more about the MyHarvia mobile application at www.myharvia.com.
- The Xenio WiFi control panel is easy to install in the sauna or in a dry space. Control panel doubling as WiFi transmitter and receiver
- A separate power unit installed in a dry space enables a range of connections for lighting, safety equipment and ventilation
- Compatible with electric heater, max 17 kW
- Remote use is safe thanks to safety equipment. Compatible with sauna door sensor and heater safety equipment
- Compatible with supplementary power unit if power need exceeds 17 kW
Technical
Features
User group | Professionals |
Power output | - |
Control type | Controlled by a stand-alone digital control panel |
Installation location | Wall |
Installation orientation | Vertically |
Technical documentation languages | - |
Color | Black |
Main material | Steel |
Temperature adjustment range ˚C, min. | - |
Temperature adjustment range ˚C, max. | - |
Operating time adjustment range, family sauna, min. | - |
Operating time adjustment range, family sauna, max. | - |
Ambient temperature min | -10 ˚C |
Ambient temperature max | 40 ˚C |
Storage temperature min | - |
Storage temperature max | - |
Control panel type | Xenio |
Use environment | Interior - dry area |
Remote use options | No |
Prime energy/fuel | - |
Measurements
Product height | - |
Product width | - |
Product depth (mm) | - |
Control panel width | - |
Control panel depth | - |
Power unit height | - |
Power unit width | - |
Power unit depth | - |
Control panel height | - |
Weights
Net weight (kg) | 1.8 kg |
Electrical
IP Class (like: IPX4) | - |
Electrical Frequency | 50/60 Hz |
Fuses (400V3N~) pcs x ampers | - |
Supply cable (400V 3N~) mm2 | 5 x 2.5 mm2 |
Max. Connection power for light | - |
Max. Connection power for light (dimmable) | - |
Max. Connection power for fan | - |
Max. Connection power for fan (dimmable) | - |
Max. Conection power for OUT1 | - |
Electrical group options | 240VAC, 1ph, 60Hz |
Logistics
Package height | - |
Package width | 220 mm |
Package depth | 400 mm |
Gross weight | 2.2 kg |
