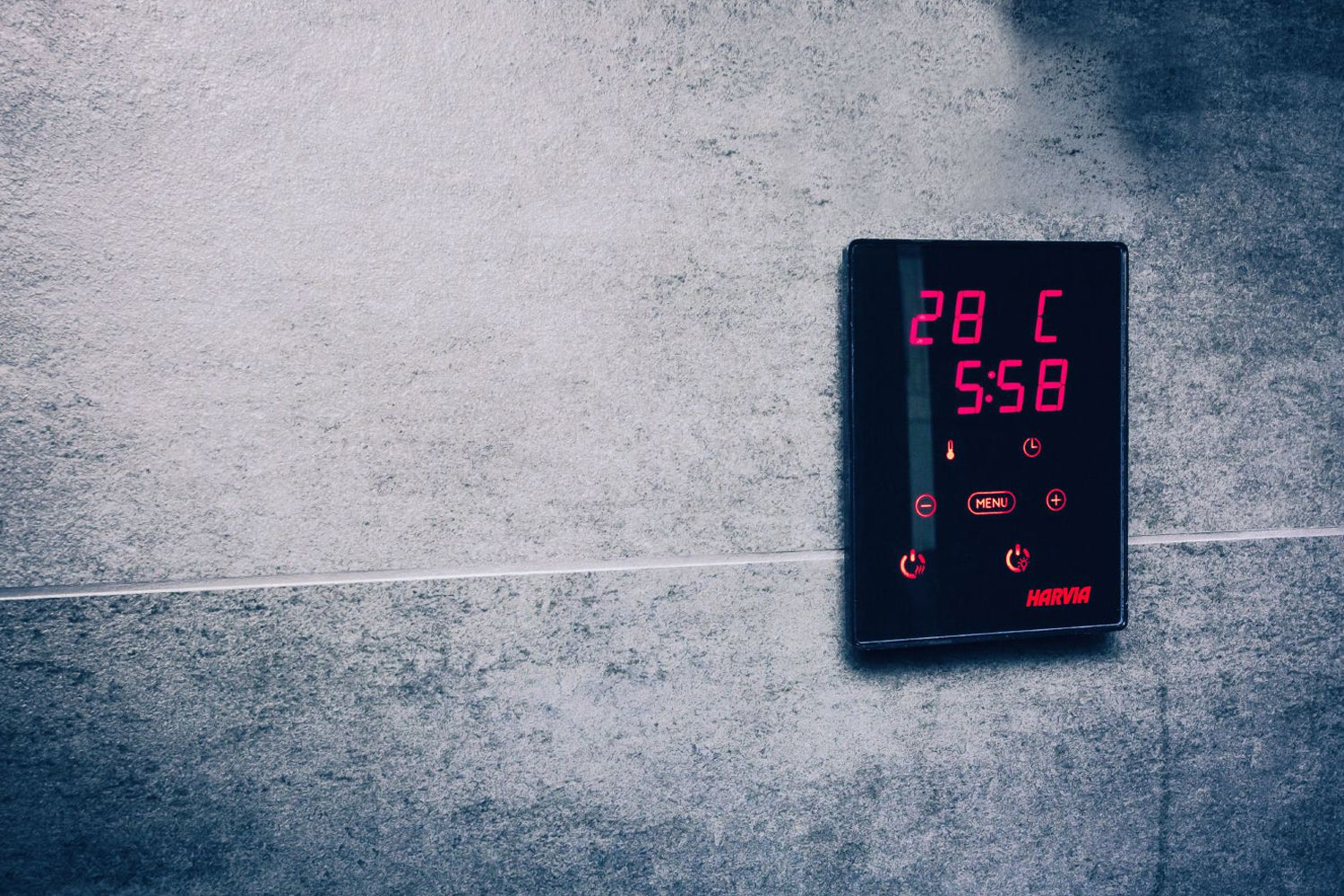

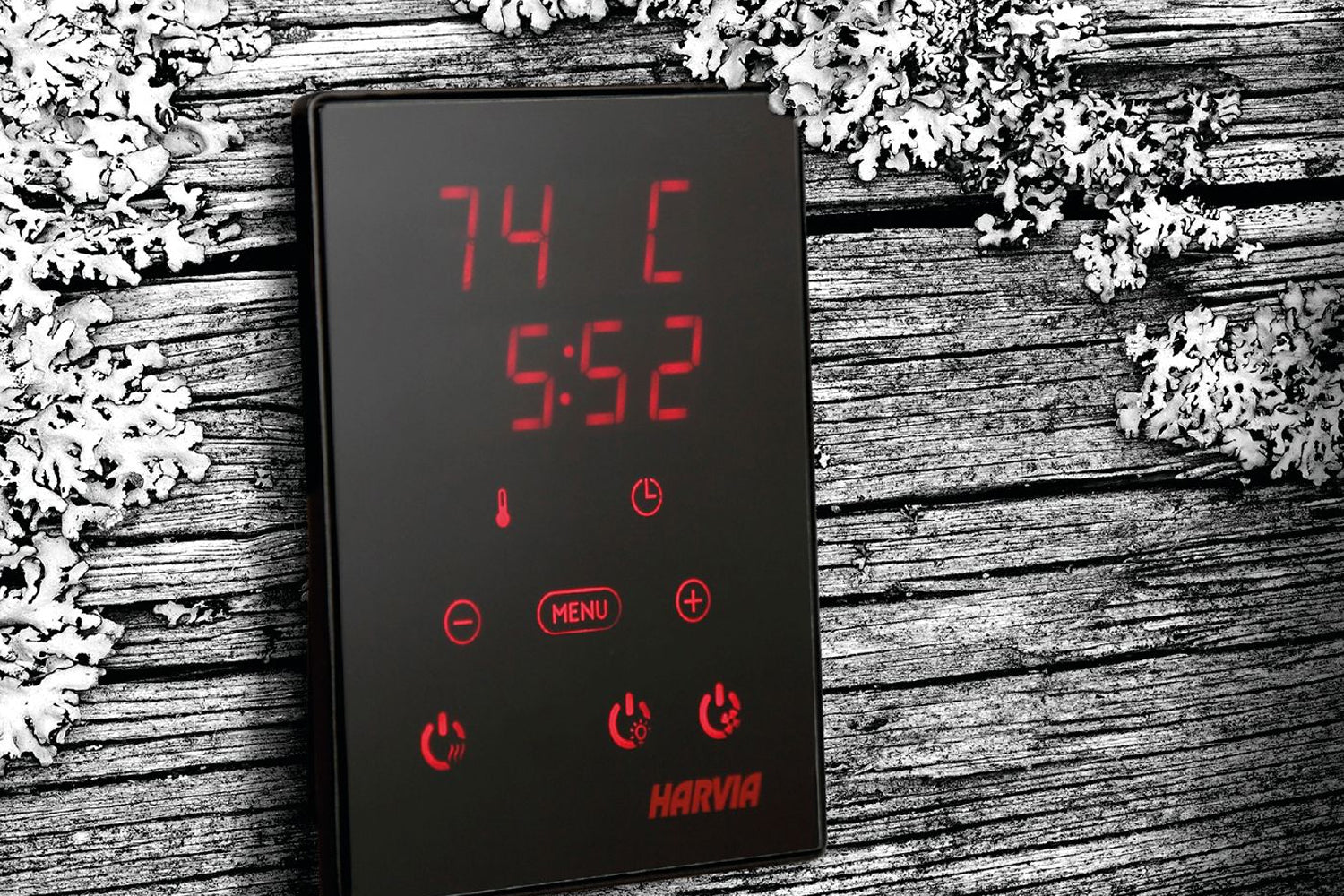

The Harvia Xenio CX110 Sauna Heater Control Unit is a control unit with a touch control panel. Xenio provides a modern and subtly stylish user interface for controlling the heart of the sauna, the heater. The stylishly small yet clear touch control panel is easy to install where you want it: in the sauna, the shower room, the dressing room, or even the living room. The control panel enables you to see with just one look when your sauna is at the right temperature for you.
For controlling electric heater
- Temperature adjustment range 40–110 ˚C
- Operating time adjustment range: family sauna 1–6 hours, commercial sauna 1–12 hours
- Pre-setting time - adjustment range 0–12 hours
- Lighting and fan control
- Maximum output 11kW
- Power unit supply voltage 400 V 3N~

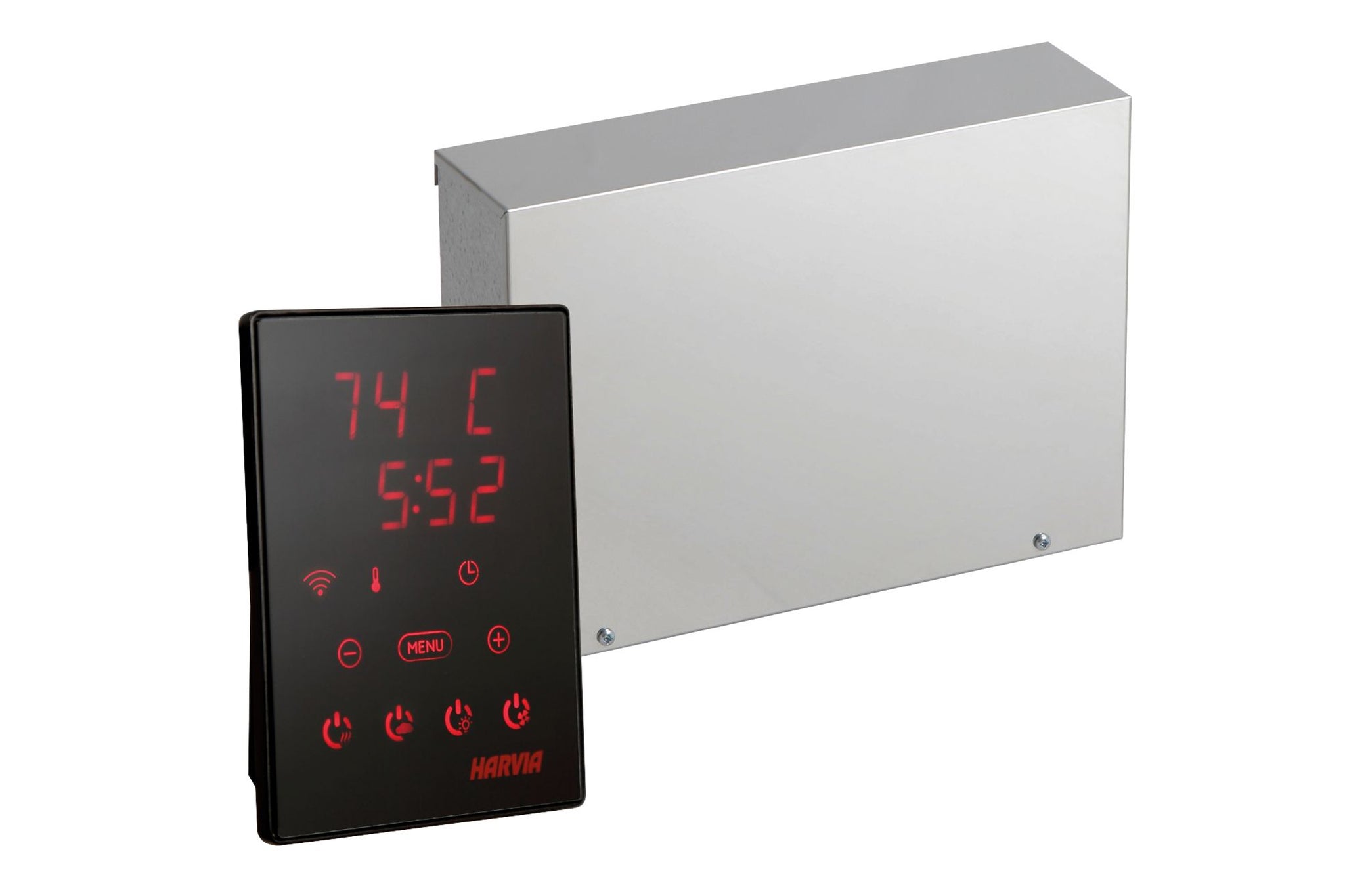

The Harvia Xenio Combi CX110C WIFI is a control unit equipped with a touch-screen control panel and remote control for traditional heaters and those equipped with a steamer. With a Xenio Combi CX110CXW WIFI control unit, you can control your sauna in modern fashion. Use the MyHarvia mobile application to control your sauna functions wirelessly. Learn more about MyHarvia at www.myharvia.com
With a Harvia Xenio Combi control unit, you can control your sauna functions remotely with a compatible door sensor and heater safety equipment. With the control panel and mobile device you can control your sauna and see at a glance when it will be just the right temperature for you. The small but clear touch-screen control panel is easy to install in the sauna, washroom or, for example, in the living room. The multi-function Harvia Xenio Combi CX110CXW WIFI control unit is also suitable for professional use.
Control With Touch
- Durable and reliable WiFi remote control unit for sauna
- Control your sauna – the temperature, humidity, lighting and air ventilation – with the MyHarvia mobile application.
- Read more about the MyHarvia mobile application at www.myharvia.com.
- The separate Xenio WiFi control panel is easy to install in the sauna or in a dry space. Control panel doubling as WiFi transmitter and receiver

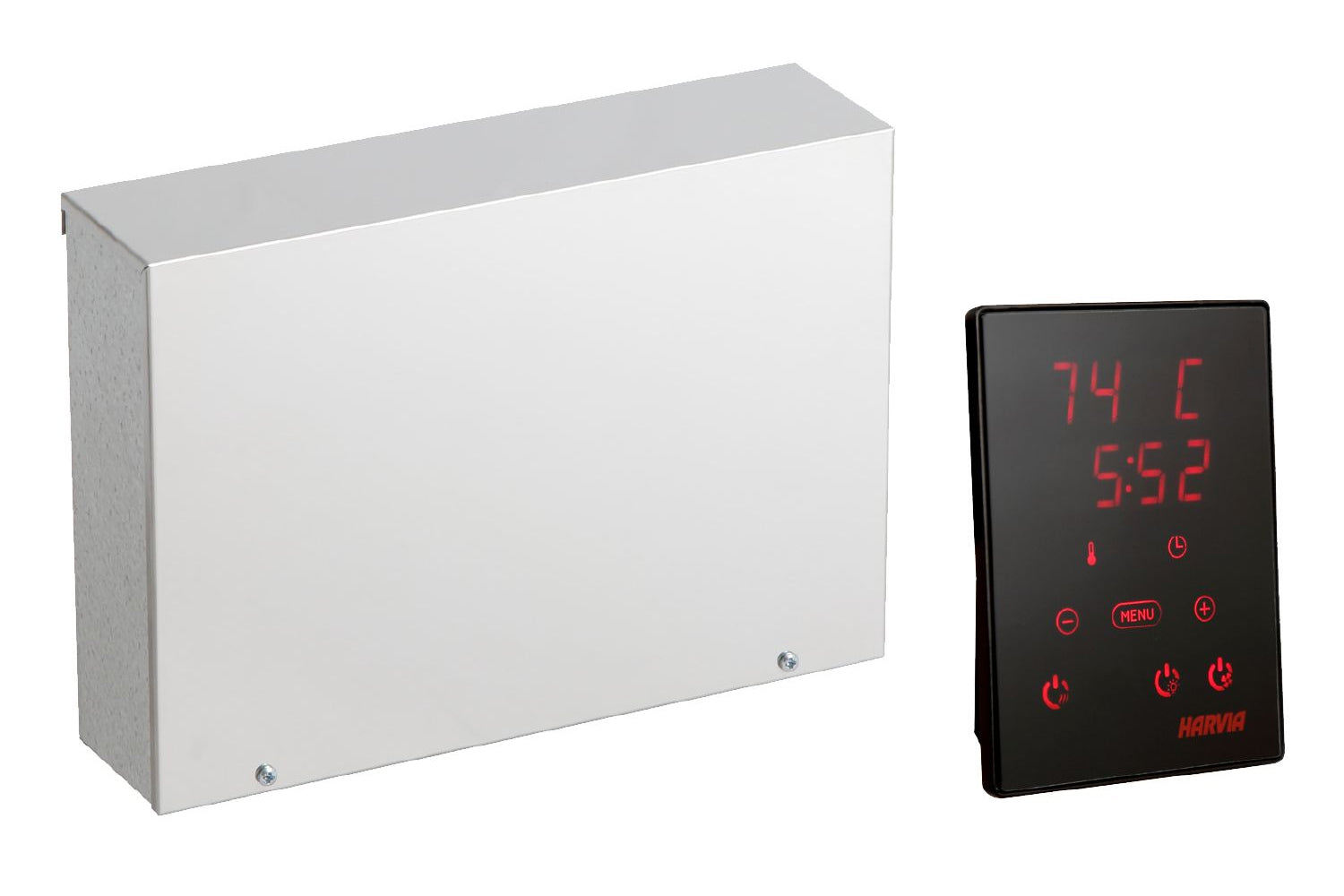

- A separate power unit installed in a dry space enables a range of connections for lighting, safety equipment and ventilation
- Compatible with a traditional or a steamer combi heater (max. 11 kW) or sauna steaming unit (max 3.6 kW)
- Remote use is safe thanks to safety equipment.
- Compatible with sauna door sensor and heater safety equipment Compatible with supplementary power units if need exceeds 11 kW
Technical
Features
User group | Households |
Power output | 11 kW |
Control type | Controlled by a stand-alone digital control pane |
Installation location | Wall |
Installation orientation | Vertically |
Technical documentation languages | - |
Color | Black |
Main material | Steel |
Temperature adjustment range ˚C, min. | 40 ˚C |
Temperature adjustment range ˚C, max. | 110 ˚C |
Operating time adjustment range, family sauna, min. | - |
Operating time adjustment range, family sauna, max. | - |
Ambient temperature min | 5 ˚C |
Ambient temperature max | 50 ˚C |
Storage temperature min | - |
Storage temperature max | - |
Control panel type | Xenio |
Use environment | Interior - dry area |
Remote use options | No |
Prime energy/fuel | Electric (high voltage 400V/230V 1/3N~) |
Measurements
Product height | 110 mm |
Product width | 85 mm |
Product depth (mm) | 24 mm |
Control panel width | 85 mm |
Control panel depth | 24 mm |
Power unit height | - |
Power unit width | - |
Power unit depth | - |
Control panel height | 110 mm |
Weights
Net weight (kg) | 1.8 kg |
Distances
Sensor cable lenght | 5 m |
Electrical
IP Class (like: IPX4) | - |
Electrical Frequency | 50/60 Hz |
Fuses (400V3N~) pcs x ampers | - |
Supply cable (400V 3N~) mm2 | 5 x 2.5 mm2 |
Max. Connection power for light | 100 W |
Max. Connection power for light (dimmable) | - |
Max. Connection power for fan | - |
Max. Connection power for fan (dimmable) | - |
Max. Conection power for OUT1 | 100 W |
Electrical group options | 400V 3N~ |
Logistics
Package height | 85 mm |
Package width | 220 mm |
Package depth | 395 mm |
Gross weight | 2.2 kg |
