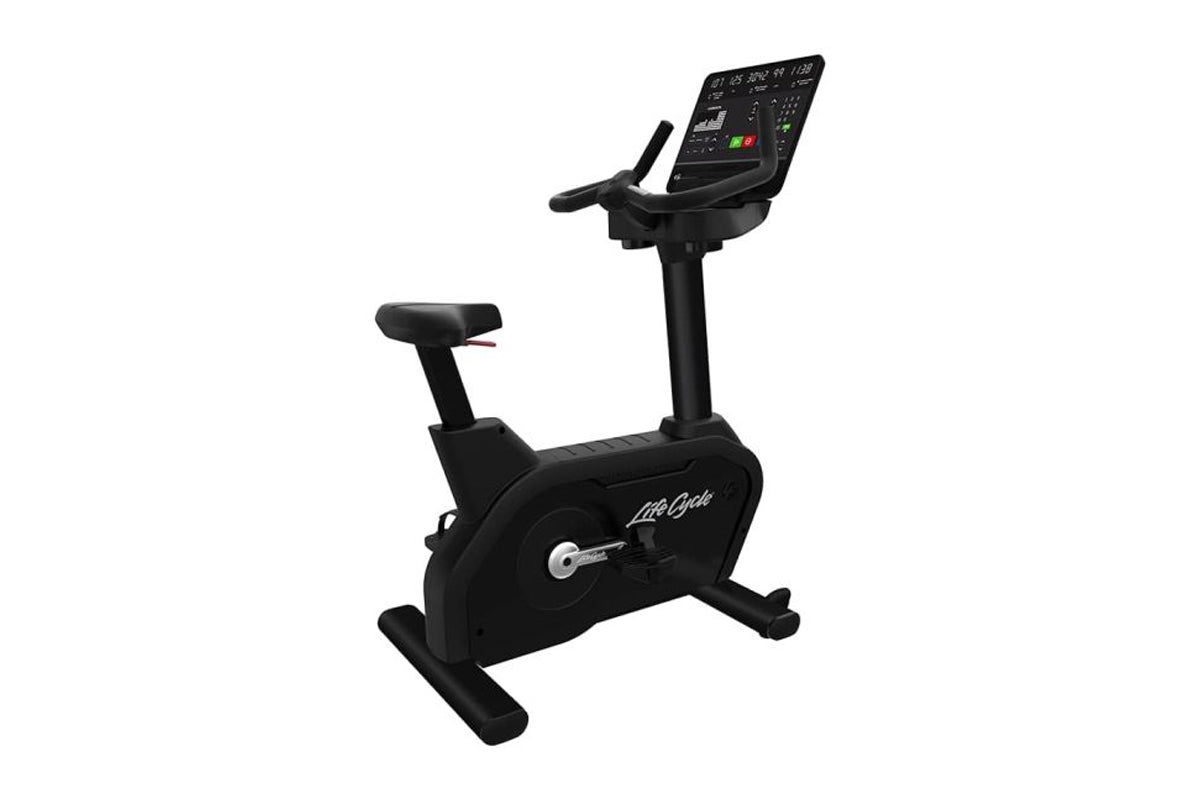

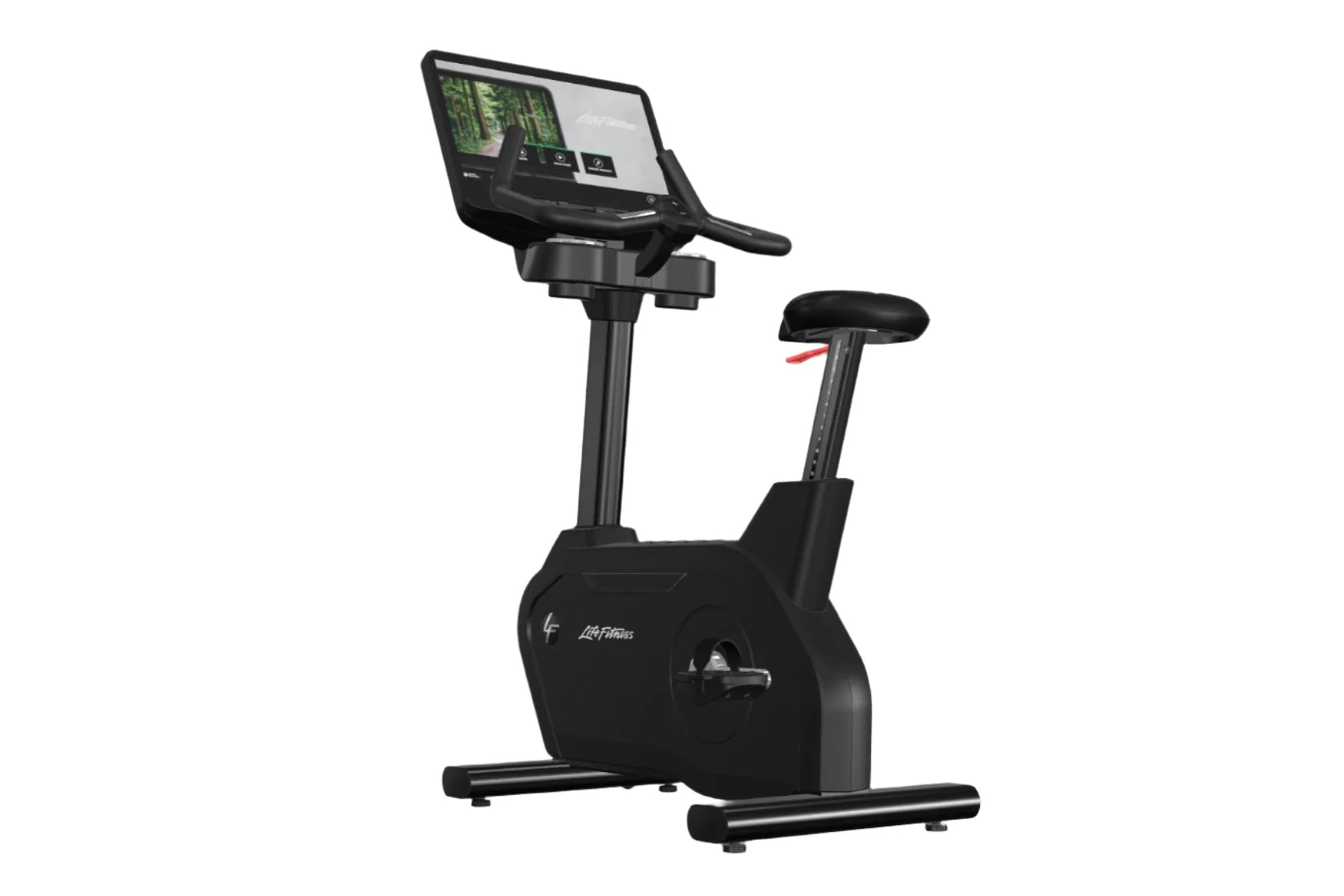

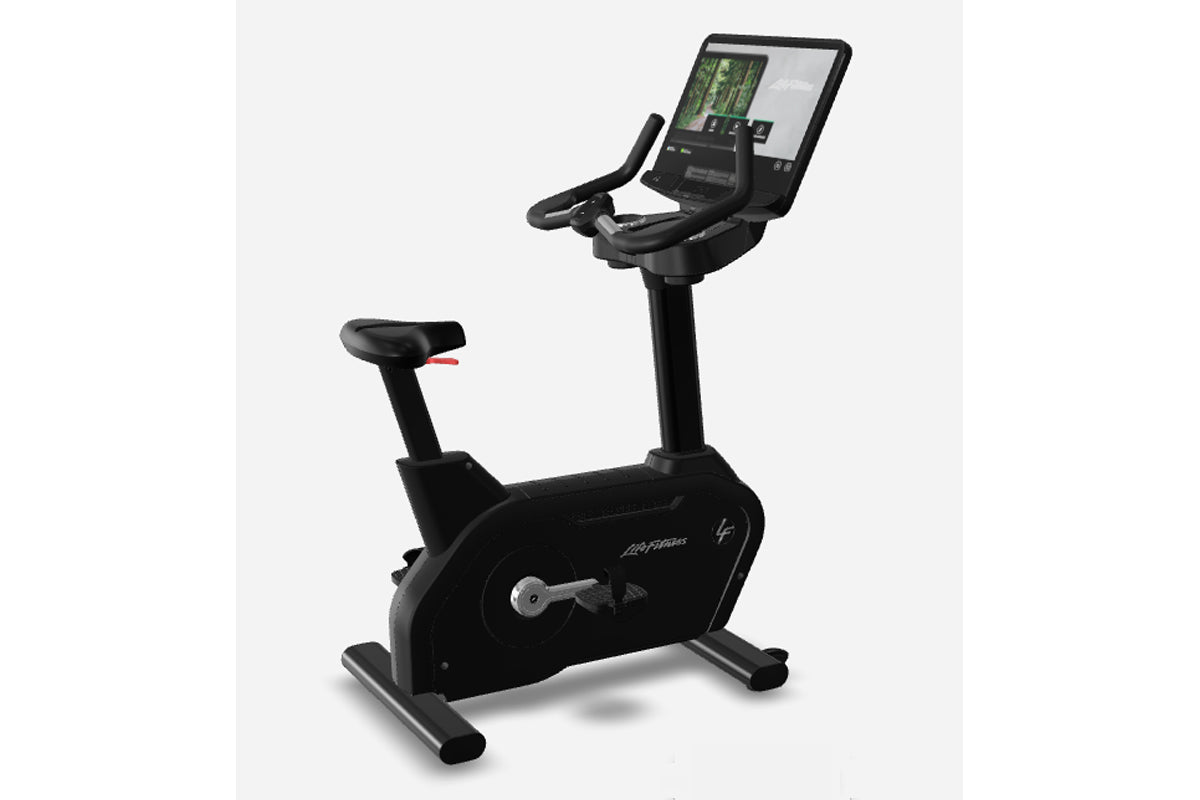

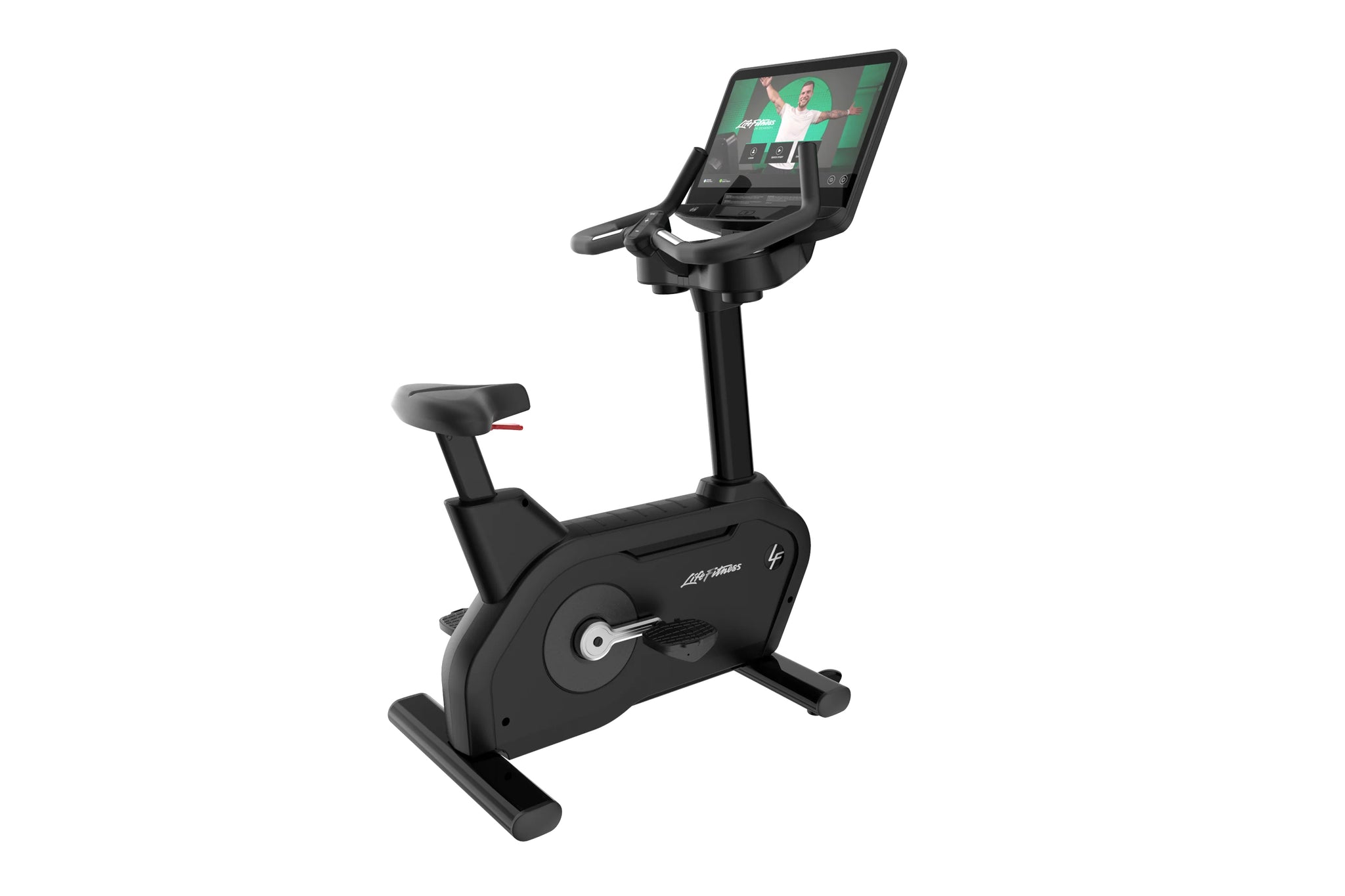

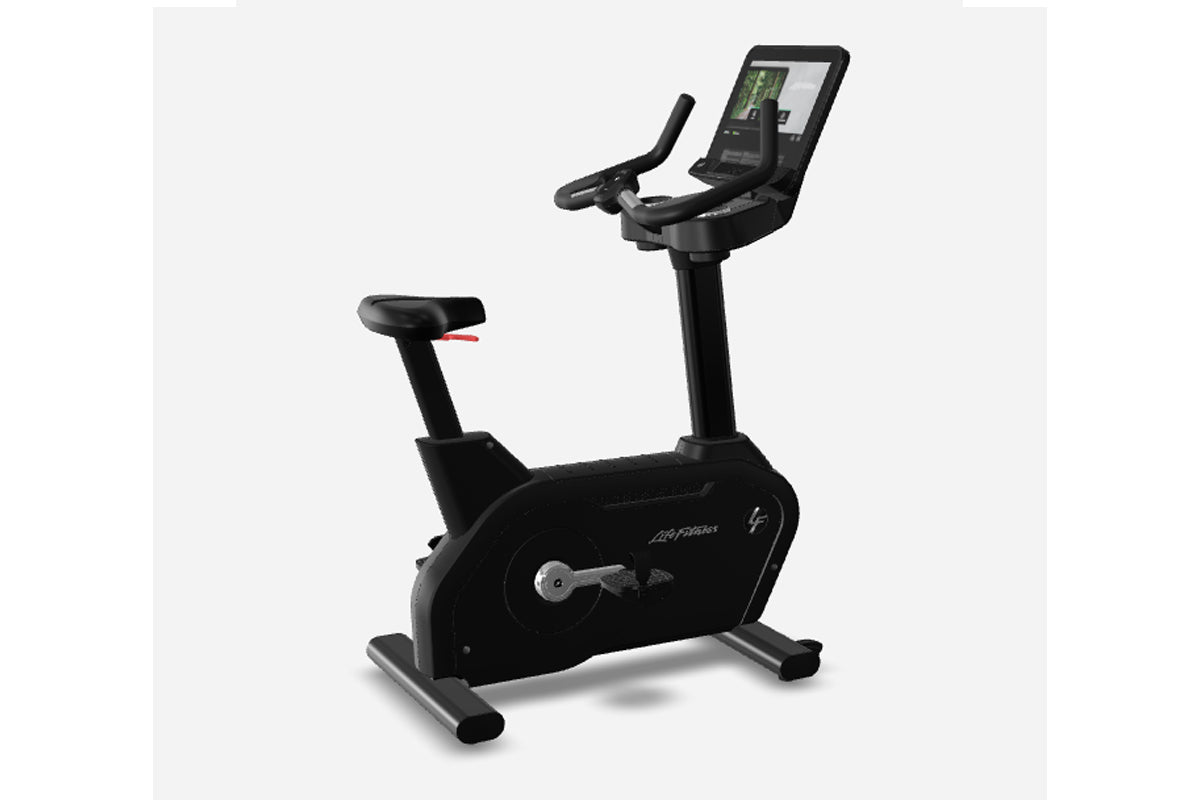

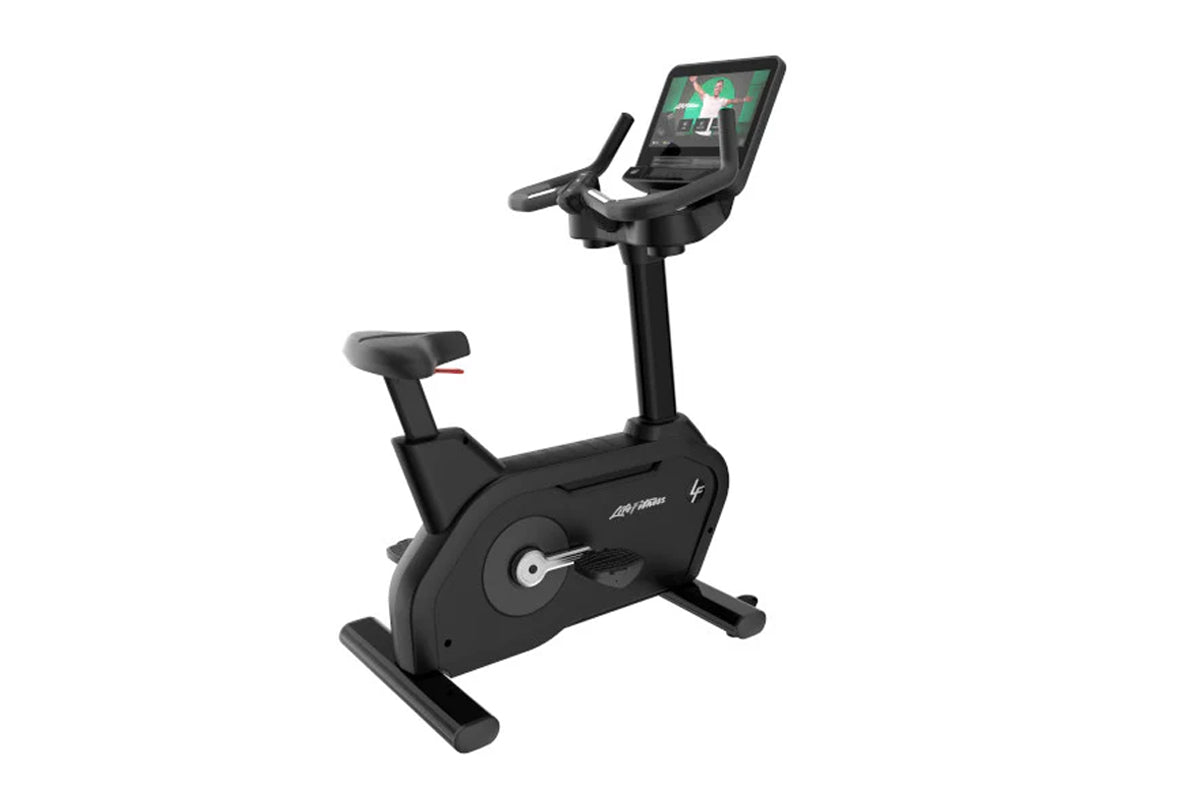

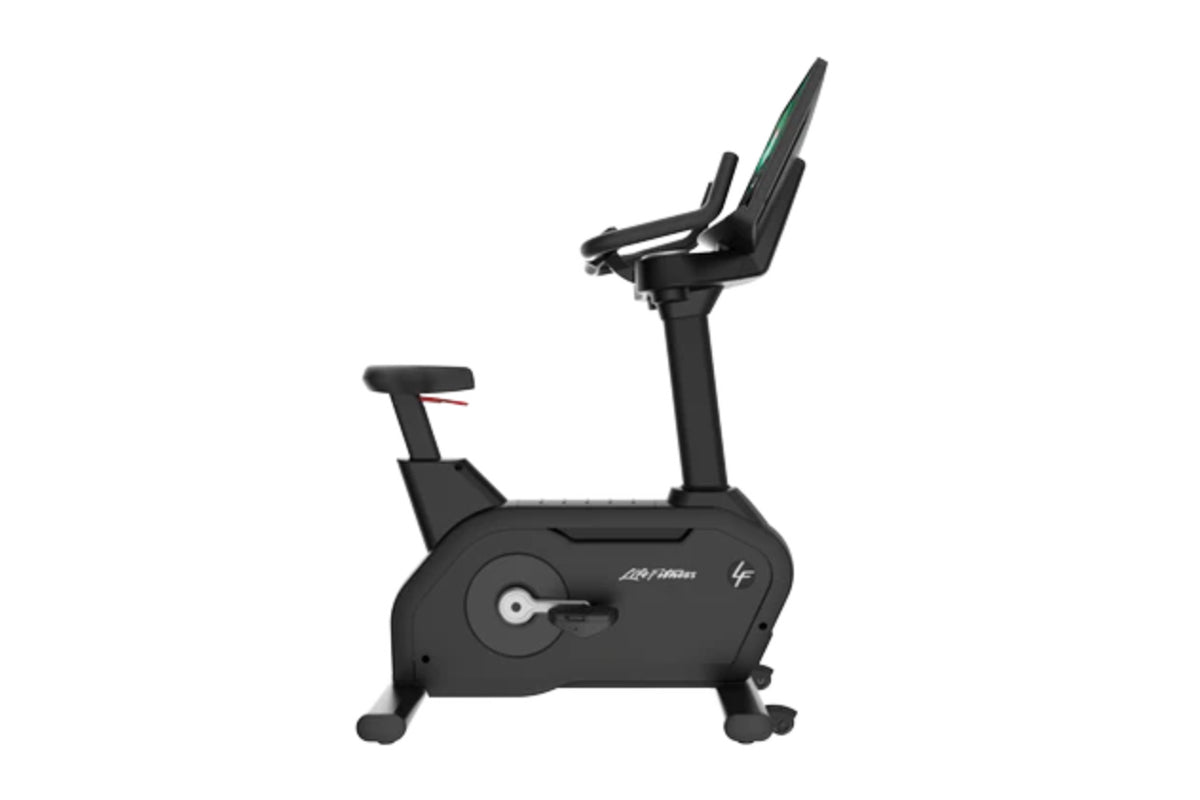

Introducing the next generation of trusted Life Fitness cardio–the Integrity+ Lifecycle® Upright Bike. Designed to elevate your facility with modern design touches that draw attention, and console choices that include the captivating Discover SE4 Console. Immersive cardio workouts are provided through easy access to entertainment and popular fitness apps. Hundreds of fitness experiences are accessible through the complimentary Life Fitness On Demand+, available on the SE4 console.
The Integrity+ Upright Bike features a comfortable seat that is ergonomically sound and can be fine-tuned for the perfect riding position. Wide, self-leveling pedals with simple buckle straps allow exercisers to get on and go. The handlebars are designed to offer cruising, hybrid, and race positions. The bike offers integrated resistance controls to make in-workout changes easy and elbow pads for added comfort. The self-powered generator system allows for a smooth and quiet ride. The inviting bike is an ideal choice for facilities seeking modern appeal and a multitude of options to create engaging experiences for a diverse range of exercisers.
Key Features
- Stylish design
- Full commercial warranty
- Fully adjustable Comfort Curve™ Seat
- 26 resistance levels
- Generator Drive System with 8-Ribbed Poly-V Belt resistance system
- 17 workouts including eight custom workouts
- Metrics easy to read on large LED display
- Seamless connectivity with wireless technology
- Sync devices via Bluetooth or NFC technology
- Description: Integrity+ Cardio Upright Bike
- Console: 16” or 24” Smart Touchscreen SE4 Console ; SL LED Console

Discover SE4 Console
Console Innovations
Introducing the Life Fitness Discover SE4 Console—a state-of-the-art console that captures the attention of exercisers, provides a multitude of immersive workout experiences and gives fitness facilities the power to create custom-branded content.
Connectivity is at the heart of Discover SE4. Exercisers can seamlessly sync a smartphone, tablet or other device using Bluetooth or NFC technology.
Through Facility Connect, you can enable access to more than 500 Life Fitness On Demand+ fitness experiences and facilities can create custom-branded content that appears on the console.

24" and 16" Discover SE4 Console
Immersive Large Screen
A large, 1080p touch screen employs cutting-edge technology for an incredibly responsive user interface. The 24” screen (also available in 16”) is both intuitive and stylish and allows users to choose the cardio experience that’s right for them.

Product Configurator
Elevate Your Facility with Integrity+
Experience ultimate customization with our configurator tool, allowing you to design equipment to fit your unique needs.

Facility Connect
Facility Connect is the ultimate solution for managing and customizing Life Fitness equipment, maximizing lifespan, personalizing experiences, and making data-driven decisions.
Key Features of Facility Connect:
- Equipment Management
- Insightful Data Analytics
- Streamlined Maintenance
- Software Update Assurance
- Enhanced Brand Empowerment
- Life Fitness on Demand+

Ergonomic Racing Handlebars

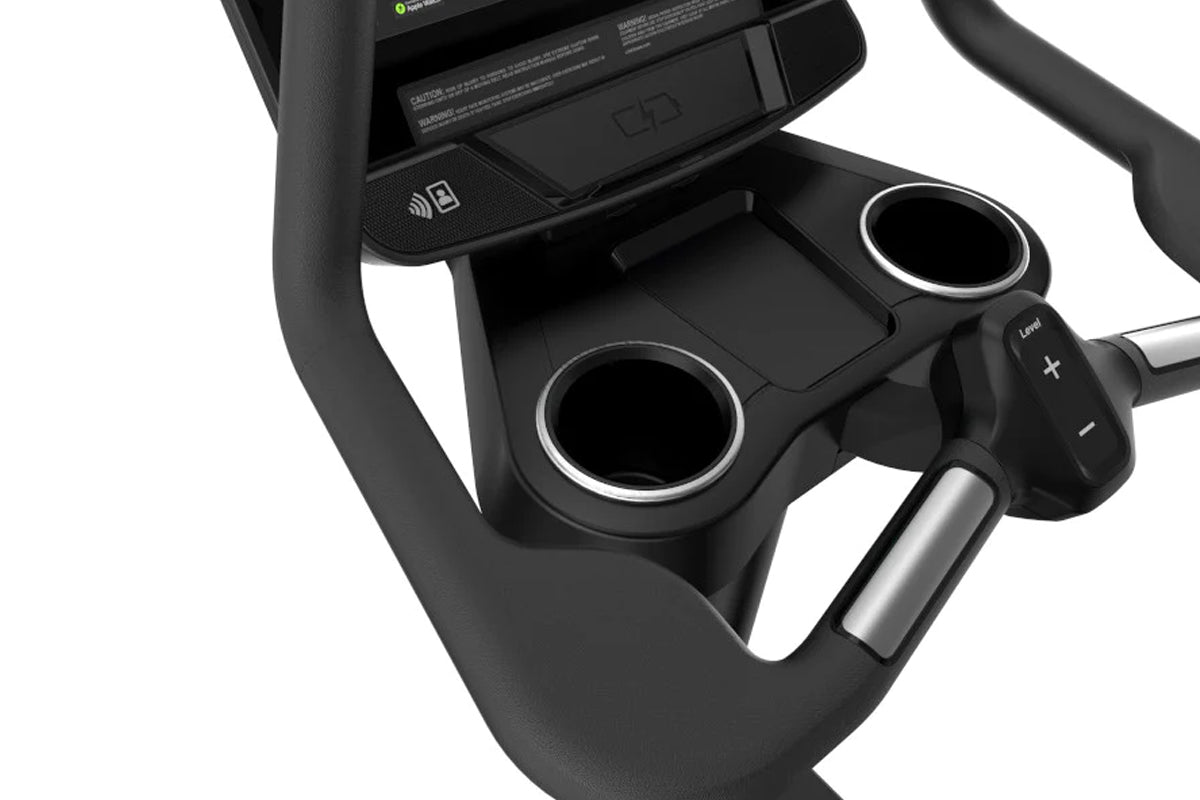

Handlebars are designed to offer cruising, hybrid and race positions. The deluxe base offers integrated resistance controls, to make in-workout changes easy, and elbow pads for added comfort.

A Comfortable Ride
Easy adjustment for a fine-tuned and ergonomically sound seat position. Wide, self-leveling pedals with simple buckle straps allow exercisers to get on and go.

SE4 Console
The SE4 Console is engineered for facilities that want to elevate their cardio floor with advanced technology, streamlined operations, and a connected fitness experience. Its immersive cardio experiences, including 1080p visuals, intuitive touchscreen interface, and seamless device connectivity create a premium experience for exercisers while giving operators greater control over content, branding, and equipment performance. Built specifically for commercial environments, the SE4 helps facilities reduce friction on the fitness floor, strengthen engagement, and support a more efficient, connected operation.
Specifications:
Cardio Series Compatibility |
All bases, except Symbio line |
Display |
24" (61 cm) and 16” (41 cm) 1080p AIT (Advanced In-Cell Touch) Screen |
Navigation |
Touchscreen |
Languages |
22 |
All Bases Display Readouts |
Speed, Incline, Heart Rate (current, average, max), Pace, Elapsed Time, Time Remaining, Time in Zone, Time of Day, Distance, Distance Climbed, Distance Remaining, Calories, Calories/HR, Watts, METs |
ANT+ |
Yes; Heartrate Straps Only |
Bluetooth® |
Yes; Headphones, Heartrate Straps, Smartphones, & Smartwatches |
Apple Watch GymKit™ Compatible |
Yes |
Samsung Galaxy Watch Compatible |
Yes |
C-SAFE |
Yes |
Ethernet (LAN) |
Yes |
Headphone Jack |
3.5mm port |
NFC |
Yes |
Polar (5KHz) |
Yes; Heartrate |
RFID |
Yes; Optional |
USB Port |
For Software Updates & Device Charging |
Wi-Fi |
Yes |
Wireless Charging (Qi) |
Yes |
Number of Workouts (base specific) |
12-25 Goal Based / 1-9 Fitness Tests |
Software Updates |
Yes; Via Life Fitness Facility Connect or USB |
Analog/Digital TV |
Yes |
Interactive Terrains |
Yes |
On Console Apps |
Yes |
On Demand Content |
Yes |
Custom Facility Product Settings |
Yes |
Custom Attract Screens |
Standard, five starting screen options for customization |
SL Console
The SL Console delivers the simplicity, reliability, and essential connectivity commercial fitness facilities need. Our durable, low-maintenance design keeps equipment running smoothly and provides a cost-effective way to modernize your space with a connected console experience that just works. For members, the familiar LED interface and intuitive navigation make it easy to get on and go, while Bluetooth®, Apple Watch®, and ANT+ compatibility offer the modern digital features today’s exercisers expect.
Specifications:
|
Cardio Series Compatibility
|
All bases, except Symbio line
|
|
Display
|
LED
|
|
Navigation
|
Membrane Buttons
|
|
Languages
|
20
|
|
Treadmill Display Readouts
|
Calories, Distance, Incline, Time Remaining / Time Elapsed, Speed, Pace / Heart Rate
|
|
Arc Trainer Display Readouts
|
SPM / Speed / Calories, Incline, Time Remaining / Time Elapsed, Level, WATTS / Distance / Heart Rate
|
|
Bikes & Cross-Trainers Display Readouts
|
RPM, MPH/KPH, Calories, Distance, Time Remaining / Time Elapsed, Level, Watts, Heart Rate
|
|
PowerMill Display Readouts
|
Feet Climbed / Total Steps / Calories, SPM, Time Remaining / Time Elapsed, Level, Floors Climbed / Heart Rate
|
|
ANT+
|
Yes, Heart Rate Straps Only
|
|
Bluetooth®
|
Yes; Headphones, Heartrate Straps, Smartphones, & Smartwatches
|
|
Apple Watch GymKit™ Compatible
|
Yes
|
|
Samsung Galaxy Watch Compatible
|
No
|
|
C-SAFE
|
Yes
|
|
Ethernet (LAN)
|
No
|
|
Headphone Jack
|
3.5mm port
|
|
NFC
|
Yes
|
|
Polar (5KHz)
|
Yes; Heartrate
|
|
RFID
|
No
|
|
USB Port
|
For Software Updates & Device Charging
|
|
Wi-Fi
|
Yes
|
|
Wireless Charging (Qi)
|
No
|
|
Number of Workouts (base specific)
|
13-15 Goal Based / 1-9 Fitness Tests
|
|
Software Updates
|
Yes, via Life Fitness Facility Connect or USB
|
|
Analog/Digital TV
|
Optional Attachable TV
|
|
Interactive Terrains
|
No
|
|
On Console Apps
|
No
|
|
On Demand Content
|
No
|
|
Custom Facility Product Settings
|
Yes
|
|
Custom Attract Screens
|
No
|
Description |
Integrity+ Cardio Upright Bike |
Console |
16” or 24” Smart Touchscreen SE4 Console ; SL LED Console |
Handlebars |
Ergonomic racing with elbow rest |
Quick Controls |
Yes - Center of handlebar |
Saddle |
Improved Comfort Curve™ Seat |
Pedals |
Self-Leveling Wide Ride™ Pedals |
Pedal size |
6.56" x 5.5" (16.7 cm x 14 cm) |
Pedal Straps |
Yes |
Accessories Holder |
Integrated Accessory Tray |
Color Options |
Diamond White, Arctic Silver, Titanium Storm, Smooth Charcoal, Black Onyx |
Seat |
Improved Comfort Curve™ Seat with 42 Fine-Tuned Seat Adjustments with 1-Touch lever |
Step-over height |
21.14" (536.9mm) |
User Height Range |
4'9" - 6'5" |
Max User Weight |
400 lb (182 kg) |
Transport Wheels |
Yes |
Drive System |
Generator Drive System with 8-Ribbed Poly-V Belt resistance system |
Resistance Levels |
26 |
Resistance Type |
Hybrid Eddy current brake with brushless internal generator for low drag and high power capability |
Belt Drive |
Single stage drive with self-tensioning idlers for minimal mechanical drag and low maintenance |
Multi Ribbed Belt Drive |
Yes |
Generator |
Generator |
Riding Variety |
In-saddle only |
Crank size |
165mm (6.5") |
Touch |
Yes |
Telemetry |
Yes |
Self-powered |
SL Console only |
Power Requirements |
120V, 20A or 230V, 10A (varies by country) outlet Required for Attachable TV and Discover Consoles |
Minimum Watts |
29 Watts |
Maximum Watts |
900 Watts |
Minimum RPM |
30 rpm |
Dimensions (L x W x H) |
41.5" x 24.5" x 54.5" (105 x 62 x 138 cm) |
Assembled Weight |
169lbs (76.5kg) |
Shipping Weight |
200lbs (91kg) |
Shipping Configurations (for non-installed purchases) (L x W x H) |
63" x 27" x 39" (160.02 cm x 68.58 cm x 99.06 cm) |
