The ultimate Precor elliptical, the Experience™ Series 800 Line features our patented converging CrossRamp® technology that follows your natural stride. Just imagine, when you walk, your feet converge toward the midline of your body, instead of staying in line with your hips. This converging motion is replicated in our 800 Line ellipticals and is featured in fitness centers, universities, and hotels across the world. Similar to our 200, 400, and 600 Lines of home and commercial ellipticals, you can isolate or cross-train specific lower body muscle groups simply by adjusting the angle of the ramp, making it easy to target different muscle groups, to encourage training variance, and propel results.
The 800 Line of elliptical exercise machines includes the EFX 833, EFX 835, EFX 863, EFX 865, EFX 883, and EFX 885. In this line, you can choose between fixed or moving arms and your choice of consoles (P30, P62, or P82). Available in a Black Pearl frame. If you’re looking for the best elliptical machine available, look no further than Precor EFX 800 Line.

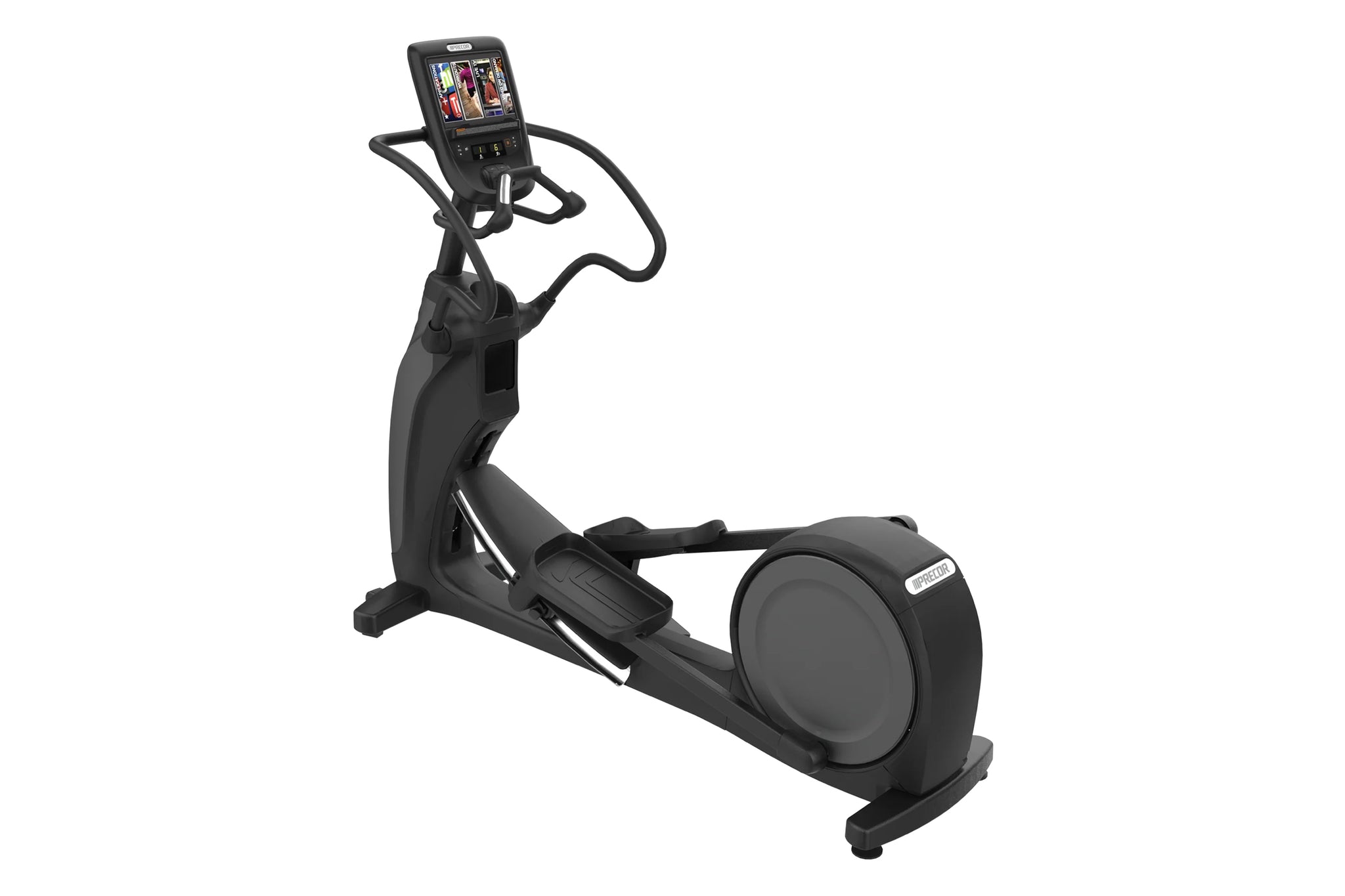

The EFX® 863 with Converging CrossRamp® combines reliability with a natural converging stride path to give you the perfect elliptical for your facility. Carrying on the tradition of Precor reliability and service, the EFX is easy to clean and maintain with a covered ramp and rear drive housing, and the Active Status Light - all to improve your ownership experience. For exercisers, the EFX 863 combines the benefits of our patented CrossRamp® technology and fixed handlebars for a lower body workout. The adjustable CrossRamp® technology offers ramp inclines from 10 to 35 degrees to target different muscle groups for more workout variety. And, our unique converging stride path allows the exerciser's footpath to converge naturally - just like walking or running.
Product Features
- P62 Touchscreen Console The P62 console provides a personalized viewing experience, remarkable TV clarity, and internet options that exercisers crave, all in a 10" screen. With the ability to "favorite" selections for the future, exercisers can customize their workout experience based on what is important to them.
- Converging CrossRamp® Technology Our patented elliptical path follows a natural running stride with a movement that allows the user’s feet to converge toward the midline of their body. Users can isolate or crosstrain specific lower body muscle groups simply by adjusting the angle of the ramp, making it easy to target different muscle groups, encourage training variance, and propel results. Our patented elliptical path follows a natural running stride with a movement that allows the user’s feet to converge toward the midline of their body.
- Fixed Handlebars Fixed handlebars allow users to focus on lower body workouts at higher resistance levels or challenge stabilizers during hands-free training.
Designed for You
Enjoy a wide range of zero-impact cross-training options with Converging CrossRamp® technology, a revolutionary biomechanical breakthrough that enables a natural walking and running motion while you are exercising to reduce the wear and tear on your body.
Continuous Innovation
Precor designed the first elliptical machine for the commercial market in 1995, and it’s become the best-selling elliptical in the world. Found in high-end gyms and five-star resorts everywhere, the Precor EFX 800 is built right here in the USA.

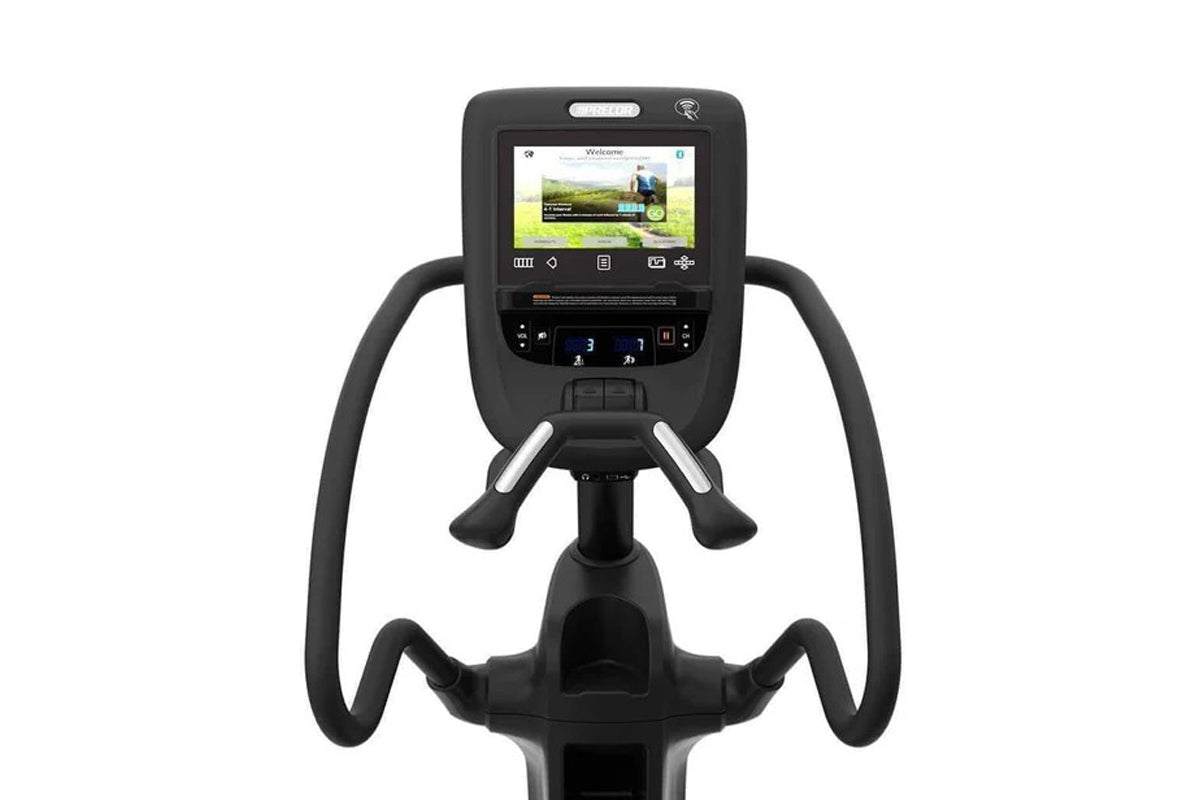

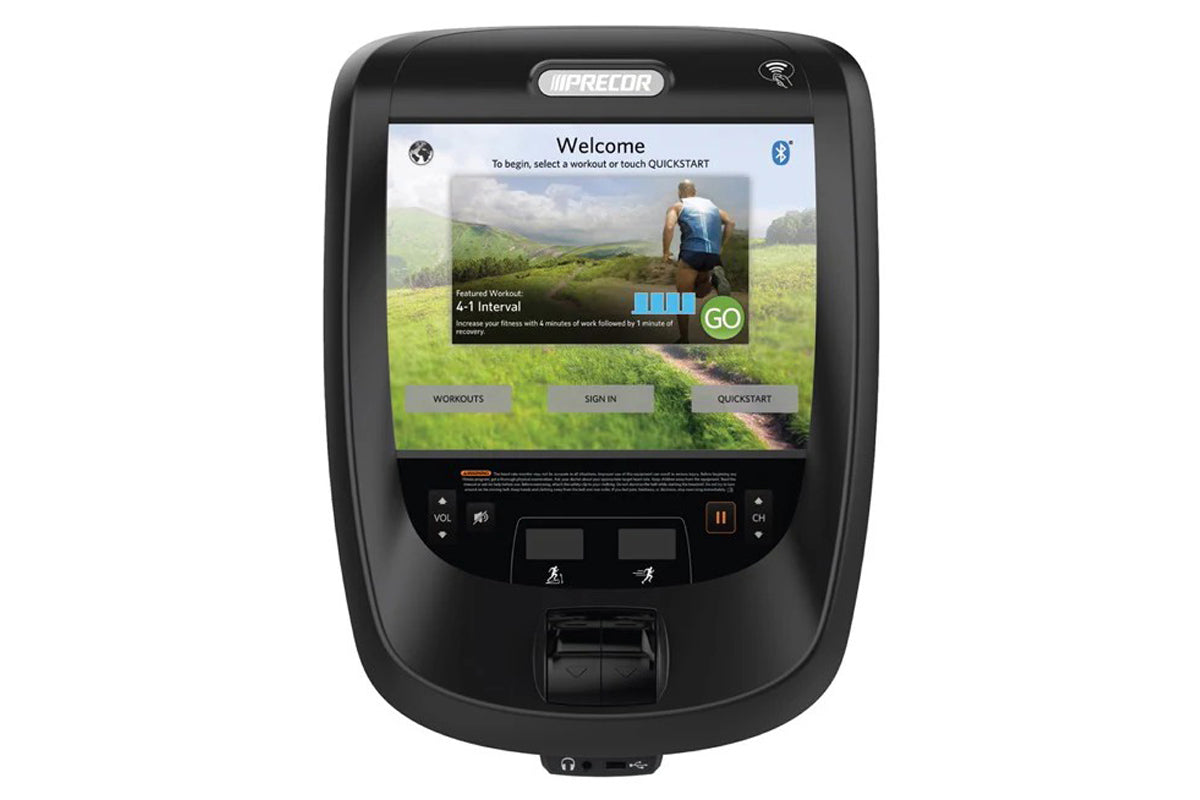

P62 Console
Same media goodness as the P82 with a more compact 10” built-in touch screen. The feel-good design makes it easy to adjust your workout or entertainment on-the-fly.
P62 Console
Product Highlights
The EFX® 863 with Converging CrossRamp® combines essential reliability and ease-of-use with a natural, low-impact stride to add value to your facility. Design enhancements ensure easy cleaning and maintenance for you, while the unique adjustable Converging CrossRamp® technology and fixed handlebars deliver a comfortable lower body workout for your exercisers.
Features
- Handlebars Fixed handlebars allow exercisers to focus on lower body workouts at higher resistance levels or challenge muscle stabilisers during hands-free training.
- P62 Console The P62 console features personalised viewing and the remarkable clarity of TV and internet options that exercisers crave, all in a 10 in / 25.4 cm screen. With the ability to “favourite” selections for the future, exercisers can customise their workout experience based on what’s important to them.
- Converging CrossRamp® Patented converging footpath design and incline adjustments between 10 - 35 degrees, along with 20 levels of resistance, give exercisers a challenging workout with a more natural feeling stride.
- Covered Rear Drive Housing Experience easy maintenance with the covered ramp and rear drive housing that enable quick access for cleaning.
- Active Status Light Alerts staff at a glance when the EFX needs maintenance or service.
Specifications
|
Dimensions (L x W x H)
|
80 x 28 x 72 in / 203 x 71 x 183 cm
|
| Equipment Weight |
340 lb / 154 kg |
| Step-up Height |
8 in / 20 cm (pedal at lowest point) |
| Power |
120 volt, 15 amp circuit |
| Total Workouts | 22 |
| Resistance Levels | 20 |
| Ramp Angle | 10-35 degrees |
| Language | English, Danish, Dutch, French, Finnish, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish |
| Network Capabilities | Preva® network capable |
| Entertainment | 10 in / 25.4 cm LCD Capacitive Touch Screen Mobile Device Charger and Audio Jack |
| Accessories | Integrated Reading Rack Optional - Cable Management |
Equipment Features
Water Bottle and Accessories Holder | Thoughtful, secure storage with a logical, clean place for your water bottle, cell phone, and other accessories. |
| Covers | Long-lasting appearance with covered ramp, enclosed rear covers, and covered frame and pivot joints. Covered ramp to prevent dirt and debris build-up. Easy to clean without removing the ramp cover or pedals. The rear access cover can be removed and replaced in less than 2 minutes by removing only two screws. Convenient access to check and adjust drive belt tension. Front covers can be removed in less than 2 minutes, providing quick access to the lift assembly. |
| Transport Wheels | Wide transport wheels in the front of the EFX® allow the unit to be moved when cleaning the floor. |
| Bearings. | Dual, in-line polyurethane wheels with oversized axles and premium sealed bearings provide a perfectly balanced load, gliding on stamped, stainless steel tracks for an incredibly smooth feel. |
| Foot Pedals | Oversized, polypropylene foot pedals fit your largest user and are easy to clean. |
| Ramp | Converging Adjustable CrossRamp® |
| Biomechanics | Biomechanics validated by Western Washington University for users of all ages, fitness levels, and sizes, from the 5% size female to the 95% size male user. |
| Ramp Angle | 10 to 35 |
| Upper Body Handlebars | Fixed handlebars |
| CrossRamp® Technology | Provides 20 different settings (10-35 degree ramp incline) for users to target different muscle groups. Ideal for all age and fitness levels. |
Resistance System
Minimum Watts | 18 |
Maximum Watts | 720 |
Resistance System | Durable, 3-phase hybrid generator / eddy current system with new, faster controller provides 20 levels to tailor workouts with consistent, smooth resistance. The 20 resistance levels range from 18 watts (level 1 at 40 SPM) to 720 watts (level 20 at 200 SPM). |
Resistance Levels | 1-20 |
Console Features
Numeric Keypad | Yes, in software |
Motion Controls | Yes - Resistance and Incline |
Tactile Dome Keys | Vol up/down, mute, Channel up/down, pause workout |
QuickStart™ | Yes |
Console Language(s) | English, Chinese, Danish, Dutch, French, Finnish, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish |
| Units Selection | Metric or U.S. Standard |
| Maximum Workout Time | 120 minutes (60 default) |
| Maximum Pause Time (Pause) | 300 seconds (120 default) |
| Electronic Readouts | Key Panel: Resistance Incline User Interface: Total Distance, Distance Remaining, Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts Time Elapsed, Time Remaining, Segment Time Strides/Min, Avg Strides/Min, Total Strides Heart Rate, Average Heart Rate, Max Heart Rate |
| Featured Workout of the Day | Yes |
| Video Decoding | MPEG-2, MPEG-4, H.264 |
| Console Type | 10.1 in / 25.7 cm LCD Capacitive Touch Screen |
| Preset Programs | Lose Weight 4-3 Interval Aerobic Aerobic Plus Fat Burner Heart Rate Zone Be Fit Manual 1:1 Interval 2:1 Interval 4:1 Interval Total Body Interval Rolling Hills Mountain Peaks Heart Rate Zone Get Toned Glute Toner Glute Toner Plus Leg Sculpt Leg Sculpt Plus Push Performance 1-4 Interval 1-2 Interval 5K Heart Rate Zone Test Your Fitness Fitness Test |
Network Capabilities
| Ethernet | 10/100/1000 Base-T |
| Diagnostics | Ability to pull log files, set club parameters, e.g. limit exercise time, set default language, and pause time. |
| Wifi | 802.11 a/b/g/n, 2.4 GHz MIMO, and 5 GHz multiple antenna operation |
Heart Rate Monitoring
| Touch | Handheld heart rate sensors located on fixed handlebars for increased accuracy and ease-of-use by users of all sizes. |
| Telemetry | Equipped for heart rate telemetry reading using a chest strap. |
| Heart Rate Sensor Advisory | The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease the accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Frequently Asked Questions. |
Integrated Entertainment Options
| Closed Captioning | Yes, CC1-4, Text 1-4 (North America only) |
| Video decoding | MPEG-2, MPEG-4, H.264 |
| Global TV Support | Integrated tuner - NTSC, ATSC, PAL, SECAM, DVB-T/T2/C |
| Mobile Device Charger | Yes |
| Reading Rack | Standard |
| Personal Viewing System (PVS) | Integrated |
| Personal Viewing Screen (PVS) (Specification) | 10.1 in / 25.7 cm LCD Capacitive Touch Screen Supports NSTB, PAK, PAL BG Standards, Closed Caption |
| Video inputs | RF, HDMI (media adapter only - future) |
Equipment Specifications
| Stride Length at Minimum Incline (inches / cm) | 21 inches / 54 cm |
| Stride Length at Maximum Incline (inches / cm) | 25 inches / 63 cm |
| Maximum User Weight | 350 lbs / 159 kg |
| Minimum Space Between Foot Pedals (inches / cm) | 1.5 inches / 3.8 cm |
| Foot Pedal Dimensions (inches / cm) | 16 x 8 inches / 40.6 x 20.3 cm |
| Step-up Height (footplate at lowest position) | 8 inches / 20 cm |
| Standard Frame Colours | Black Pearl |
Equipment Dimensions and Weight
| Length | 80 inches / 203 cm |
| Width | 30 inches / 76 cm |
| Equipment Weight | 340 lbs / 154 kg |
| Height | 72 inches / 183 cm |
Shipping Dimensions and Weight
| Length | 85 inches / 216 cm |
| Width | 30.75 inches / 78 cm |
| Height | 28.125 inches / 71.4 cm |
| Shipping Weight | 396 lbs / 180 kg |
Power Requirements
| Equipment | Powered |
| International 240 VAC | Applicable country-specific power cord |
| U.S. & Canada 240 VAC | 220V-240V/15A circuit with 5-15R NEMA receptacle |
| U.S. & Canada 120 VAC | 120V/15A circuit with 5-15R NEMA receptacle |
| Cord Length | 12 feet / 3.7 meters |
Regulatory
| cTUVus | Yes |
| IEC CB | Yes |
| FCC | Yes |
| ETL | Yes |
| CE | Yes |
| EN957 | Yes |
| ASTM | Yes |
Commercial Warranty:
|
Frame and welds
|
7 Years
|
|
Parts
|
3 Years
|
|
Labor
|
1 Year
|
Residential Warranty:
|
Parts
|
10 Years
|
|
Console
|
3 Years•
|
|
Labor
|
1 Year
|
|
Frame
|
Lifetime
|
